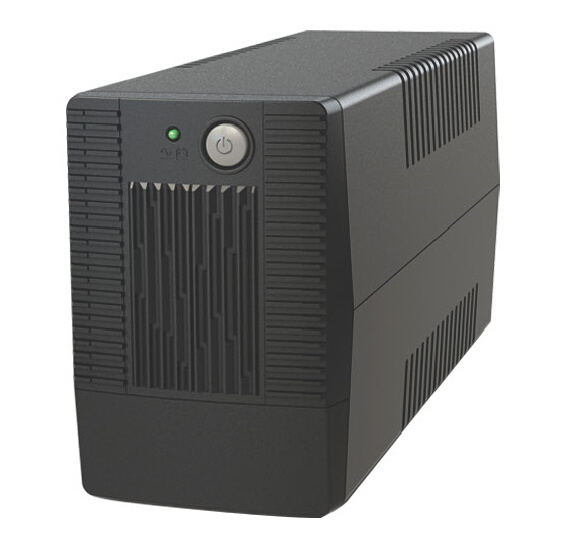

Manufacturer 800va Power Source UPS
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
UPS-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Welcome |
| Frequency: |
50Hz/60V |
| Input Voltage: |
110V/220V |
| Certificate: |
CE |
| Warranty: |
1 Year |
| Wattage: |
480W |
| Weight: |
4.9kg |
| Size: |
279X101X142mm |
| Color: |
Black |
| Multi-Protection: |
Yes |
| Phase: |
Single Phase |
| Protection: |
Short Circuit |
| Brand: |
Doxin |
| Type: |
off Line |
Product Description
Manufacturer 800VA power source UPS
The off-line UPS is in standby status with batteries being charged in normal AC time. When the power supply unexpectedly shuts down, the built-in inverter will in no time convert the battery output into AC to keep stable power supply. The UPS is generally considered high rate, low noise while running and cost-effective, mostly used in comparably stable environment with a small fluctuation of utility power and lower requirement of power supply quality.
The UPS now is widely used in protection of PC in government offices, education institutes and SMEs.
Model |
UPS-400 |
UPS- 600 |
UPS- 800 |
Capacity |
400 VA / 240 W |
600 VA / 360 W |
800 VA / 480 W |
INPUT |
Voltage |
110/120 VAC or 220/230/240 VAC |
Voltage Range |
81-145 VAC / 162-290 VAC |
Frequency Range |
60/50 Hz (auto sensing) |
OUTPUT |
Frequency Range
(Batt. Mode) |
± 10% |
Waveform (Batt. Mode) |
50 Hz or 60 Hz ± 1 Hz |
Transfer Time |
Typical 2-8 ms |
AC Voltage Regulation |
Simulated Sine Wave |
BATTERY |
Battery Type & Number |
12 V/4Ah x 1 |
12 V/7 Ah x 1 |
12 V/9 Ah x 1 |
Typical Recharge Time |
4 hours up to 90% capacity |
PROTECTION |
Full Protection |
Overload, discharge, and overcharge protection |
INDICATORS |
AC Mode |
Green lighting |
Battery Mode |
Green Flashing |
ALARM |
Battery Mode |
Sounding every 10 seconds |
Low Battery |
Sounding every second |
Overload |
Sounding every 0.5 second |
Fault |
Continuously sounding |
PHYSICAL |
Dimension,
D x W x H (mm) |
279 x101 x142 |
Net Weight (kgs) |
2.85 |
3.55 |
4.9 |
ENVIRONMENT |
Humidity |
0-90 % RH @ 0- 40°C (non-condensing) |
Noise Level |
Less than 40dB |
* Product specifications are subject to change without further notice
