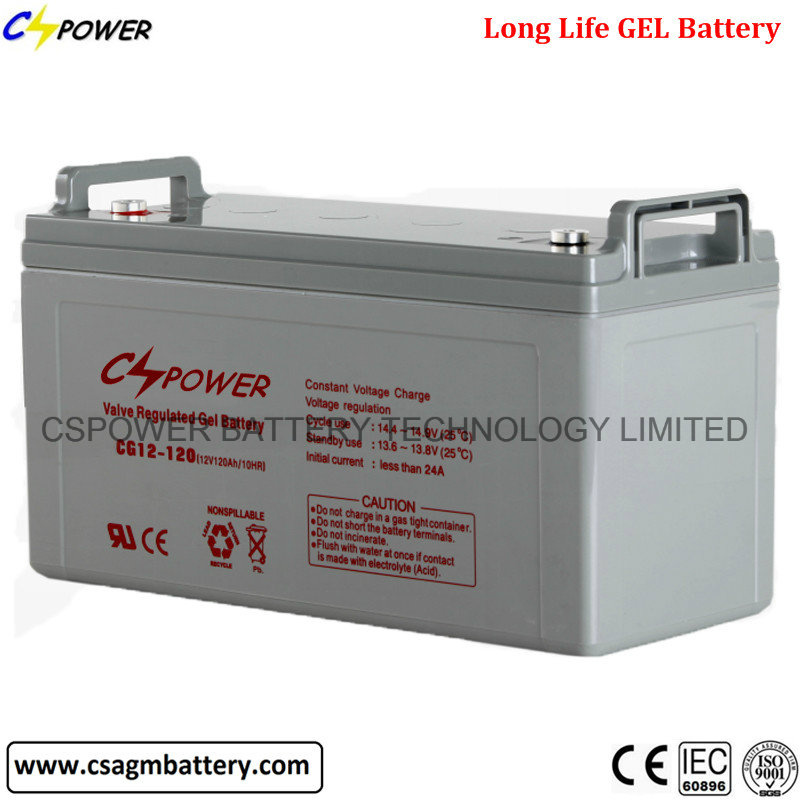

Manufacturer Deep Cycle Gel Battery 12V120ah for Solar Power System

Prod Model:	Deep cycle Gel battery 12v120ah
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Deep Cycle Gel Battery 12V120ah
Size:	405*173*210mm
Weight:	33.5kg
Warranty:	3 Years
Delivery Days:	10-15 Days
Color:	Black
Capacity:	120ah
Brand:	Cspower/OEM
Certificate:	CE, ISO, IEC
Lifespan:	15-20 Years
Type:	Lead-Acid Batteries
Usage:	Wind and Solar System
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Deep Cycle Gel Battery 12V120ah

Product Description

Product Description

Manufacturer Deep Cycle Gel Battery 12V120ah for Solar power System

Solar Gel Battery Gel series Detailed Product Description

Gel battery Solar Gel Battery shows some distinctive advantages over flooded battery or AGM battery,
Such as super thermal stability, high deep discharge capability, good recovery from deep discharge, even if the Gel battery is left discharged for three days, it will recover to 100% of capacity.
With the above-mentioned advantages, the gel battery has long service life, specially suitable for motive power applications, such as golf trailer, sruubber, folklift, etc. The deep discharge cycles increased 50% as compared with the AGM battery.

Manufacturer Deep cycle Gel battery 12v120ah for solar power system Characteristics

1. Gel Battery Sealed free maintenance deep cycle Gel battery 12V100Ah 200Ah 250Ah 300Ah
2. GEL solar battery
3. OEM/ODM free charge
4. Warranty 3years free replacement

Manufacturer Deep cycle Gel battery 12v120ah for solar power system Advanced Features
Deep cycle Solar Gel Battery 12V300ah for solar power system
1. Environmentally friendly
2. Completely Maintenance-Free
3. Non-Spillable construction design.
4. Wide Operating Temperature Range(-20° C~+60° C)
5. Longer Life(20years designed life)
6. Explosion Proof
7. Valve Regulated & High Discharge Rate Capability
8. Low Self Discharge
9. Independent of Position
10. Ease of Shipment
11. No need of balanced charge or boost
12. No Memory

Manufacturer Deep cycle Gel battery 12v120ah for solar power system
Applicition
Deep cycle Solar Gel Battery 12V300ah for solar power systemDeep cycle Solar Gel Battery 12V300ah for solar power system
1, Solar & Wind power systems
2, Fire & security systems
3, Uninterruptible power supplies
4, Golf cart, Electric vehicle
5, Electric powered bicycle and wheelchairs
6, Marine equipment
7, Communication equipment
8, Power tools
9, Telecommunication systems

Manufacturer Deep cycle Gel battery 12v120ah for solar power system
Terms Details

Payment Terms: T/T
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen
Lead Time: 10-15 ays
Product Certificate: CE, ISO, UL, IEC

CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Car battery, Motorcycle battery, Telecom Front terminal battery; The GEL Battery is Solar Gel electrolyte battery and OPzV Battery, longer life span 15-25years mainly for solar and wind power system.

Welcome to ask me for price reference on specific models and quantity of batteries at any time.
We are sure any your question will get our prompt reply in 24 hours: )

OUR BATTERY MATERIAL ADVANTAGES:
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
2) 99.99% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.


Manufacturer Deep Cycle Gel Battery 12V120ah for Solar power System

Model NO.	Nominal Voltage (V)	Rated Capacity(AH) 20hrs/25	Approx. Weight		Dimensions(mm)								Terminal Type
			kg	lbs	Length		Width		Height		Total Height
					mm	inch	mm	inch	mm	inch	mm	inch
CG12-33	12	33	10.4	22.9	196	7.70	131	5.16	155	6.10	170	6.69	T9/T16
CG12-38	12	38	12.2	26.84	197	7.73	166	6.54	174	6.85	181	7.13	T12
CG12-50	12	50	16.2	35.6	230	9.06	138	5.43	211	8.30	229	9.01	T9/T16
CG12-55	12	55	16.2	35.6	230	9.06	138	5.43	211	8.30	229	9.01	T9/T16
CG12-65	12	65	20,5	45.1	350	13.8	166	6.54	179	7.05	179	7.05	T9
CG12-70	12	70	22.0	48.4	260	10.2	169	6.65	211	8.30	215	8.46	T16
CG12-80	12	80	23.4	51.5	260	10.2	169	6.65	211	8.3	229	9.02	T14
CG12-85	12	85	29	64.10	307	12.08	169	6.65	211	8.3	234	9.21	T16A/T8
CG12-100	12	100	30	66	331	13.0	173	6.81	213	8.39	233	9.17	T10
CG12-120	12	120	36.5	80.3	407	16.0	174	6.85	209	8.23	233	9.17	T11
CG12-134	12	134	41	90.2	341	13.43	173	6.81	283	11.14	283	11.14	T9/T20
CG12-150	12	150	42.5	93.5	484	19.1	171	6.73	241	9.49	241	9.49	T11
CG12-180	12	180	56.5	124	530	20.9	209	8.23	214	8.43	240	9.45	T9
CG12-200	12	200	60	132	522	20.57	240	9.45	216	8.50	240	9.45	T11
CG12-230	12	230	64	140.8	522	20.6	240	9.45	216	8.50	240	9.45	T9
CG12-250	12	250	68	150	520	20.5	268	10.55	220	8.66	243	9.57	T11
CG2-100	2	100	6.4	14.11	171	6.73	72	2.83	206	8.11	227	8.94	T16
CG2-150	2	150	9.0	19.8	172	6.77	102	4.02	207	8.15	227	8.94	T6
CG2-200	2	200	14	30.9	172	6.77	111	4.37	329	13.0	356	14.0	T20
CG2-300	2	300	20.5	45.2	171	6.70	151	5.94	330	13.0	366	14.4	T20
CG2-400	2	400	27.5	60.6	210	8.27	176	6.93	329	13.0	366	14.4	T20
CG2-500	2	500	33.5	73.9	241	9.5	172	6.8	331	13.0	366	14.4	T20
CG2-600	2	600	41	90.4	301	11.9	175	6.89	331	13.0	366	14.4	T20
CG2-800	2	800	55	121.3	411	16.1	175	6.89	330	13	356	14	T20
CG2-1000	2	1000	66.5	146.6	475	18.7	175	6.89	330	12.99	356	14.02	T20
CG2-1500	2	1500	103.5	228.2	401	15.8	351	13.8	342	13.5	369	14.5	T20
CG2-2000	2	2000	136	299.8	491	19.3	351	13.8	343	13.5	369	14.5	T20
CG2-3000	2	3000	195	429	710	28.0	352	13.9	342	13.5	369	14.5	T20

CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, OPzV Battery, Car/Auto Batteries, Motorcycle Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.

Located in a world-class, modern industrial park of 100, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.

CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Car battery, Motorcycle battery, Telecom Front terminal battery; The GEL Battery is Solar Gel electrolyte battery, OPzV battery, longer life span 15-25years mainly for solar and wind power system.

With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, CE authentication of the European Union, RoHS, ISO9001, and TLC certificates in China.

In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
