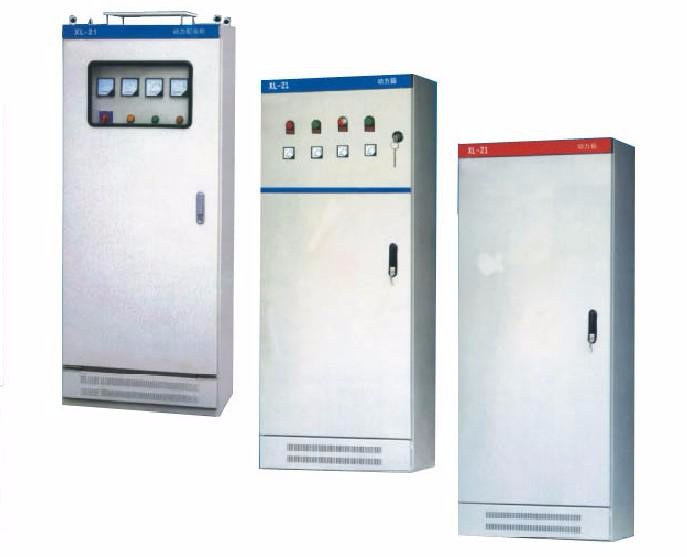

Product DescriptionManufacturer Electrical Equipment GGD Low-Voltage Power Switchgear
Application
GGD-type low voltage fixed-mounted switchgear assembly is applicable to the power users, such as power plants, substations, industrial and mining enterprises etc. with AC 50Hz, rated operating voltage 380V, rated current up to 3150A power distribution system as a driving force, conversion of electrical energy for lighting and power distribution equipment as well as the purposes of distribution and control. The product has high breaking capacity. The rated short-time withstand current is up to 50KA, with the characteristics of flexible line scheme, convenient combination, strong practicality, novel structure and so on. The product is one of our assembly type fixed panel switchgears in China.
Standard for low voltage sf6 ring main unit switchgearThis product complies with the Standards:
- GB7251 Low-voltage Switchgear Assembly and Control Equipment,
- IEC 60439 Low - voltage Switchgear Assembly and Control Equipment.
Features
1. Metal-enclosed and separately arranged, with high protection Category
2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces
3. Protection Category of enclosure reaches to IP4X,
4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining
| No. | Item | Unit | Parameters |
| 1 | rated voltage | V | 380 |
| 2 | rated frequency | Hz | 50 |
| 3 | size: | MM | 800/1000X600/1000X2200 |
| 4 | material: | type | stainless steel304 |
| 5 | Short time withstand current rating | KA | 50,80 |
| 6 | Earthing switch peak withstand rated current | KA | 105,176 |
| 7 | Protection grades | IP | IP30 |
| 8 | rated current | A | ≤ 4000 |
| 9 | Rated short-circuit duration | sec | 4 |
Our Company

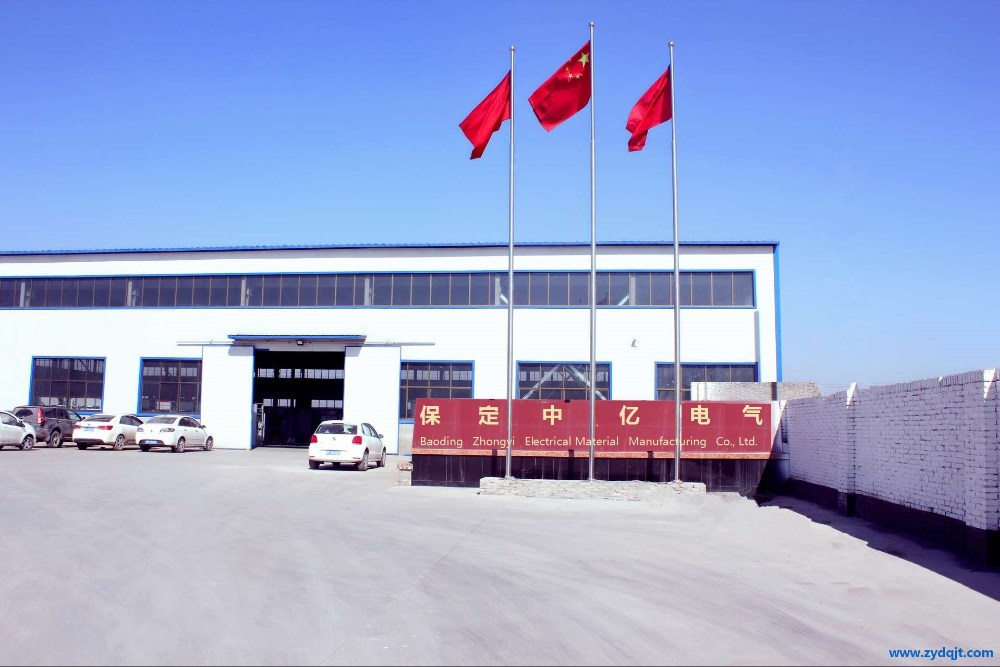

Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.Certifications
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
