| Prod Model: |
GPS Vehicle Tracking device tk103a |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
FCC Ce Coban GPS Tracker |
| Network: |
GSM/GPRS |
| Application: |
Vehicle/Motorcycle/Truck Auto GPS Tracking |
| Main Functions For Vehicle: |
Acc, Door, Sensor, Movement Alarm |
| Anti Theft Car Security: |
Engine Shut Remotely |
| Remote Controller: |
Optional |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months Coban GPS Tracker |
| Dual GPRS Communication: |
TCP UDP GPRS Protocol |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Brand: |
Coban GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description
manufacturer GPS Vehicle Tracking Device with Real Time google mapping1. SOS emergency/alarm function
2. Tracking via GSM or GPRS
3. Low price and fast deliver
Summarize:Working based on existing GSM/GPRS network and GPS satellites, this product can locate can monitor any remote targets by SMS or internet service platform
Features:Support non-Server based location
Location memorization
Auto location report
Authorize/delete the tracking phone number
Covert alert& voice surveillance
Geofence: Alert in case of braching the predefined district
Movement alert: Alert in case of movement
Speed alert: Alter in case of excess of the predefined speed
Power alert
Applications:Vehicle rental/Fleet management ect
Basic functions:
1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or SMS comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14,
Engine -cut and restore alarm by SMS GPRS16, Movement alert sensor

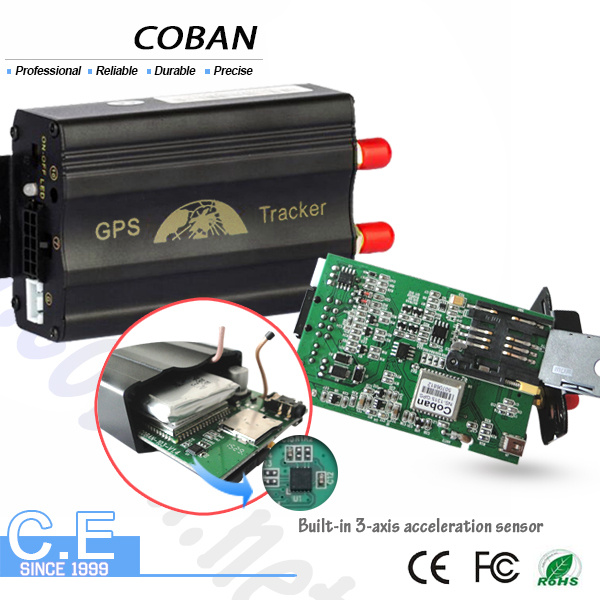

19. Optional shock/impact sensor
20. Abosolute street function
Special for car (12V-24V)
Support cut power and oil function from long distance
Supporting SMS remote reboot and reset button to restart
Support text geographic information searching
Supporting SMS with Google map track (SMS)
Support tracking (GPRS)
Support time and voice tracking
Support electronic fence, shift, speeding and low electric alarm
Support SOS emergency/alarm function
Free computer installed version tracking software
Packaging & DeliveryPackaging Detail: Standard packing
Delivery Detail: Within1-3 business days after your payment is confirmed
Tracking solutions-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking
-Web server online tracking. Capable of monitor 10,000 objects
GPS Vehicle Tracking device with real time tracking Specification| Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
Warranty1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
quality A gps tracker for car
hot selling manufacturer price vehicle gps tracker with engine shut ,fuel monitor
