| Prod Model: |
Z900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
0.4kw~160kw |
| Type: |
AC-DC-AC |
| Payment: |
L/C T/T Western Union |
| Output Frequency: |
0.01~400Hz |
| Input Voltage: |
200V-240V, 380V-440V |
| Output Current: |
1.6A-11A |
| Weight: |
Within 2kgs |
| Delivery Time: |
2 Weeks |
| Many Machine Lines And Output Is 10000se: |
Customized Specification Is Accepted. |
| MOQ: |
1PC |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
Product Description

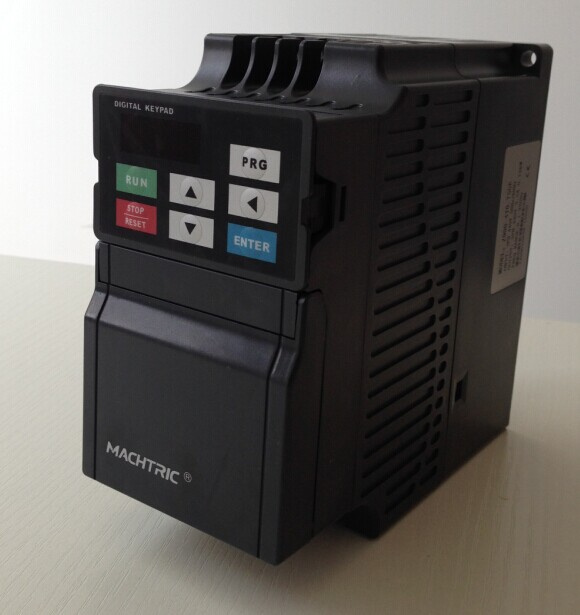

Z900E Series-Mini Inverter
Keywords:
AC frequency inverter, Variable frequency drive, AC drives
Variable Frequency Drive / Variable Speed Drive / frequency converter / AC converter
Frequency Inverter / AC Driver / AC Drives / AC Motor Drives / VFD, VSD / transistorized drives
1. Quick introduction----Z900
vector control with open loop
Compact size design,
small
Appearance,
easy to operate
2. Specification
Items |
Z900E |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
| Voltage Range | 220V:170V~240V 380V:330~440V |
| Output | Voltage Range | 220V:0~220V,380V:0~380V |
| Frequency Range | 0.10`400.00Hz |
| Control method | Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| Other Functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Six multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
Protection/
Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
3. Model for choosen
| Model | Input | Rate output
Power
(kw) | Capacity
(KVA) | Output
Current
(A) | Overload capacity
(60s)(A) | Applicable motor
(KW) |
| Z900-2S0.4GE | Single phase AC 220V.50/60Hz | 0.4 | 1 | 2.2 | 3.75 | 0.4 |
| Z900-2S0.75GE | Single phase AC 220V.50/60Hz | 0.75 | 2 | 5 | 7.5 | 0.75 |
| Z900-2S1.5GE | Single phase AC 220V.50/60Hz | 1.5 | 2.8 | 7 | 10.5 | 1.5 |
| Z900-2S3.7GE | Single phase AC 220V.50/60Hz | 3.7 | 6.8 | 8.6 | 12.9 | 3.7 |
| Z900-4T0.75GE | Three phase AC 380V.50/60Hz | 0.75 | 2.2 | 2.7 | 4.05 | 0.75 |
| Z900-4T1.5GE | Three phase AC 380V.50/60Hz | 1.5 | 3.2 | 4 | 6 | 1.5 |
| Z900-4T2.2GE | Three phase AC 380V.50/60Hz | 2.2 | 4 | 5 | 7.5 | 2.2 |
| Z900-4T3.7GE | Three phase AC 380V.50/60Hz | 3.7 | 6.8 | 8.6 | 12.9 | 3.7 |
| Z900-4T5.5GE | Three phase AC 380V.50/60Hz | 5.5 | 10 | 12.5 | 18.75 | 5.5 |
| Z900-4T7.5GE | Three phase AC 380V.50/60Hz | 7.5 | 14 | 17.5 | 21 | 7.5 |
| Z900-4T11GE | Three phase AC 380V.50/60Hz | 11 | 19 | 24 | 36 | 11 |
| Z900-4T15GE | Three phase AC 380V.50/60Hz | 15 | 26 | 33 | 45 | 15 |
| Z900-4T18.5GE | Three phase AC 380V.50/60Hz | 18.5 | 32 | 40 | 60 | 18.5 |
| Z900-4T22GE | Three phase AC 380V.50/60Hz | 22 | 37 | 47 | 70.5 | 22 |
4. Packing&Delivery
Single by buffers and single small carton, but lots of goods by bigger carton and cover PE film . the
cartons have three sizes: 460mm*390mm*580mm; 445mm*330mm*655mm;500mm*440mm*615mm;
But more than 22 kw ,they are packed in wooden cases.
Shipping: by sea, or express like UPS, DHL, FedEx...
if we deliver a lots of inverters ,we could use a outer larger carton to pack it ,and cover PE film to protect goods.
Welcome to know more about us.
1). More than 20 years-- manufacture of frequency inverter.
2). More than 10 years-- experience in OEM items
3). More than 60 countries-- exported
4). More than 70 R&D team-- OEM, ODM accepted
5). More than 10,000 pcs production capacity per month
6). Certification-- CE, ISO9000, ISO14001, OHSAS18000
7). Service-- Stand on customer's position to solve problem, reply within 24 hours
