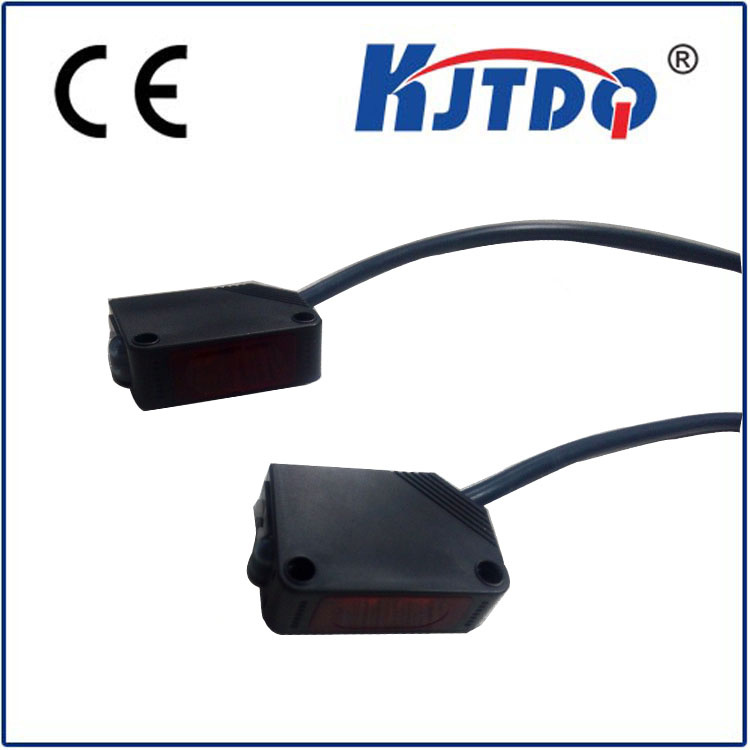

| Prod Model: |
KJT-FS30s |
| Voltage Type: |
10-36VDC Voltage |
| Protection Degree: |
IP 65 |
| Response Time: |
<3 Ms |
| Sensing Distance Range: |
Adjustable |
| Operating Tem.: |
-25ºC ~~+55 ºC |
| Feature: |
Standard |
Product Description
KJT-FJ18 Series Photoelectric sensor switch connectors
Detailed Product Description
Features:
----Easy to set up and adjust distance.
----Short-circuit protection, reverse polarity protection.
----Cable and connector connection optional.
----Stainless steel housing, strong and durable. Plastic housing, eonomical and easy to install.
----Light on/dark on conversion function.
----Built-in power supply, AC, DC or AC/DC universal Power supply.
----Relay output, capacity up to 250VAC*3A
Variety:
----Diffuse reflection type
----Retro reflection type
----Through beam type
| FS30A SERIES PHOTOELECTRIC SENSORS SPECIFICATIONS(DC) |
| type | Thru-beam | Retrorefective | Diffuse reflective |
Thru-beam | Narrow beam | With polarizing filters | For transparent object sensing | Long sening range | Short sening range |
| Sensing range | 10m | 5m | 0.1 to 3m | 50mm to 1,000mm | 800mm | 300mm |
| Sening object | φ12 mm or more opaque object | φ50 mm or more opaque | opaque, translucent or ransparent object |
| Hysteresis | -- | 15 % or less of operation distance |
Repeatability
(perpendicular to sensing axis) | 0.5 mm or less | 0.05 mm or less | 0.5 mm or less | 1 mm or less |
| Supply voltage | 10 to 30 V DC 10 % Ripple P-P 10 % or less |
Current
consumption | Emitter: 30 mA or less
Receiver: 30 mA or less | 30 mA or less |
Emitter: 30 mA or less
Receiver: 30 mA or less |

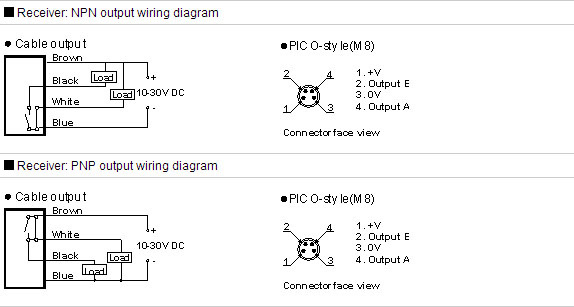

| Sensing output | NPN output type:
NPN open-collector transistor
Maximum sink current: 100 mA
Applied voltage: 30 V DC or less (between sensing output and 0 V)
Residual voltage: 1.5 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current) PNP output type:
PNP open-collector transistor
Maximum source current: 100 mA
Applied voltage: 30 V DC or less (between sensing output andV)
Residual voltage: 1.5 V or less (at 100 mA source current) |
| Utilization category | DC-12 or DC-13 |
| Output operation | Switchable either Light-ON or Dark-ON |
| Short-circuit protection | yes |
| Response time | 1 ms or less |
| Operation indicator | Red LED (lights up when the sensing output is ON) |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Power indicator | Red LED
(lights up when the power is ON) | - |
| Sensitivity adjuster | Continuously variable adjuster |
Automatic interference
prevention function | - | Incorporated
(Two units of sensors can be mounted close together). | - |
Incorporated
(Two units of sensors can be mounted close togethe). |
Environmental resistance | Pollution degree | 3 (Industrial environment) |
| Protection | IP67 (IEC) |
| Ambient temperature | -25 to+55 °C , Storage:-30 to+70 °C |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Sunlight: 10,000 #x at the light-receiving face, Incandescent light: 3,000 #x at the light-receiving face |
| EMC | IEC 60947-5-2, Parts7.2.6.1.2.3 or RFI>3V/m(in 30-1000MHZ), EFT>1KV, ESD>4KV(contact) |
| Voltage Withstand Ability | IEC 60947-5-2, Part8.3.3.4 or 500VDC for one min, between all supply terminals connected together and enclosure |
| Insulation Resistance | >20MΩ, With 500v dc megger between all supply terminals connected together and enclosure |
| Vibration Resistance | IEC 60947-5-2, Part 7.4.2 or 10-55HZ, 1.0mm amplitude in x, y and z directions for 30 min |
| Shock Resistance | IEC 60947-5-2, Part 7.4.1 or 30g 11ms in x, y and z directions for six time each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions for three times each |
| Emitting elementm | Infrared LED (modulated) | Red LED (modulated) | Infrared LED (modulated) |
| Material | PBT |
| Cable | 0.2 mm2, 3-core (thru-beam type emitter: 2-core) oil resistant cabtyre cable, 2 m long |
| Cable extension | Extension up to total 100 m is possible with 0.3 mm2, or more, cable (thru-beam type: both emitter and receiver). |
| Weight | Emitter: 45 g approx., Receiver: 50 g approx. | 50 g approx. |
:
