| Prod Model: |
FMC4B |
| Model No.: |
Fmc4b |
| Rated Current: |
30A |
| Rated Voltage: |
1000VDC |
| Test Voltage: |
6000V(50Hz, 1min) |
| Degree Of Protection: |
IP67 |
| Contact Material: |
Copper,Tin-Plated |
| Insulation Material: |
PPO |
| Warranty: |
5 Years |
| Connector: |
Wirie Connector |
| Conductor Size: |
2.5-6.0mm2 |
| Type: |
Socket Terminals |
| Application: |
Solar Power System |
| Material: |
Copper/Tin-Plated |
| Certification: |
Ce CCC |
| Brand: |
Feeo |
Product Description
Manufacturer Solar Power MC4 T-type brand T-branch Solar Panel MC4 T branch connector with cable
Product Description
MC4 T-branch connector Features:
1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
MC4 T-branch connector Parameters:
| Technical Data | |
| Brand | FEEO |
| Type | MC4 T branch |
| Rated current | 30A |
| Rated voltage | 1000v DC |
| Test voltage | 6000V(50Hz, 1min) |
| Overvoltage type/pollution degree | CAT III /2 |
| Contact resistance of plug connector | 1mΩ |
| Contact material | Copper, Tin-plated |
| Insulation material | PPO |
| Degree of protection | IP67 |
| Flame class | UL94-VO |
| Safety class | II |
| Suitable cable | 2.5mm2, 4mm2, 6mm2 |
| Insertion force/withdrawal force | ≤50N/≥50N |
| Connecting system | Crimp connection |
| Temperature range | -40ºC ~ +110ºC |

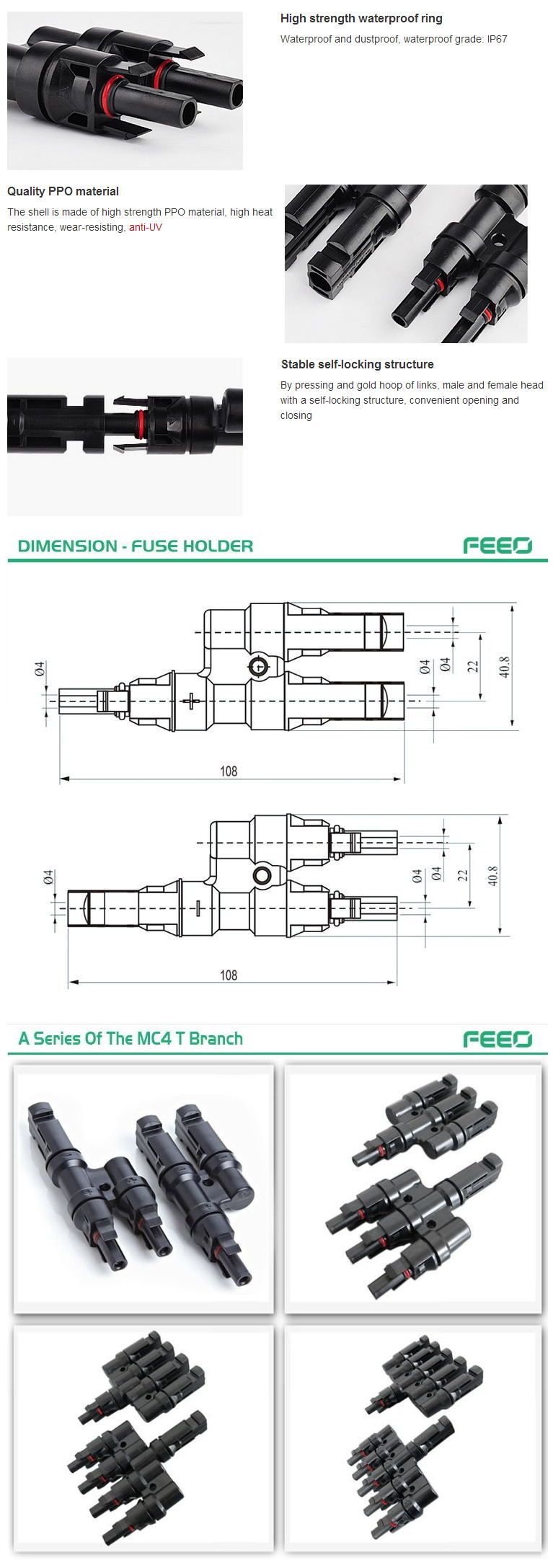

Detailed Images
Packaging & Shipping
MC4 T-branch connector Package:Standard export carton packing:
MC4 2 to 1 84pair/ctn Carton Size 40*26.0*29CM3 G.W./N.W.: 9.8/9kgs
MC4 3 to 1 192pair/ctn Carton Size 48*35.0*28CM3 G.W./N.W.: 23/21kgs
MC4 4 to 1 150pair/ctn Carton Size 48*35.0*28CM3 G.W./N.W.: 24/22kgs
MC4 5 to 1 120pair/ctn Carton Size 48*35.0*28CM3 G.W./N.W.: 24/22kgsMC4 T-branch connector Delivery Time:3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.MC4 T-branch connector Shipping:1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!Company InformationYUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your mc4 connector when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your mc4 connector seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our mc4 connector is IP67 degree and they are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your mc4 connector quality?
A:Of course!We also think sample order is the best way to build the trust.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your mc4 connector?
A:We offer two year warranty for our customer.
