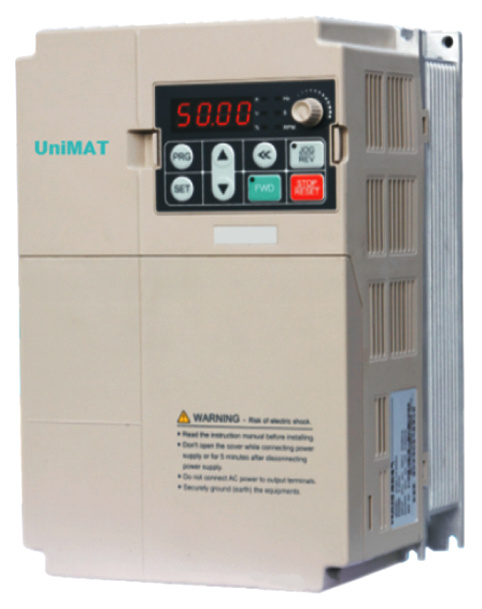

Manufacturer Variable Frequency Driver/ Loop Vector Inverter (UT500)

Name: Manufacturer Variable Frequency Driver/ Loop Vector Inverter (UT500)
Brand: all-electronics-online.com
SKU: 726611775
Availability: InStock
Rating: 4.7 (99 reviews)

Price:	US $ 100-200/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UT500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	2-3 Business Days After Payment Confirmed
Transportation:	DHL, FedEx, UPS, TNT, Aramex, etc.
Warranty Time:	18 Months
Number Of Phase:	Single Phase or Three Phase
Trade Term:	Fob Shenzhen
Rated Voltage:	220V or 380V

Product Description

Loop Vector Inverter Series
single phase 220V AC and Tri phase 380V AC

Specification
1.No encoder vector control, torque response speed≤20ms

2.No encoder vector control, torque control accuracy ±1%

3.No encoder vector control, 150% rated torque at 1Hz

4.Widely voltage range, allowable voltage swing range is ±15%

5.High overload capacity, 150% rated currency 60 seconds, 180% rated currency 2 seconds, 200% instantaneous trip

6.Long-life components design to extend the product usage life

7.Compact constructure design to adapt different load operations

8.Independent air-duct design to imporve anti-dust capacity, can be installed penetrably, higher adaptability

9.Removable DC FAN to ensure system run stably and easy to wash and maintence
10.Keyboard is plug-and-play, support leading out to outside, support data copy

11.Application fields: Mine, Metallurgy, Petrochemical, CNC
Papermaking, Textile, Construction Machinery, Package Printing etc.

12.Small power series, the Plastic shell is the original engineering plastic color, and strong flame-retardant.

No.	Order No.	Applicable motor ( KW )	Rated Currency ( A )	Size ( LWD ) mm
2	UT533-1R5G1-1XA0	1.5	3.7	122182154.5
3	UT533-2R2G1-1XA0	2.2	5	122182154.5
4	UT533-004G1-1XA0	4/5.5	9/13	159246157.5
5	UT533-5R5G1-1XA0	5.5/7.5	13/17	159246157.5
6	UT533-7R5G1-1XA0	7.5/11	17/25	195291167.5
7	UT533-011G1-1XA0	11/15	25/32	195291167.5
