Manufacturer Vehicle Security GPS Tracker with Android Web Tracking (TK103B)

Manufacturer Vehicle Security GPS Tracker with Android Web Tracking (TK103B)
Price: US $ 24/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 10/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: vehicle gps tracker TK103B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
GPS Accurate: 5 Meters
Applications: Vehicle Rental/Fleet Management Ect
Arm Alarms: Acc, Door Open Alarm, Optional Shock Sensor
Warranty Time: 12 Months
Multi Alarms: Geo Fence, Overspeed, External Power off Alarm etc
Tracking Solution: SMS, GPRS Web Platform, Android Ios APP Track
Type: GPS Tracker
Use: Automotive
Operating Principle: GPS Satellite Positioning and Data Transmit by GSM

Product Description

Manufacturer Vehicle Security GPS Tracker with Android  Web Tracking (TK103B)

model:Coban TK103A /TK103B

Applying directions:  car / vehicles / truck / fleet / asset management



 It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .



1. Summary

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.



2.  Features

Support both GPS & LBS (Location based service).

Support GPRS on-line and GPRS re-connected automatically if GPRS drops

Support SMS / GPRS dual-mode switching

Support configuration by remote terminal.

Support for point-to-point, point to group, group-to-group monitoring.

Set multiple functions of anti-theft, positioning, monitoring surveillance, emergency alarms and management in its entirety.

Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking





3. Main Function Description

1. Show location directly on mobile phone with HTTP Google map link

2. Get physical location in real street/address name

3. Remote Engine-stop and Resume.

4. Track by Distance Interval &time

5. USB configuration (option)

6. SD card for data logging (option)

7. ACC working alarm

8. Voice surveillance

9. Multi-Geo fence

10. Less GPRS traffic

11 .automatic update positions of vehicle turns

12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm

13. Movement alert.

14. over speed alarm

15. Power supply disconnection alarm.

16. Low battery alarm function

17. Check the vehicle status

18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking



specifications

Contentspecifications
DIM.83*54*26mm
Weight120g
NetworkGSM/GPRS
Band850/900/1800/1900Mhz
GSM/GPRS  ModuleSIM900B
GPS  ModuleSIRF3  chip
GPS  Sensitivity-159dBm
GPS  Accuracy5m
GPS  Start  timeCold  status    45s
Warm  status    35s
  Hot  status    1s
Voltage  of  car  power  system12  V  -24V

Backup  batteryChargeable  changeable  3.7V  800mAh  Li-ion  battery
Storage  Temp.-40° C  to  +85° C
Operation  Temp.-20° C  to  +65° C
Humidity5%--95%  non-condensing

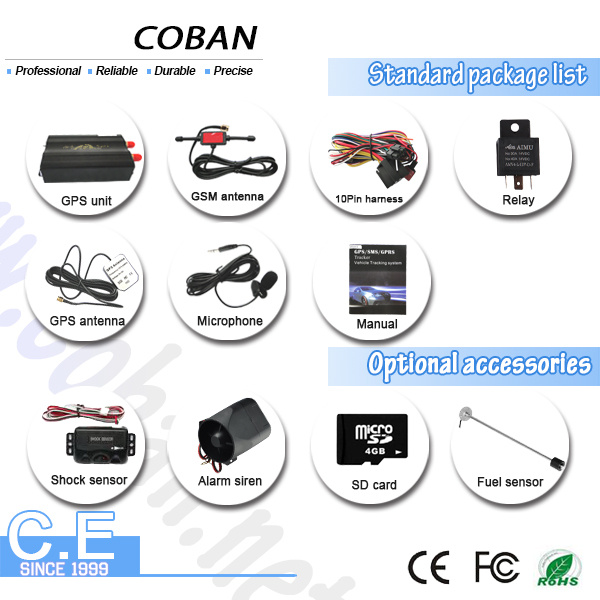

Packing contents:
Car GPS Unit tk103
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual package



SMS/GPRS tracking ways:
- SMS tracking by calling, return google map link
- Absolute street address by SMS
- optional Android Ios apps tracking
- Optional web server www. Gpstrackerxy. COM
