Manufacturers of Single Phase Servo Controlled AC Voltage Stabilizer / Regulator
| Price: |
US $ 16.8-17.2/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SVC 1000KVA |
| Warranty: |
2years |
| Current Type: |
AC |
| Usage: |
SVC |
| Frequency: |
Low Frequency |
| Phase: |
Single/Three |
| Application Range: |
Computers ,Test Equipment,Lighting Systems,Safety |
| Brand: |
Honle |
Product Description
General

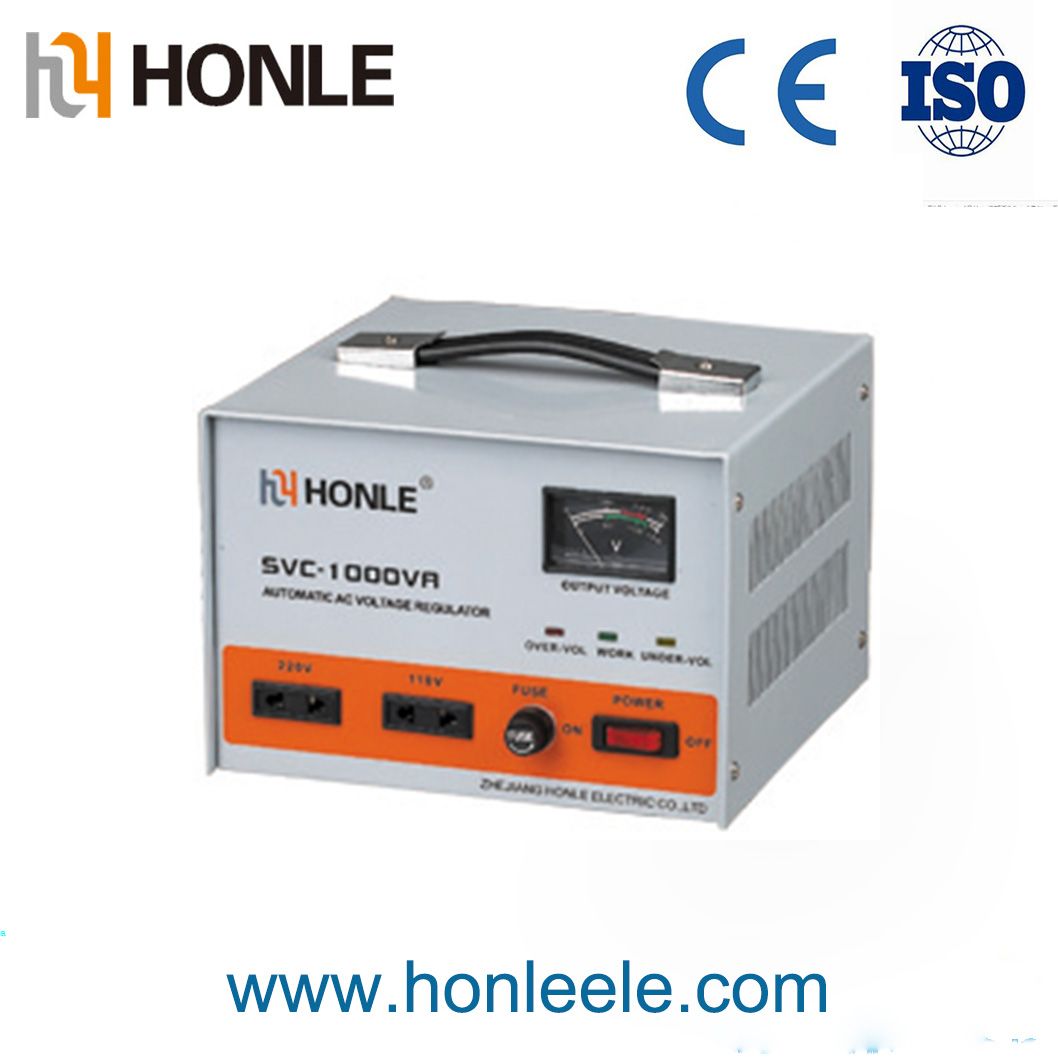

1.SVC Single-phase/Three-phase high accuracy full automatic AC voltage stabilizers is made of regulator,servo motor,automatic control circuit and so on.
2.This machine has advantages of nice appearance ,undistorted waveform,high efficiency,reliabli performance,and time-delay,over-voltage,etc.
3.The series of stabilizers driven,of general type,the indeel voltage stabilized sources which can be widely applied to any occasions requring power to assure the normal operation of your power driven equipment It can be applicated in computer ,test equipment ,communication system etc.
SINGLE-PHASE Technical Index(0.5KVA,1KVA,2KVA,3KVA,4KVA,5KVA,10KVA,15KVA,20KVA,30KVA)| Input voltage | 160~250V |
| Output voltage | 220V+/-3% 110V+/-4% |
| Phase | single phase |
| Frequency | 50-60HZ |
| Adjusting time | < 1S(When voltage has a change of 10%) |
| Max of | 0.5 1 1.5 2 3 5 10 15 20 30KVA |
| Output current | 2A 4A 6.5A 8A 12A 20A 40A 60A 80A 120A |
| Delay | Short Deley3~7 Sec long delay 3~7min |
| Temperature rise | < 60ºC(full load) |
| Ambient temperature | -5~+40°C |
| Relative humidity | < 90°C |
| Wave form distortion | No wave form distortion |
| Efficiency | >95% |
| Insulation resistance | ≥2MΩ |

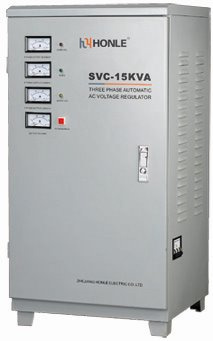

THREE-PHASE Technical Index(1.5KVA,3KVA,4.5KVA,6KVA,9KVA,15KVA,20KVA,30KVA,50KVA) | Input voltage | 280~450V |
| Output voltage | 380V+/-3% |
| Phase | three phase |
| Frequency | 50-60HZ |
| Debug time | 26V/Sec |
| Max of | 1.5 3 4.5 6 9 15 20 30 50KVA |
| Output current | 2A 4A 6.5A 8A 12A 20A 28A 40A 68A |
| Delay | Short Deley 5+/-2 Sec |
| Temperature rise | < 70k(full load) |
| Ambient temperature | -5~+40°C |
| Relative humidity | < 90°C |
| Wave form distortion | No wave form distortion |
| Efficiency | >95% |
| Voltage Withstand | National standard |
ABOUT OUR COMPANYa).HONLE Electronic co.,Ltd is specified in producing Single phase and three phase voltage stabilizers, voltage regulator, distribution transformers, low-voltage switch gear assembly,complete plant equipment
b)Passed the ISO9001 quality management system certification
c).HONLE insist on the quality of survival ,innovation and development all the time , try our
best to be winner to give you the competitive product .Our service :a)Quick response to your inquiry
b)best quality with reasonable price
c)long warranty ensure you buy with no hesitation
FAQ:
Q1.WHY CHOOSE US
A--Best quality with reasonable price .You will realize the answer when you compare ours product with others
Q 2. what's the payment term?
A --We usually accept TT, 30% deposit and 70% balance against copy of BL
Q 3. how's the delivery time ?
A --Usually it will take about 25 days for production.
Q 3. tell me the standard of package?
A --For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q4. what kind of certificate you have ?
A. Our company already achieve ISO, CCC, and for products, we have CE
Q5.How long is your product warranty
A.2 years warranty after manufacturing date
More question?
PLEASE FEEL FREE TO CONTACT US YOU CAN GET OUR IMMEDIATE REPLY
Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.

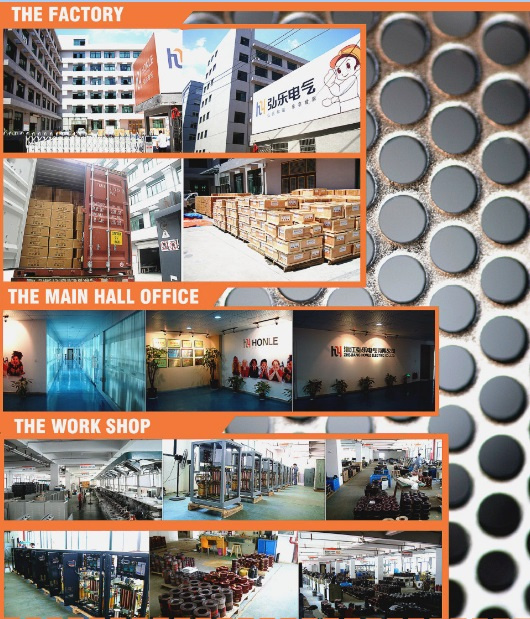

Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.
The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
