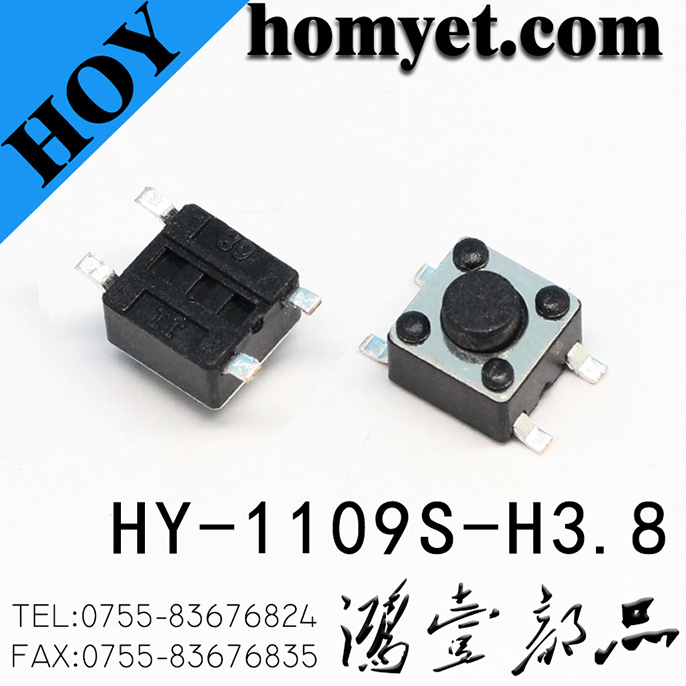

Manufacturing Mini SMD Tact Switch with 4pin

Prod Model:	HY-1109S
Color:	Black
Type:	SMD Type
Installation Form:	Surface Mount
Structure:	O-Type Contact
Package:	SMT Chip Package
Shape:	Square
Shrapnel:	Gold-Plated
Certification:	RoHS
Application:	Electronic and Electrical Equipment

Product Description

Manufacturing Mini SMD Tact Switch with 4Pin
-----Good Performance&Long life&Install easily
Customizing the height&operating force&Button shape

Material
1. Stem: FR52 from USA, Black
2. Cover: SPCC-SD Silver Plating
3. Contact: SUS301 from Korea, contact side silver plating
4. Case: PA46 Black
5. Terminal: Brass Plating silver

Specification:
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

Rating	DC 12V 50mA
Contact Resistance	50mΩ Max
Insulation Resistance	100mΩ Min
Operating Force	100gf, 160gf, 250gf
Life	50,000cycles Min
Travel	0.25mm
Temperature	-25'C-85'C

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile

Packing&Shipping:
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery
