| Prod Model: |
CNW110 |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Consnant |
Product Description

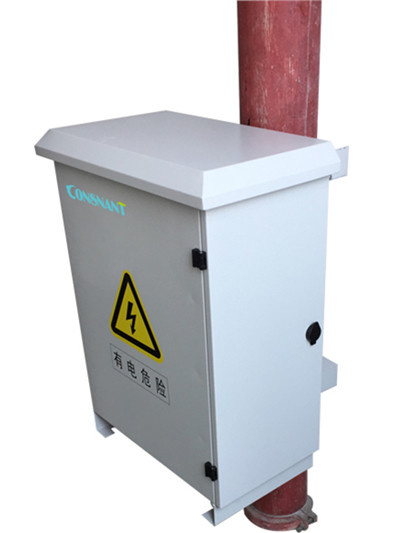

CNW110 Integrated Outdoor Online UPS 1-10KVAKey Features:
Cpacity: 1-10KVA
Nominal voltage: 220/230/240VAC
Nominal frequency: 50/60Hz
Output Power factor: 0.7/0.8Introduction:
CNW110 series communication marginal network outdoor UPS is special for wireless communication system of outdoor micro cellular base station and design of a high-performance integrated outdoor online uninterrupted power supply system, has the very high technology advancement and practicability.Key Features:
1. Consnant Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.
2. Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; 3. High Reliability of the UPS System.
With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.
Application:

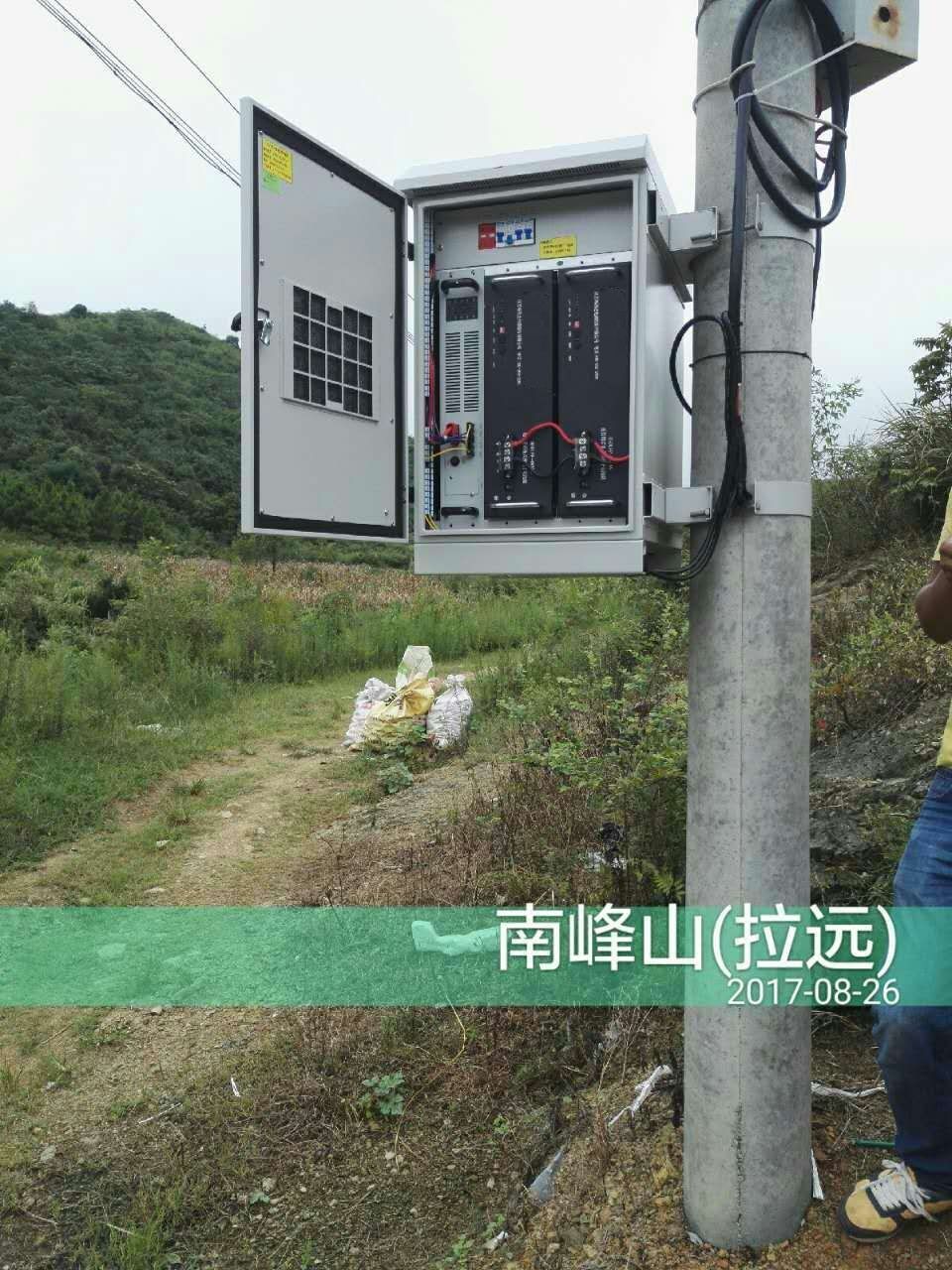

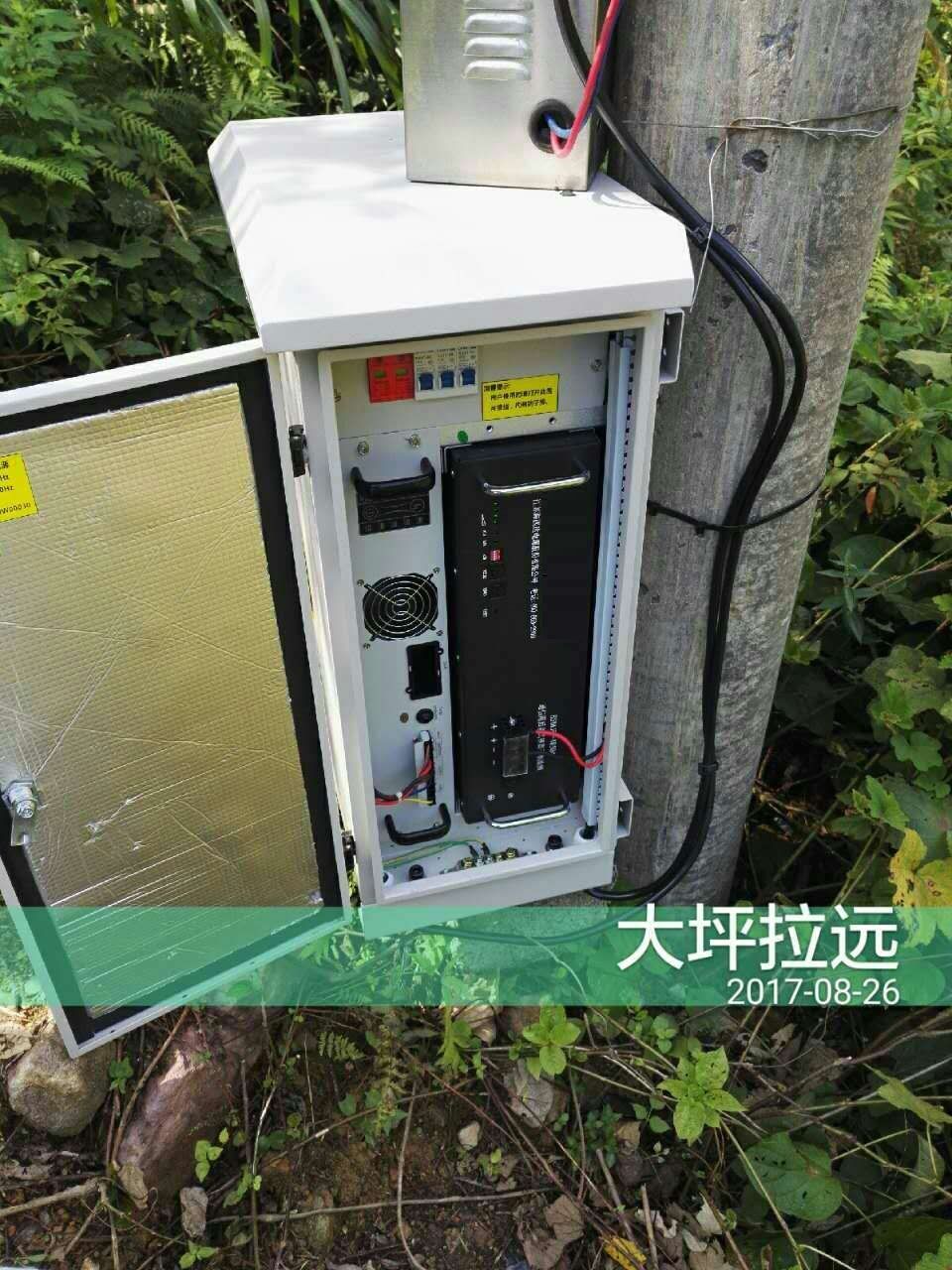

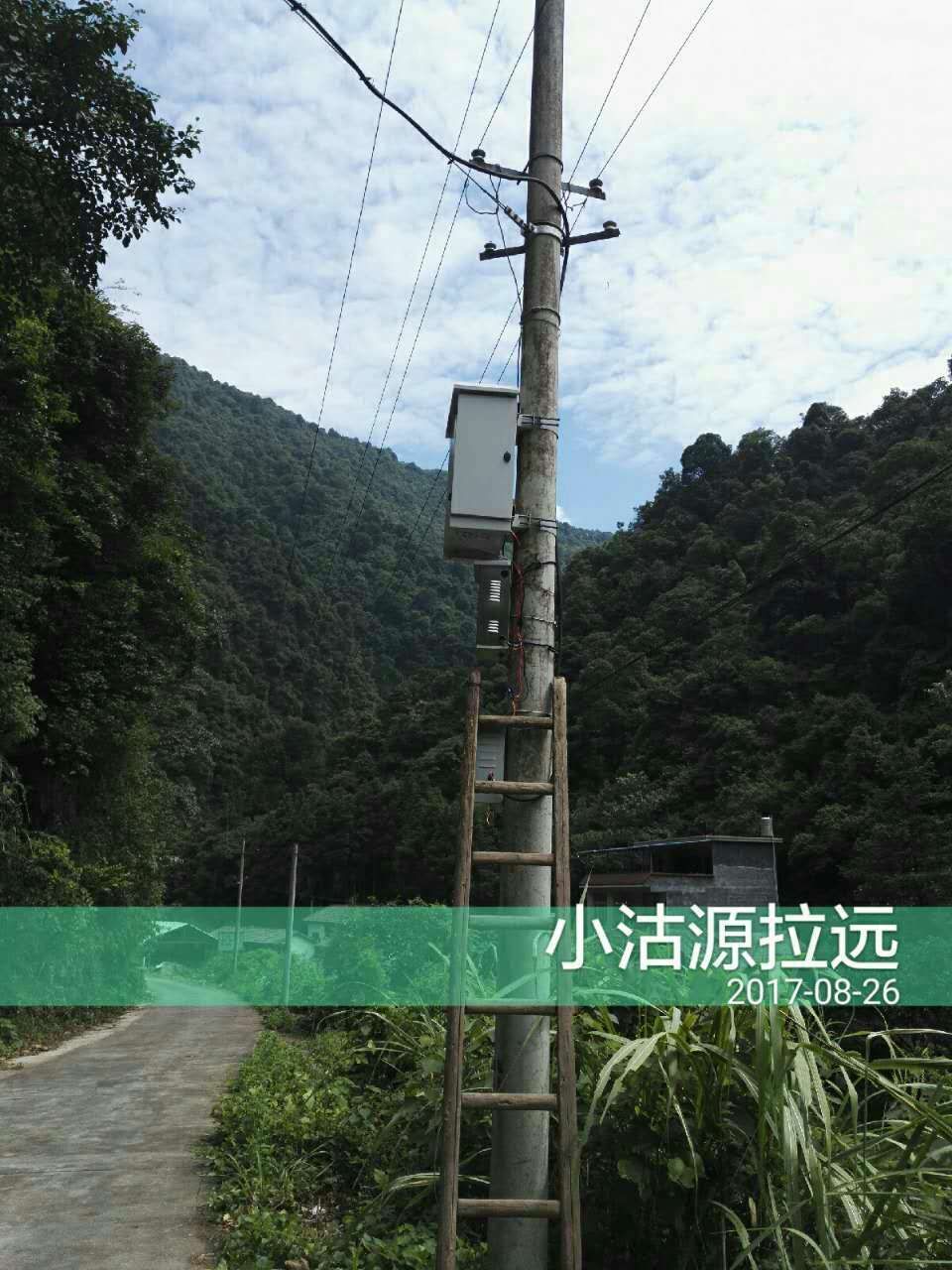

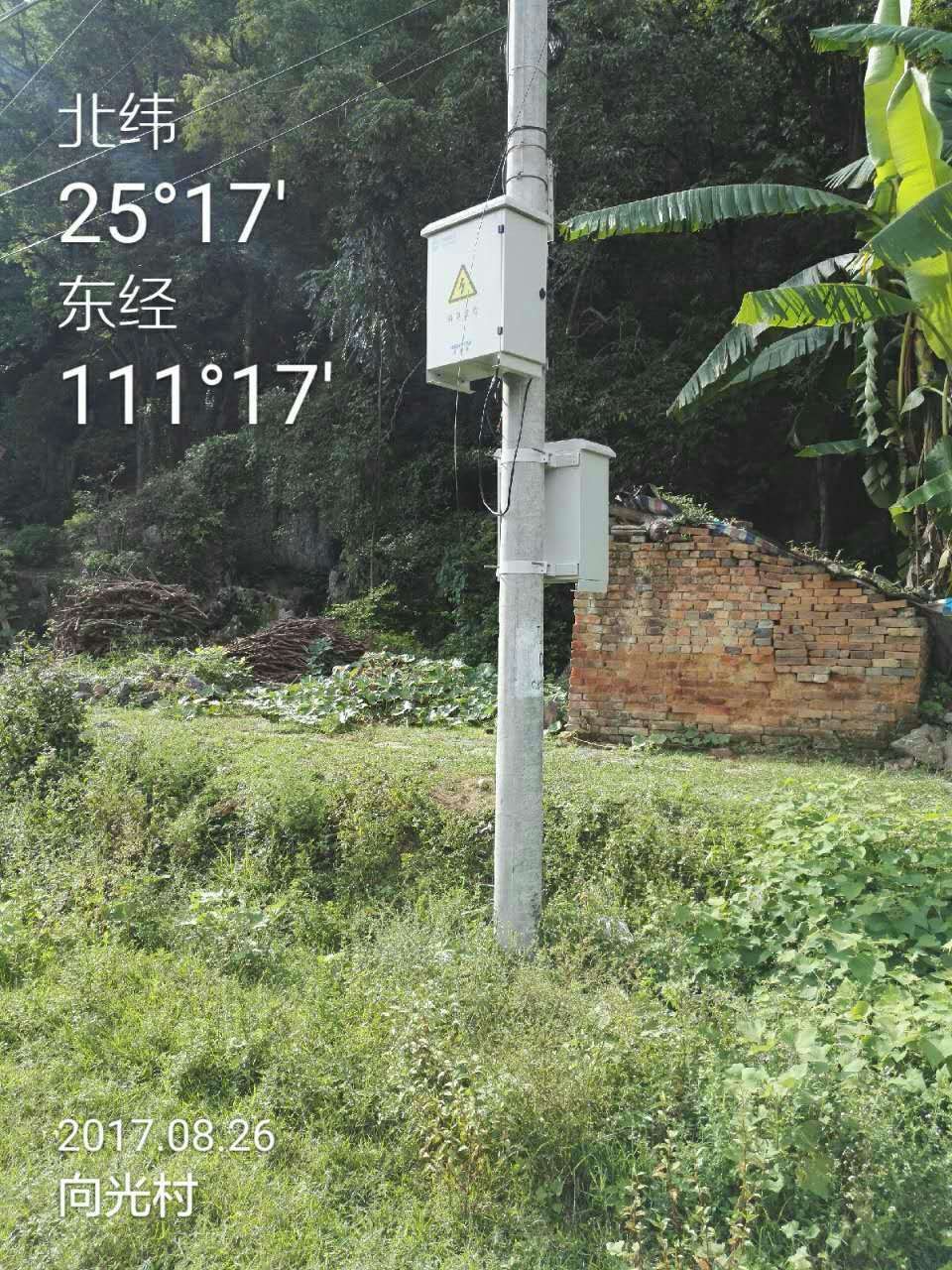

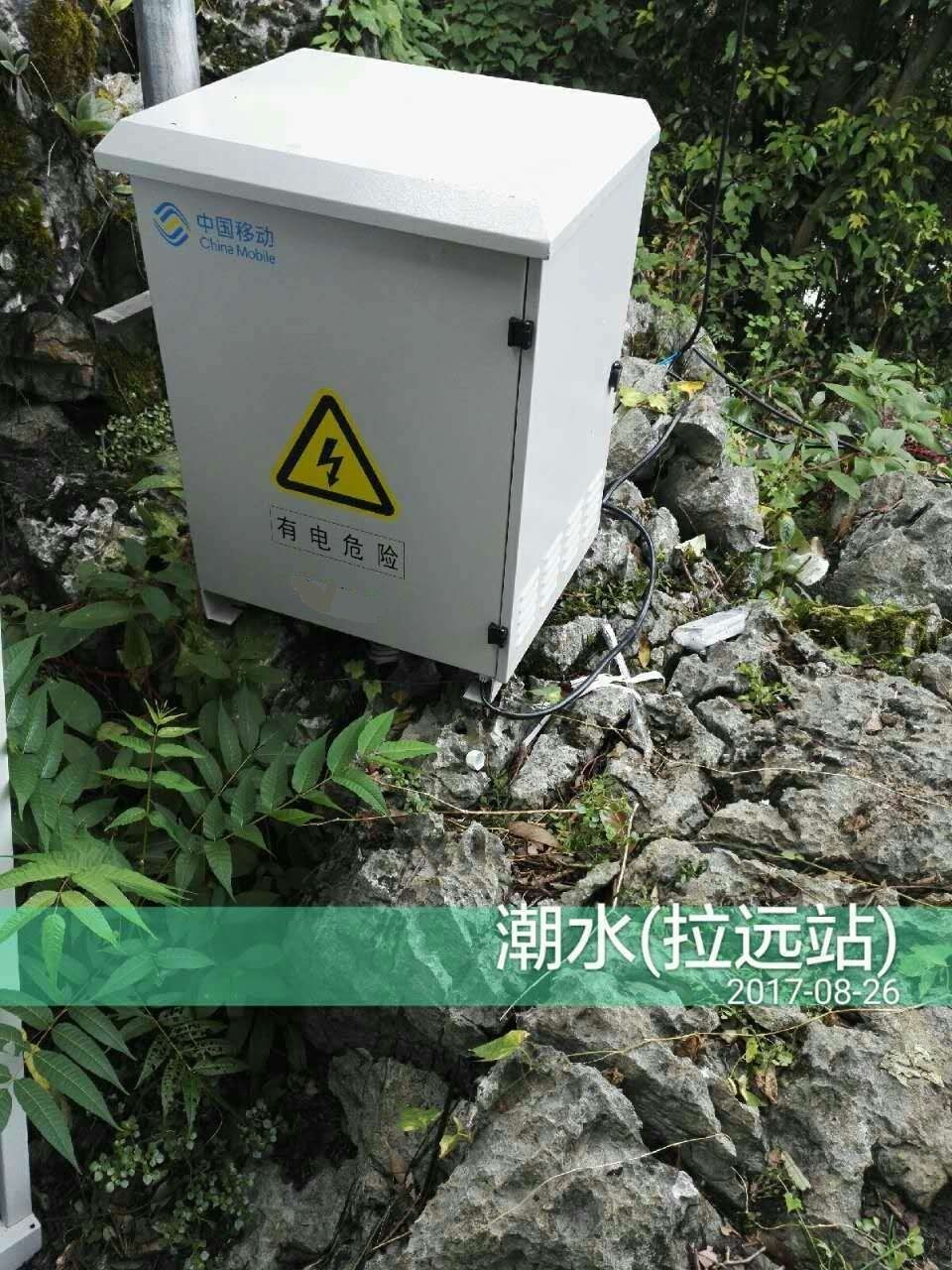

This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 °C) / low temperature (-40 °C), severe dust, moisture,rain, mist erosion, very poor power quality (voltage longterm higher than 260V or less than 160V, frequency abnormal change) in the area.
Technical Specifications:| Model | 1KVA | 2KVA | 3KVA | 6KVA | 10KVA |
| Capacity | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/2.1KW | 6KVA/4.2KW | 10KVA/7KW |
| Range voltage | 220/230/240VAC |
| Frequency | 50Hz/62Hz |
| Input |
| Voltage range | 115~295VAC(±3VAC) | 176~297VAC(±3VAC) |
| Frequency Range | 50Hz (46~54 Hz) ; 60Hz (56~64 Hz) |
| Soft Start | 0~100% 5sec |
| Power factor | 0.98 |
| Output |
| Voltage Precision | 220/230/240VAC(1±2%)AC |
| Frequency Precision | 50Hz/62Hz±0.05Hz |
| Power factor | 0.7/0.8(optional) standard 0.7 |
| Wave Distortion | Linear load<3% Non-linear load<6% |
| Overload capability | Overload(110~150%)for 30 seconds,then automatically transfer to bypass.When load is normal,it can automatically transfer to normal mode |
| Crest Factor | 3:1 |
| Transfer time | 0ms (AC to DC) |
| battery | 36VDC | 72VDC | 96VDC | 240VDC | 240VDC |
| Charging current | 4A/8A(optional) | 4A/8A(optional) | 4A/8A(optional) | 4.2A | 4.2A |
| Internal Battery Caoacity | (38/65/80/100AH) optional |
| Panel display |
| LED | Load level/Battery level ,Battery indicator,Utility power,Inverter ,Bypass,Overload ,Fault |
| Communications |
| Communications interface | RS232 SNMP card(optional) |
| Work Environment |
| Temperature | -40~55ºC |
| Humidity | 0~95%(Non-condensing |
| Storage Temperature | -25ºC~55ºC |
| Elevation | <1500m |
| Physical Characteristics |
| Weight(KG)N.W | 85 | 125 | 125 | 150 | 150 |
| Dimensions:(WxDxH)mm | 613*640*954 | 650*753*1227 | 650*753*1227 | 940*940*1770 | 940*940*17 |
