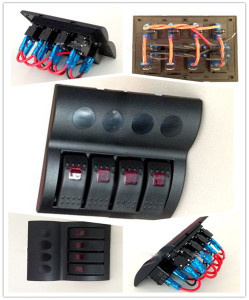

Marine 4 Gang Rocker Switch Panel/LED Light Waterproof Boat Switch Panel

Prod Model:	Rocker Switch Panel-106
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Maiyu
DC:	12V/20A, 24V/10A
Rating Ampere:	20A
Cover Dimesion:	36.8*21mm
Hxwxd:	42X24X40mm
Certifications:	RoHS, CE
Max. Voltage:	24V
Feature:	Waterproof Rotary Switch
Function:	on/on,on/off,on/on/off,Auto off
Cover Thickness:	Between 1/16'' and 1/4''
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	Red,Green,Blue,Orange,Gray,Grey,White,Yellow

Product Description

Product Description

Product Details
Basic Info.
Model NO.:MRC016

Usage:Electrical Appliance, Machinery, Digital Products, Vehicle
Standard:Standard

Lamp:With Lamp
Color:Blue

Certification:RoHS, CE
Condition:New

Brand Name:Maiyu
Max. Current:20A

Protection Level:9
Max. Voltage:250V

Rating Current:12V
Panel Cutout Dimesion:36.8*21mm

H*W*H:42X24X40mm
Feature:Waterproof Switch

LED Color:Blue
Export Markets:Global
Product Description

Packaging & Delivery
Packing details:    Packing :50pcs in a box,normal carton
Delivery detail:       In 10 days


Laser etched VAGAS LIGHTS rocker switch
This high quality 12 volt Rocker switch it is a single throw ON - OFF switch designed to operate your 12 volt driving lights. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''. This is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.
Single Pole Single Throw ON - OFF switch
Black hard surface rocker.
Single upper BLUE L.E.D light.
Single lower BLUE L.E.D light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
Wiring diagram supplied with switch.
Switch cut out size 0.83'' x 1.45''.
Panel thickness between 1/16'' and 1/4''.
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
