Marine Boat RV 6 Gang Waterproof Rocker Switch Panel W/LED Indicator & Breakers

Name: Marine Boat RV 6 Gang Waterproof Rocker Switch Panel W/LED Indicator & Breakers
Brand: all-electronics-online.com
SKU: 766758025
Availability: InStock
Rating: 4.4 (137 reviews)

Price:	US $ 39.0-39.5/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fitted Car:	All Cars
Size:	12013186mm
Rating Voltage:	DC 12V,24V
Color:	Blue, Green, Red, White
Ampere:	20A,10A
Switches Available:	6 Gang
IP Rating:	IP68
Loop Circuit:	on-off
Material:	ABS
LED Color Color:	Red
Function:	Windscreen Wiper
Pole:	3
Rated Continuous Current:	10A
Brand:	My

Product Description

Packaging & Delivery

Packaging Details:	1 x 6 Gang LED Rocker Switch Panel 1 x pre-printed labels 6 x screws
Delivery Detail:	5 days after receiving the payment

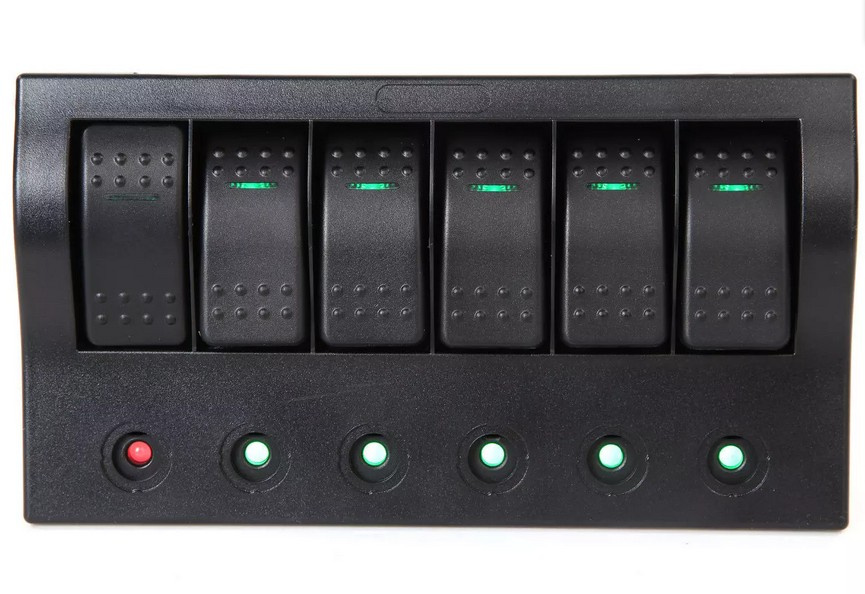

MARINE BOAT RV 6 GANG WATERPROOF ROCKER SWITCH

Product Description:

his is a 6 Gang waterproof switch panel made of UV stabilized plastic with rocker switch and led light indicators. IP rating 68

Panel Size 7.17" x 3.94" x 3.54" (18.2cm x 10cm x 9 cm)

Cutout Size 6.30" x 3.23" (16cm x 8.2cm)

Operating Voltage 12V DC

Switch ON-OFF (5 self locking + 1 momentary)

Circuit Breakers 5A x 3 / 10A x 2 / 15A x 1

LED indicators Green LED (ON) Red LED (OFF)

Preprinted Labels Included

Waterproof IP68 rating

*************************************************
