Prod Model:	SFCBS-175-402
Protection:	Anti-Airlock, Ignition Protected
Voltage:	6V-12V-24V-32V
Application:	Marine/Yachts/Boat/Caravans, etc
Switch Piston:	3
Max AMPS Draw:	300A
AMPS Draw:	175A
Standard Or Nonstandardswitch:	Standard
Product:	RV Battery Isolator Switch
Type:	Inland and Coastal Boats
Material:	ABS

Product Description

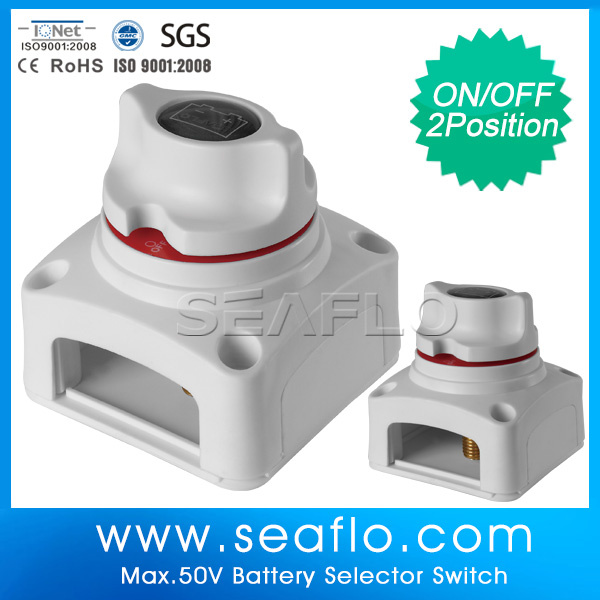

Marine RV Battery Isolator Switch for Pump Engine Starting

Product Description
1. Great for your boat, caravan, 4x4, showcar, trailer, winch power cable, and more
2. The selector switch will allow the use of one battery for engine starting and one battery for auxiliary
3. Heavy Duty - Rated at 300 Amps momentary, 175 Amps continuous @ 12V
4. Can be used with 6V up to 32V systems to isolate and secure the electrical system
5. Disconnects the battery/batteries safely, to eliminate any power draw from the battery when vehicle or boat are not in use

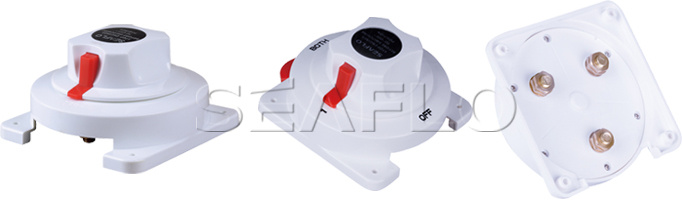

6. Isolates 1 battery or 2 batteries, or links up both batteries in parallel
7. Rotary dial has a spring-loaded keeper to lock the selected position
8. UV stabilised black bakelite vapour-proof housing - Built to last in marine conditions

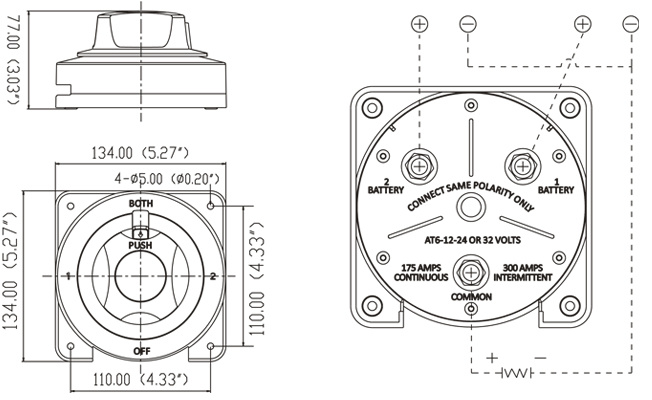

9. Easy to install (wiring diagram included)
10. 3 brass terminal studs & nuts and copper washers
11. 4 mounting screw holes
12. Does not include mounting screws

Backed SEAFLO's 1-Year Warranty!
Colors: white

Model	SFBIS1-01	SFCBS-275-201	SFCBS-175-402
Max.Volt (V)	50	50	6-12-24-32
Amp Draw (A)	275	275	175
Max Amp Draw (A)	1250	1250	300
Switch Position	2	2	3
Packing Size	100×104×114 mm	78×78×80 mm	140x140x85 mm
N.W/GW	0.29/0.32 kg	0.20/0.30 kg	0.45*0.65 kg

1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Fuzhou Port.
