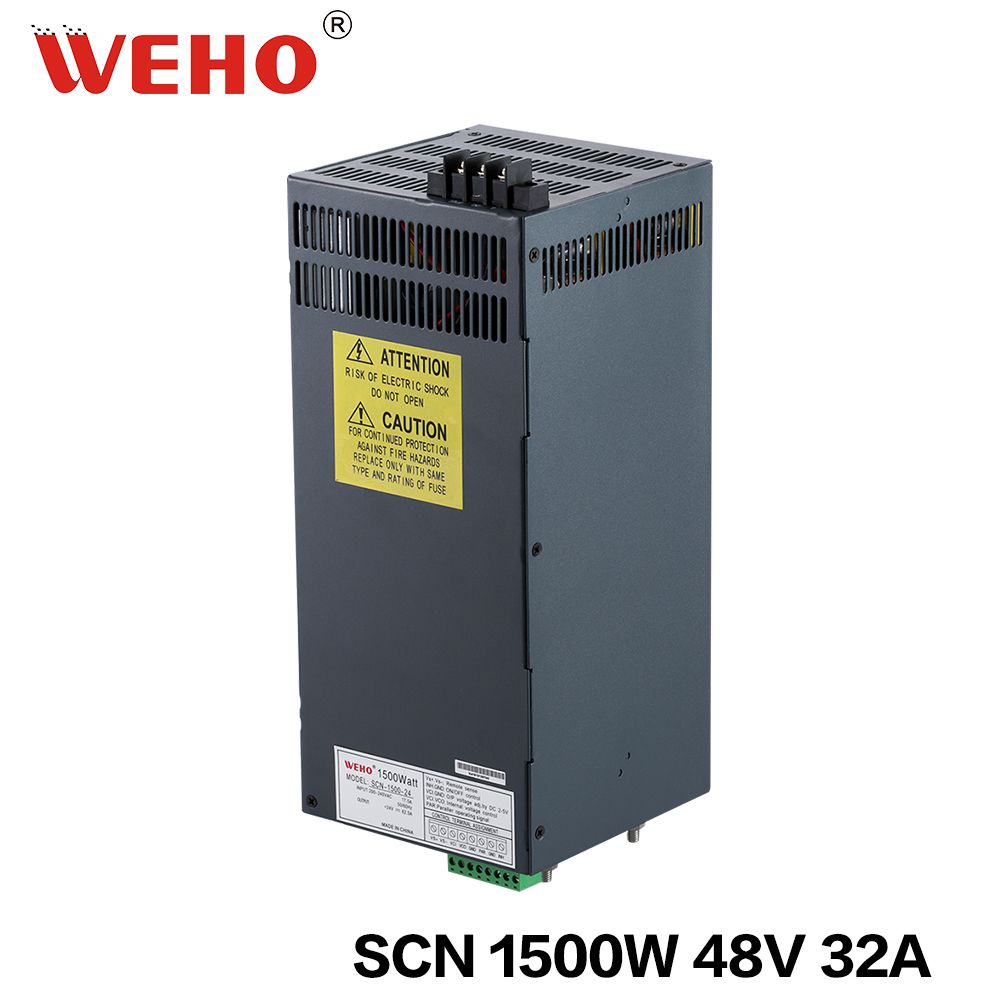

Maximum Switching Power Supply AC to DC 1500W 48V PSU (SCN-1500-48)

Name: Maximum Switching Power Supply AC to DC 1500W 48V PSU (SCN-1500-48)
Brand: all-electronics-online.com
SKU: 832527005
Availability: InStock
Rating: 4.7 (88 reviews)

Price:	US $ 240-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCN-1500-48
Output Current:	32A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	4.75kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Output Power:	1500W
Input Voltage:	110V/220V
Brand:	Weho

Product Description

1500W 48V in parallel switching power supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Specifications:

Model	SCN-1500-5	SCN-1500-12	SCN-1500-15	SCN-1500-24	SCN-1500-48
DC output voltage	5V	12V	15V	24V	48V
Output voltage error (Note2)	±2%	±1%	±1%	±1%	±1%
Rated output current	217.5A	125A	90A	62.5A	32A
Output current rage	0-217.5A	0-125A	0-90A	0-62.5A	0-32A
Wave and noise(Note3)	150mVp-p	150mVp-p	150mVp-p	240mVp-p	480mVp-p
Inlet stability(Note4)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±1%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	1000W	1500W	1500W	1500W	1500W
Efficiency	77%	83%	85%	85%	87%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%	±10%
AC input voltage range	190~240VAC 47~63Hz
Input current	12A/230V
AC impulse current	150A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150%TypeTOLDBACK Reset auto recovery
Temperature coefficient	±0.03%°C(0~50°C)
Setup rise hold up time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval1.5KvAC Input and enclosure1.5KvAC Output and enclosure0.5KvAC
Isolation resistance	Input and output intervalInput and enclosure,Output and enclosure500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C,20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95RH
Overall dimension	291132136mm
Weight	4.75Kgs
Safety standards	UL1012 TUV 60950(IEC950,UL1950)
EMC standards	CLSPR22(55022),IEC801-2,3,4,IEC555-2

Our Workshop:

Packaging:

Exhibition:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
