Maxphontonics 20 Watt Fiber Laser Type Marking and Engraving Machine of Diodes
| Price: |
US $ 5600/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
OTF-20-11 |
| Model No.: |
Dp-F10-Otf |
| Certification: |
SGS, Ce |
| Control: |
Automatic |
| Condition: |
New |
| Power: |
10watt, 20watt, 30watt |
| Export Markets: |
Global |
| Engraving Machine Type: |
Laser Engraving Machine |
| Laser Type: |
Fiber Laser |
| Current: |
AC |
| Usage: |
Metel, Plastic |
Product Description

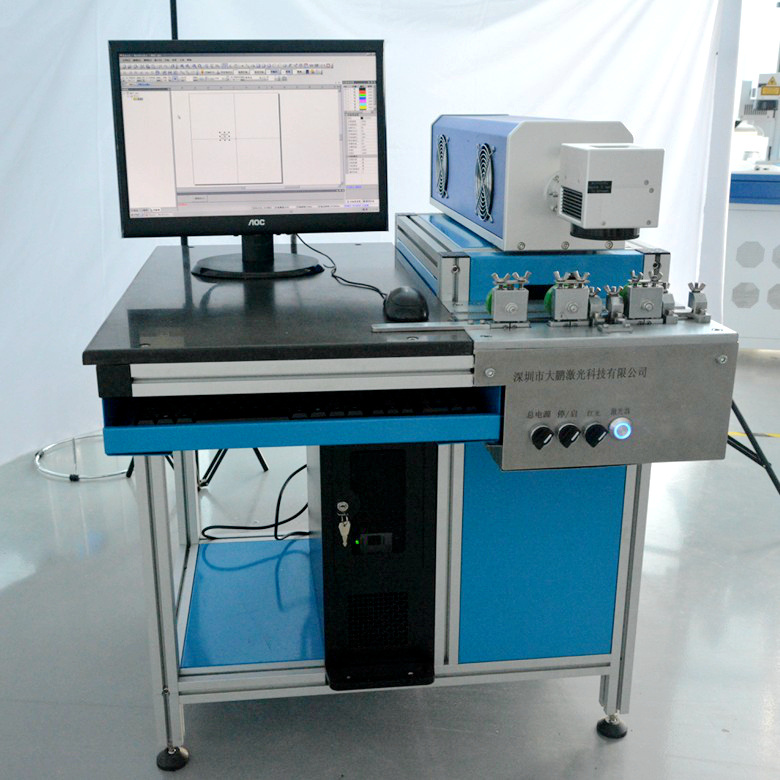

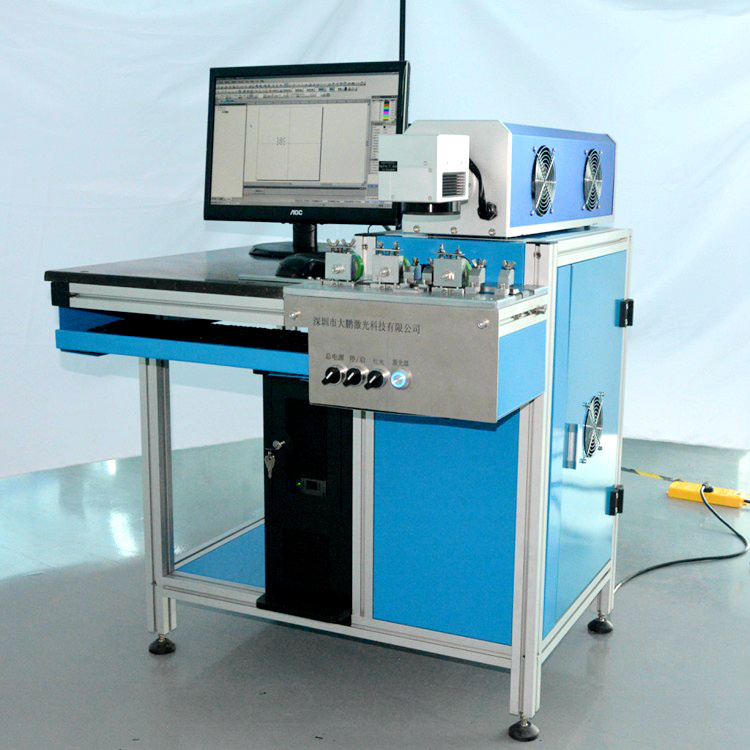

20 watt laser machine with EAR marking controling sytem

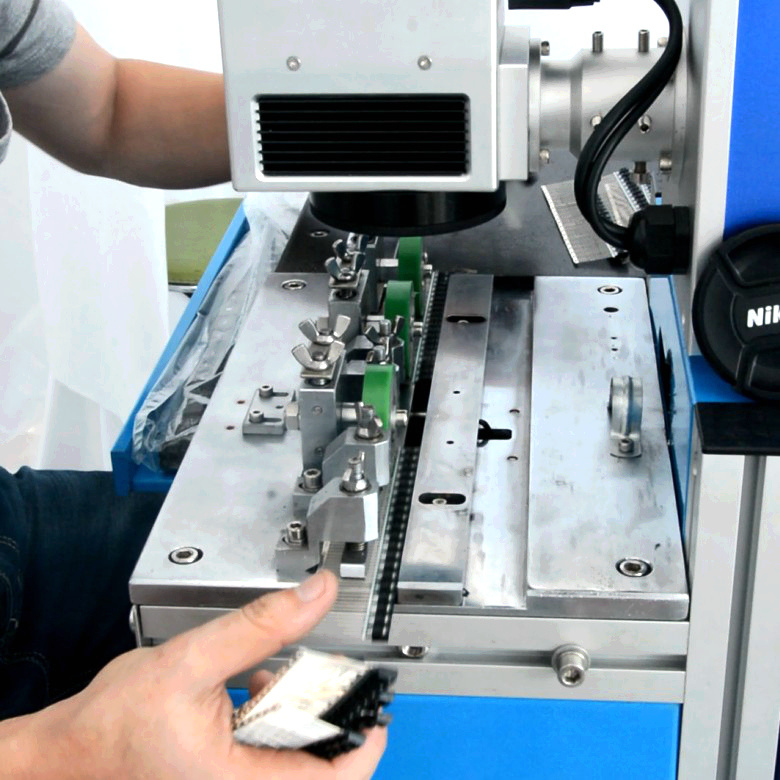

Front Working table

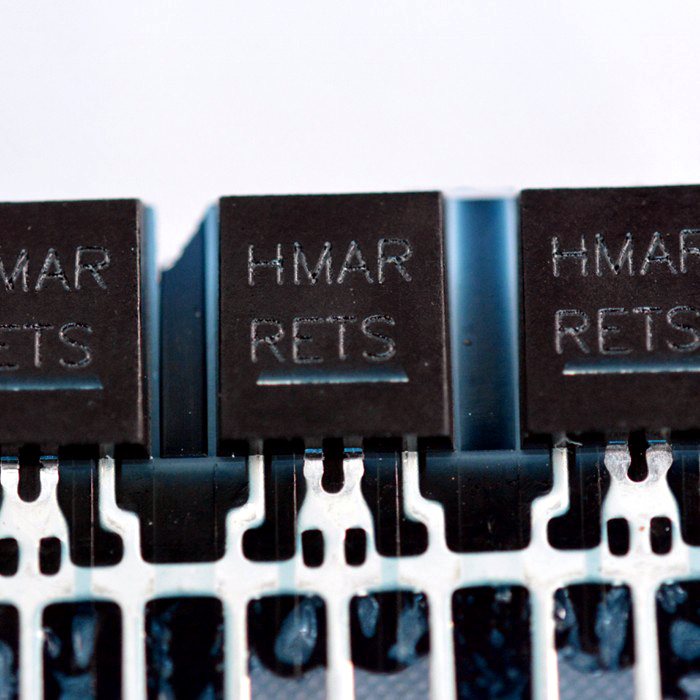

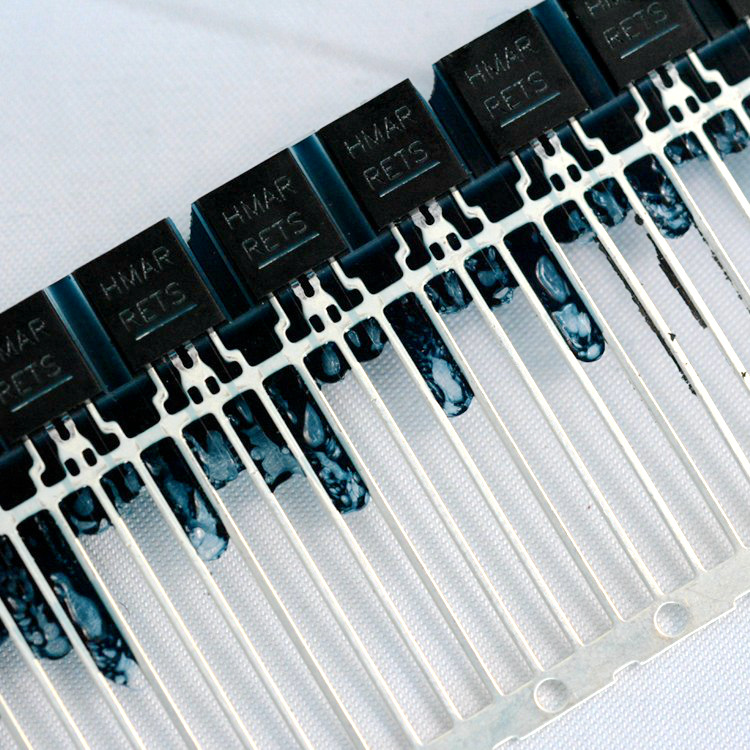

Diodes marked sample works on the running line
Maxphontonics 20 watt Fiber laser type marking and engraving machine of Diodes
Laser marking on the fly offers several advantages to manufacturers. Beside the simple reduction in costs and labor using traditional printing methods, on the fly lasing allows for significant improvements in ROI over other forms of laser marking. With no part loading, manually or robotically, parts are rapidly fed across the laser field through to the next part of the manufacturing process.
Vision systems can even allow parts to arrive in the laser field in different orientations. The optics identify the variation to the laser which orients for each part's alignment. This can be done at very high speeds, possibly meaning less time spent getting your parts to face a certain direction.
Dapeng Lasers' engineers have years of experience developing part delivery systems that ensure a combination of high speed and precision lasing.
DAPENGLaser CNC Marking and Engraving System
DP-OTF laser marking machine (Marking On The Fly), adopts imported top quality or China top brand fiber laser source , high-speed galvanometer scanning system, Japan electro-optical sensors, and professional On The Fly marking control software, can increase production speed, reduce bad pieces, improve line safety, and eliminate down time.
Technical specifications
Model | DP-F10-OTF | DP-F20-OTF | DP-F30-OTF |
| Laser Power | 10W | 20W | 30W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Highest feeding speed | 300m/min | 300m/min | 300m/min |
| Marking | Can mark on stationary or moving parts |
| Software | automatic encoding, variable text, date, serial number, lot number, bar code and two-dimensional code printing, and can be modified according to customers ' different needs of production line flexibly. |
| Adjustable lift range | 0~1000mm or custom design |
| Power consumption | ≤600W | ≤800W | ≤2KW |
| Power supply requirement | 220v/50HZ | 220v/50HZ | 220v/50HZ |
Special featuresDAPENGLaser offer On The Fly Laser Marking Machine with following applications:
l Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
l Hall marking on Gold
l Automotive & Engineering Industries
l Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments
l Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift makingSample works but bot limited:
Support and warranty
MANUALS AND INSTRUCTIONAL VIDEOS
An Operation Manual and instructional video that contains clear explanations of the Installation process and the usage of the software, the control panel and other features.| For more information | CLICK HERE |
DAPENGLaser WARRANTY AND PROFESSIONAL SUPPORT
To make sure your machine never stops running, in the unlikely event that your equipment needs technical service, we have an extensive inventory of spares parts as well as technical support at any of our fully stocked facilities in Guangdong, Fujian, Jiangsu and the other Province in East China, also offers a comprehensive warranty policy for manufacture deffects.| For more information about "support" please | CLICK HERE |
| For more information about "Warranty" please | CLICK HERE |
Shipping and training
INSTALLATION, TRAINING, STOCK AND DELIVERY
Up to 8 hours of training (2 days of 4 hours) in the Installation, Maintenance & Operation of the Laser Machine, as well as the included software is available Free of charge at our premises. Unlimited technical support is offered via telephone, e-mail and other means. Optional On-Site Installation and Training by our Tech Support Engineer is available for an additional charge at the customer's request. We have 2 fully stock facilities in China (Guangdong and Jiangsu) and can deliver anywhere in the world.| For more information about our "delivery programs" | PLEASE CLICK HERE |
| For more information about our "training programs" | PLEASE CLICK HERE |
Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
