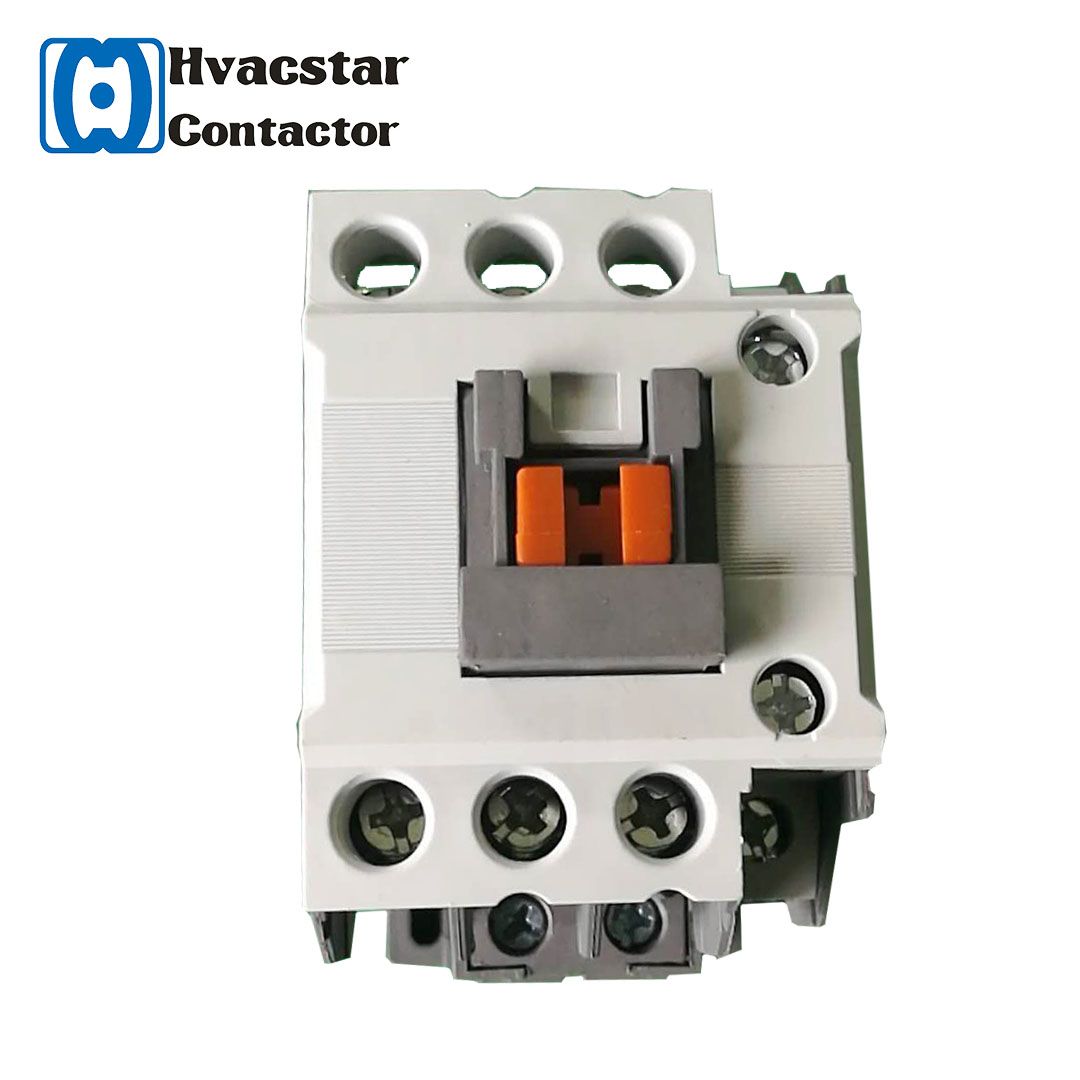

Mc-22 New Type AC Contactor

Prod Model:	mc-22
Coil Voltage:	220V-690V
Model:	Gmc
Certificate:	UL,CSA,Ce,S Mark
Color:	White
Frequency:	50/60Hz
Usage:	Household Appliances Relay
HS Code:	85363000
Standard:	IEC60947
Delivery Date:	15 Days After Deposit

Product Description

Hot sale AC  electrical magnetic  3 Pole Ls Contactor with good quality 220V-690V


Products Application
     MC series AC contactor is suitable for using in circuits up to the rated voltage 690V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, delay timer & machine-interlocking device etc, it becomes the delay contactor,mechanical interlocking contactor, star-delta starter. With the thermal overload  relay, it is combined into the electromagnetic starter.
    The contactor is produced according to IEC60947-4.


Features
3 pairs of main contacts
Mechanical interlock
Design of anti-electric shock cover
Fixed by guide rail or screw
The accessory can be mounted on the top or at side
Be connected with the thermal overload relay directly


Specification

Rated current	AC3(IEC60947)				contact	Type
	220-240V	380-440V	500-550V	690V
9A	2.5kW 11A	4kW 9A	4kW 7A	4kW 5A	1NO+1NC	GMC-9A
12A	3.5kW 13A	5.5kW 12A	7.5kW 12A	7.5kW 9A	1NO+1NC	GMC-12A
18A	4.5kW 18A	7.5kW 18A	7.5kW 13A	7.5kW 9A	1NO+1NC	GMC-18A
22A	5.5kW 22A	11kW 22A	11kW 22A	15kW 18A	1NO+1NC	GMC-22A
32A	7.5kW 32A	15kW 32A	15kW 32A	18.5kW 20A	1NO+1NC	GMC-32A
40A	11kW 40A	18.5kW 40A	18.5kW 40A	22kW 23A	1NO+1NC	GMC-40A
50A	15kW 55A	22kW 50A	22kW 50A	30kW 28A	1NO+1NC	GMC-50A
65A	18.5kW 65A	30kW 65A	30kW 65A	33kW 35A	1NO+1NC	GMC-65A
75A	22kW 75A	37kW 75A	37kW 75A	37kW 42A	1NO+1NC	GMC-75A
85A	25kW 85A	45kW 85A	45kW 75A	45kW 45A	1NO+1NC	GMC-85A

coil voltage,AC 50/60Hz
50Hz:24,42,48,100,110,220,240,380,400,415,440,500,550V
60Hz:24,48,110,120,208,220,240,277,380,440,480,600V


Why Choose Us:
Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life
18-year manufacturing &export experience
Attending more than 5 kinds of international exhibition per year
Do business with world famous company


FAQ:
Q1: Can I get a sample for testing?
A: Yes, warm-welcomed for sample purchase.
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: Full-refund policy in case of quality problem.
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy.
