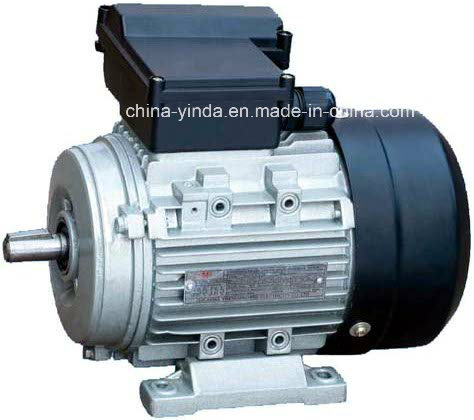

Mc Capacitor Start Single Phase Electrical Motor (Aluminum Frame)

Name: Mc Capacitor Start Single Phase Electrical Motor (Aluminum Frame)
Brand: all-electronics-online.com
SKU: 645040875
Availability: InStock
Rating: 4.7 (103 reviews)

Price:	US $ 40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Voltage:	Special Voltages Available
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Species:	Yc Series Single-Phase
Starting Mode:	Capacitor Start
Certification:	Ce
Brand:	Yinda

Product Description

MC Series Capacitor-Start Single Phase Electrical Motor
(Motor, Electric Motor, Electrical Motor, single phase motor, CE motor, ac motor, Induction Moor, gear motor, Capacitor Motor)

Standard Features:
Single-phase, 2 and 4pole, 50Hz
Squirrel cage rotor / Aluminum die cast

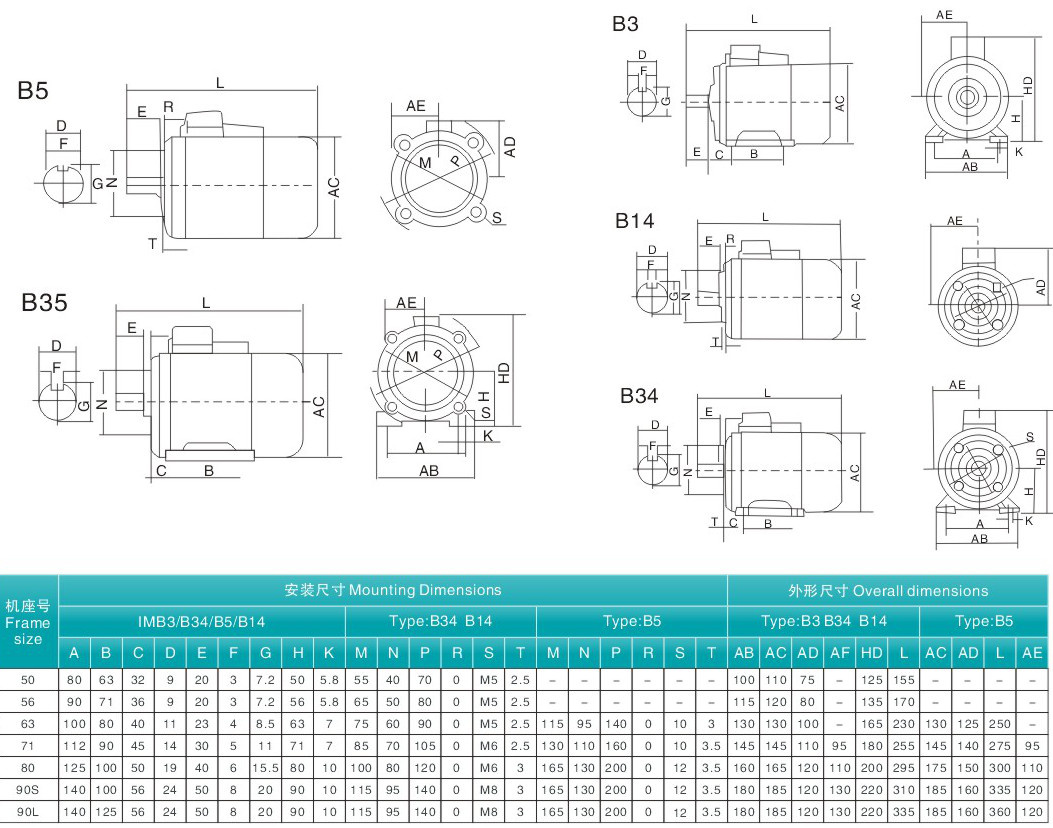

IEC dimensions
Insulation Class B
High starting torque
Continuous Duty (S1)

Optional Features:
Special Voltages and frequency
Stainless steel shaft
B5/B35/B14/B14 mount

Applications:
Pumps
Fans
Conveyors
Blowers
Air compressors
Industrial equipment
Milling machines
Tools
Farm equipment
Aeration equipment
Other moderate-to-high starting torque applications.

TYPE	POWER KW	HORSEPOWER HP	VOLTAGE V	CURRENT A	FREQUENCY HZ	SPEED R/MIN	EFFICIENCY %	POWER FACTOR Cos	LOCKED-ROTOR CURRENT/RATED CURRENT	LOCKED -ROTOR TORQUE/RATED TORQUE	MAX TORQUE/RATED TORQUE	NOISE Lw dB (A)
YC711-2	0.18	0.25	220	1.89	50	2800	60	0.72	6.5	3	1.8	70
YC712-2	0.25	0.33	220	2.4	50	2800	64	0.74	6.5	3	1.8	70
YC801-2	0.37	0.5	220	3.11	50	2800	65	0.77	6.5	2.8	1.8	75
YC802-2	0.55	0.75	220	4.65	50	2800	68	0.79	6.5	2.8	1.8	75
YC90S-2	0.75	1	220	6.09	50	2800	70	0.8	6.5	2.5	1.8	75
YC90L-2	1.1	1.5	220	8.68	50	2800	72	0.8	6.5	2.5	1.8	78
YC100L1-2	1.5	2	220	11.38	50	2820	74	0.81	7	2.5	1.8	83
YC100L2-2	2.2	3	220	16.46	50	2820	75	0.81	7	2.5	1.8	83
YC112M-2	3	4	220	21.88	50	2840	76	0.82	7	2.2	1.8	85
YC132S-2	3.7	5.5	220	26.64	50	2840	77	0.82	7	2.2	1.8	87
YC711-4	0.12	0.16	220	1.88	50	1400	50	0.58	6	3	1.8	65
YC712-4	0.18	0.25	220	2.49	50	1400	53	0.62	6	2.8	1.8	65
YC801-4	0.25	0.33	220	3.11	50	1400	58	0.63	6	2.8	1.8	65
YC802-4	0.37	0.5	220	4.24	50	1400	62	0.64	6	2.5	1.8	70
YC90S-4	0.55	0.75	220	5.49	50	1400	66	0.69	6.5	2.5	1.8	70
YC90L-4	0.75	1	220	6.87	50	1400	68	0.73	6.5	2.5	1.8	70
YC100L1-4	1.1	1.5	220	9.52	50	1420	71	0.74	6.5	2.5	1.8	73
YC100L2-4	1.5	2	220	12.45	50	1420	73	0.75	6.5	2.5	1.8	78
YC112M-4	2.2	3	220	17.78	50	1420	74	0.76	6.5	2.2	1.8	78
YC132S-4	3	4	220	23.61	50	1440	75	0.77	6.5	2.2	1.8	83
YC132M-4	3.7	5.5	220	28	50	1400	76	0.79	6.5	2.2	1.8	83

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
