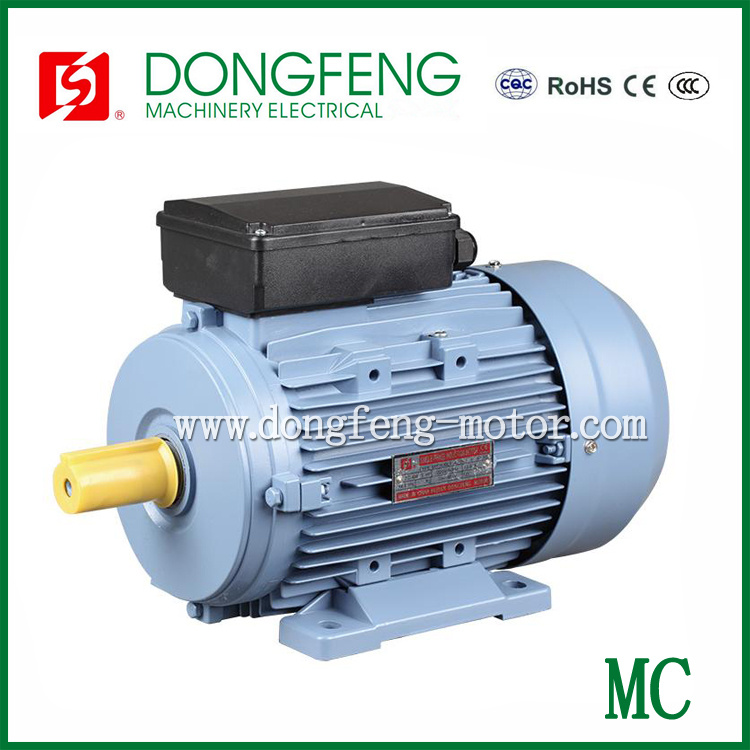

MC Series Single Phase Asynchronous Squirrel-Cage Induction Motors

MC Series Single Phase Asynchronous Squirrel-Cage Induction Motors
Price: US $ 15-350/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T
Prod Model: MC Series
Insulation Class: Class B or Class F
Application: Power Tools
Operating Speed: Constant Speed
Number Of Stator: Single-Phase
Rotor Structure: Squirrel-Cage
Casing Protection: Closed Type
Starting Mode: Auto-induction Voltage-reduced Starting
Species: Mc
Number Of Poles: 2/4
Certification: Ce
Brand: Dongfeng or OEM

Product Description



INTRODUCTION

MC series are conformed to IEC standard and made of selected quality materials. The starting torque of the motor is 2-3 times as rated torque. It's good utility for family workshop where only single phase power is available.


Features: high starting torque, low temperature-rise, low noise, slight vibration, light weight, simple construction, good appearance and etc.

Applications: small machine tools, pumps, refrigerators and many other machine that need full-load start.

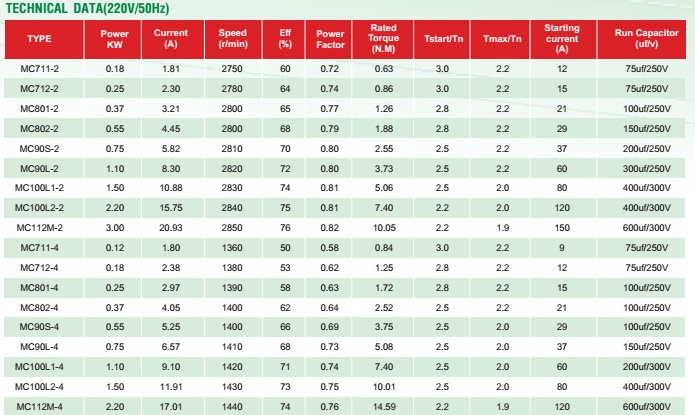

RANGE OF PERFORMANCE

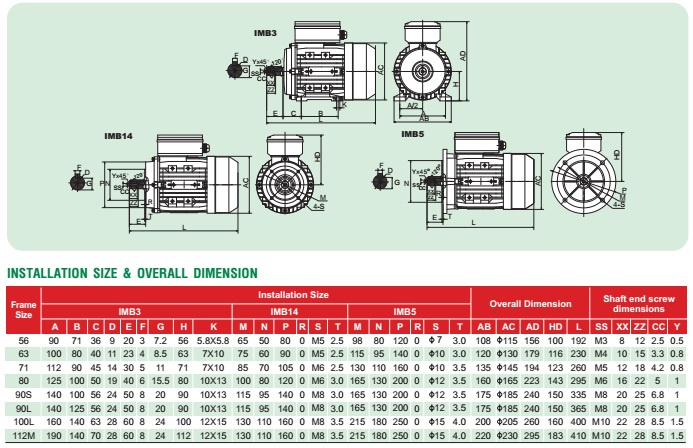

Frame Size: H71~H112

OPERATING CONDITIONS
Ambient Temperature: -15ºC≤ θ ≤ 40ºC
Above Sea Level: not exceed 1000m
Rated Voltage: 220 V, 110V~240V is available
Rated Frequency: 50Hz or 60Hz
Insulation Class: Class B/F
Protection Class: IP54/55
Duty:S1

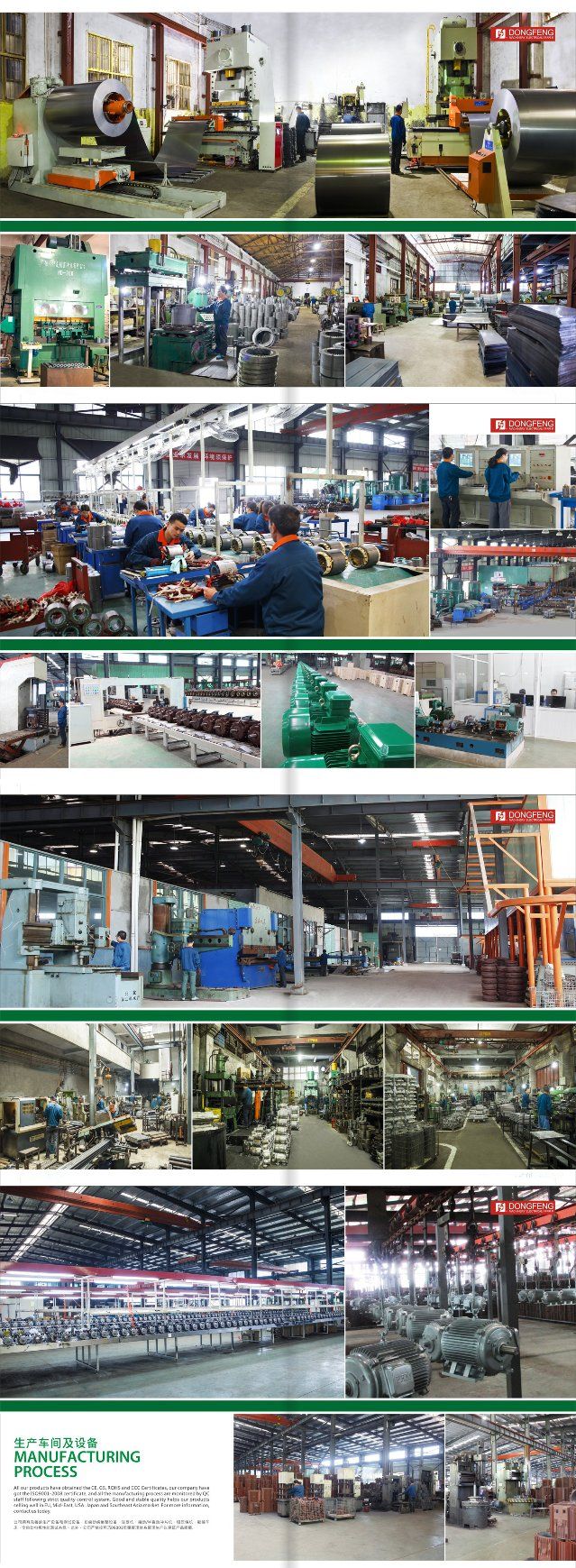

Since 1993, Fujian Dongfeng Machinery Electrical Liability Co., Ltd., as a professional electric motor manufacturer, has won a good reputation in the domestic and international market. We specialize in more than 20 series of electric motors based on the IEC standard, GOST standard and the IE1, IE2, IE3 efficiency request. By complying the strict quality control system, we have obtained the I S O 9 0 0 1 certificate, CE, CCC, RoHS certificates and etc. In order to improve the quality of our products and better control the cost in manufacturing, we produce the main spare parts of motors by ourselves, such as motor housing, lamination sheets, stator and rotor sets. And these parts are for exporting as well. Meanwhile, we have established a strong team with professional managing and marketing members, cooperating with experienced technicians to ensure the effective production and services (including OEM and ODM). With the efforts of our team, our monthly output has increase to 20, 000PCS at present. We never expect one-time business; We always look for the stable and long-term partnerships based on the mutual trust, good understanding and the continual support in each other. For more information, welcome to contact us, we will make every effort to be your best partner!
