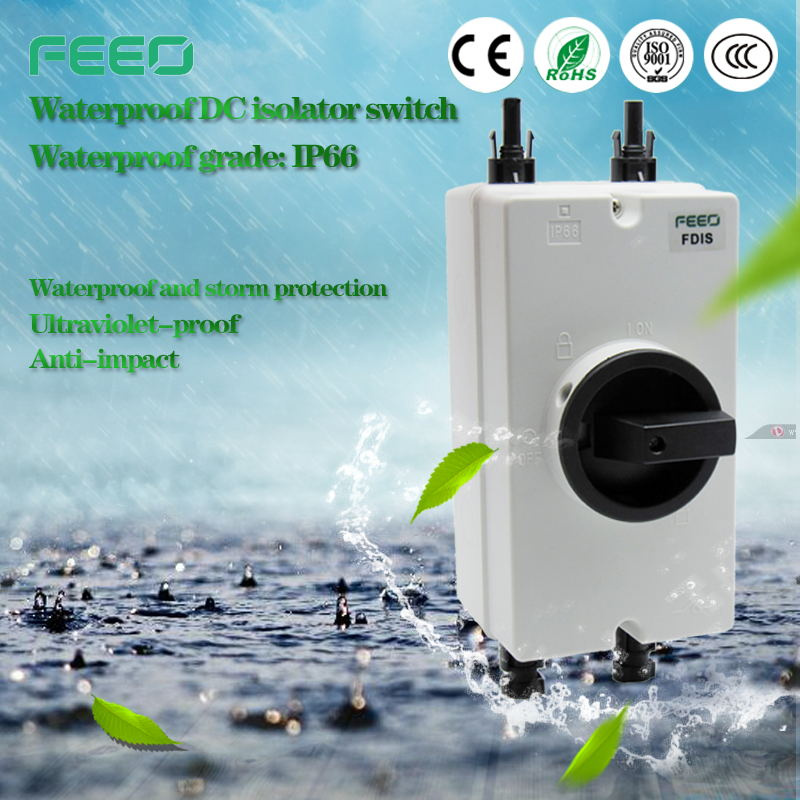

Mc4 Enclosed Rotary Electric 16A 500V DC Solar Isolator Switch

Name: Mc4 Enclosed Rotary Electric 16A 500V DC Solar Isolator Switch
Brand: all-electronics-online.com
SKU: 750080475
Availability: InStock
Rating: 4.3 (71 reviews)

Price:	US $ 20-34/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FDIS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Volatage:	1000VDC
Type:	Low-voltage
Structure:	Three-column Disconnector
Operation:	Manual
Series:	Four
Certification:	CE
Number Of Poles:	4
Run:	Rotary
Common Model:	Fdis
Brand:	Feeo

Product Description

Mc4 Enclosed Rotary Electric 16A 500V DC Solar Isolator Switch

Product Description
Electrical Isolation Switch Features:
1.Compact and suitable were space is limited
2.DIN rail mounting for easy installation
3.Load-breaking up to 8 times rated current making it ideal for motor isolation
4.Double-break with silver rivets-superior performance, reliability and long lasting
5.Highly visible red/yellow handle
6.Large padlockable red/yellow or grey/black handles
7.Comprehensive range, 16 to 32A models
8.High IP 66 rating
9.Easy to install and operate
10.10 years warranty
Electrical Isolation Switch Parameters:

Item	Electrical Isolation Switch
Code	FDIS-32
Rated insulation voltage	1500VDC
Rated heating current	32A
Rated impulse withstand voltage	8000V
Rated short-circuit current	5000A
Protection Degree	IP66
Maximum fuse specifications	80A
Mechanical life	10000
Operating temperature	"-25°"to +70°
Storage temperature	"-40°"to +70°
DC poles	2 or 4
Connection Type	MC4
Class of pollution	2

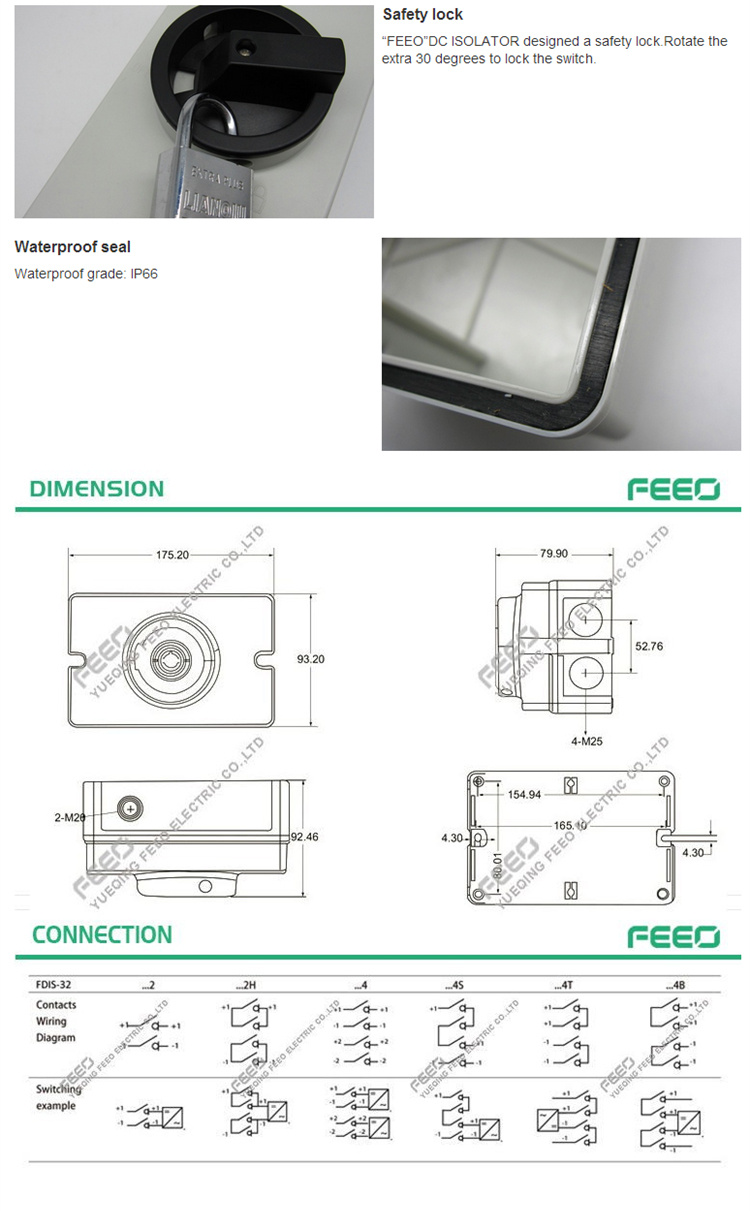

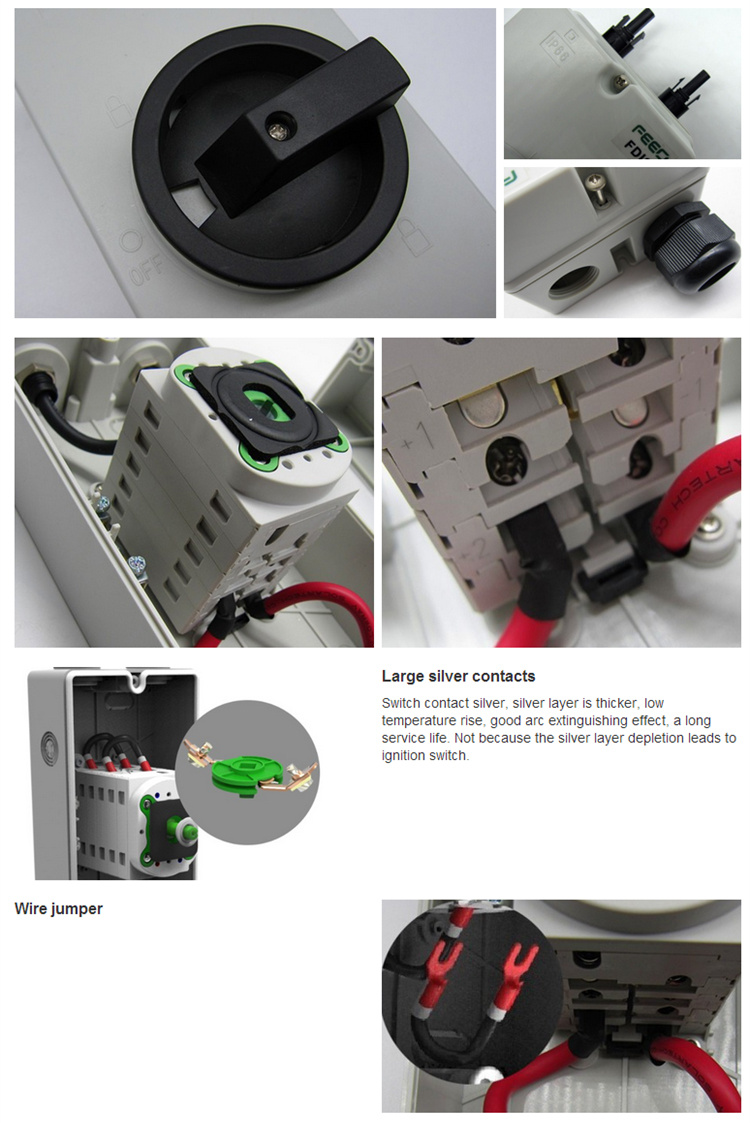

Detailed Images

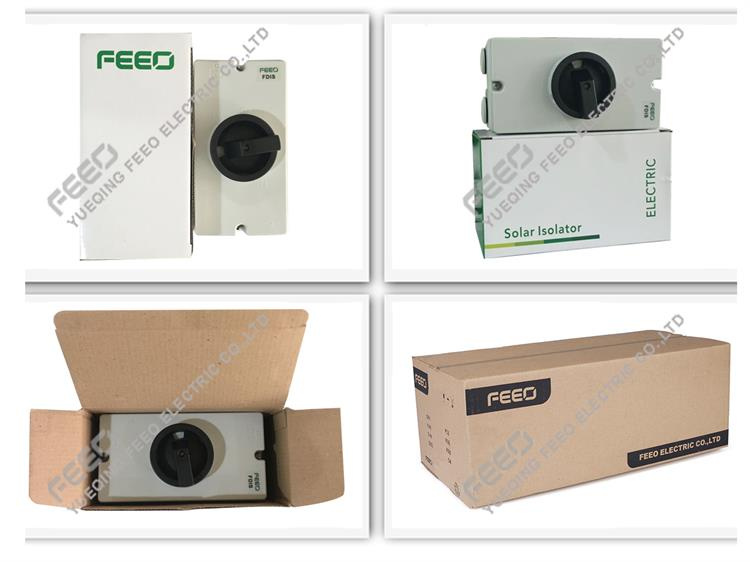

Packaging & Shipping
Electrical Isolation Switch Package:

Standard export carton packing:
DC ISOLATOR with MC4 10pcs/ctn
DC ISOLATOR without MC4 20pcs/ctn
Carton Size 52*40*25CM3

Electrical Isolation Switch Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Electrical Isolation Switch Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Company Information

YUEQING FEEO ELECTRIC CO.,LTD.

is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.

FAQ

Q: If I'm interested in your DC Isolator when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 24hours.

Q:Your DC Isolator seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!

A: Our DC Isolator is IP66 degree and they are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.

Q:Can I get a sample before the order because I really don't how is your DC Isolator quality?

A:Of course!We also think sample order is the best way to build the trust.

Q:How's the delivery?Because I really need them is urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty period for your DC Isolator?

A:We offer one year warranty for our customer.
