Mc4 Solar Panel Mount Connector for Solar System

Name: Mc4 Solar Panel Mount Connector for Solar System
Brand: all-electronics-online.com
SKU: 821516915
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	US $ 0.4-1/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC4
Application:	Power
Gender:	Female and Male

Product Description

1: Description

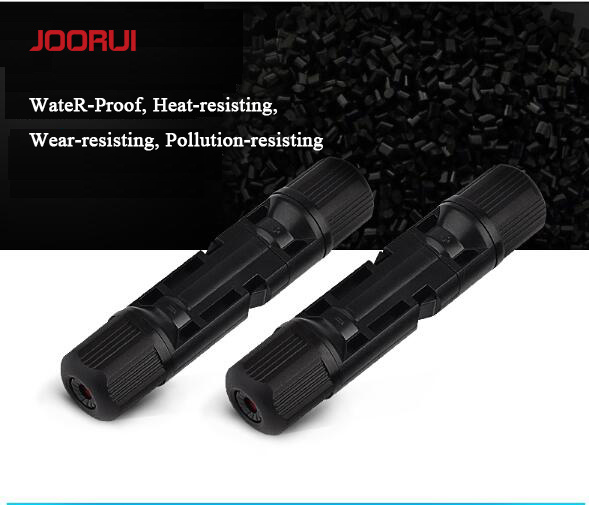

1: These are MC4 Style Branch Connector Cables which are approved by CE, TUV. This MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.
2. This MC4 solar panel connector has an auto-lock structure to connect reliably
3. Eligible PPO material, has marvelous performance of high-low temperature, fireproof, anti-ultraviolet rays and applied to the long-time operation outside.
4. The assembly process is convenient, safe, easy and firm.
5. With big current and high voltage load capability
6. Our connector is with the lowest contact resistance:0.4mΩ,which enable it to work more efficiently and more power-saving.

2: Parameters

Product Name	MC4 Solar Connector	Case Material:	PPO Insolation
Connect Way:	Press Connect	Inside Core Material:	Copper plated zinc
Plug resistance	0.4MM Ohm	Water Proof Grade:	IP67
Use for Wire Size:	2.5/4/6mm2	Rated Voltage:	≤DC1000V
Test Voltage:	DC6000V	Raged Current:	≤30A
Tempreture Range:	-40 °C~+125°C	Polluted Grade:	CAT III/2

3: Contact Information

Yueqing JiuRui Electric Co., Ltd is a professional large-scale manufacturer of all types of Electronic Products, Integrates development and manufacturing in -house. The main products of our company are MCCB, ATS, PANEL METERS, power supply, circuit breakers, industrial Plug and Socket, cable ties, surge protection device, hose power inverter and so on. Our company have many years of history in the electronic products. Located In Yueqing, Wenzhou, near Ningbo, we enjoy convenient water, land and air transportation.

Yueqing JiuRui Electric Co., Ltd introduced advanced technology, imported advanced equipment and employs experienced technical and management personnel. Currently, our products have already exported to France, Australia, Philipine, Thailand, MID-East, Africa and 20 other countries and regions.

Yueqing JiuRui Electric Co., Ltd has always focused on research, development and innovation, We provide High quality and favorable price. We' re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
