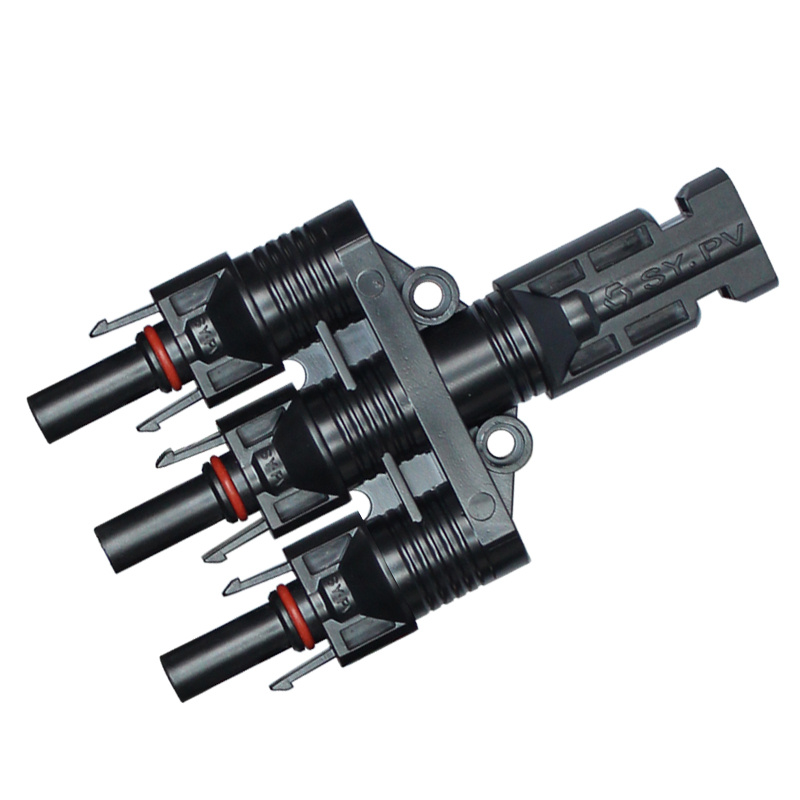

Mc4 T Type 3 to 1 Solar Branch Connector

Prod Model:	004
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Housing Material:	PPO
Rated Voltage:	TUV 1000V DC /UL 600V
Current:	30A
Contact Material:	Copper, Tin Plated
Contact Resistance:	Less Than 0.5 M Ohm
Degree Of Protection:	IP68
Pollution Degree:	2
Protection Class:	Class II
Flame Calss:	UL94-V0
Plug Force:	Less Than 50n
Type:	Socket Terminals
Material:	Copper
Application:	Solar Power System
Certification:	TUV,CE,RoHS
Brand:	Leader

Product Description

Product description:

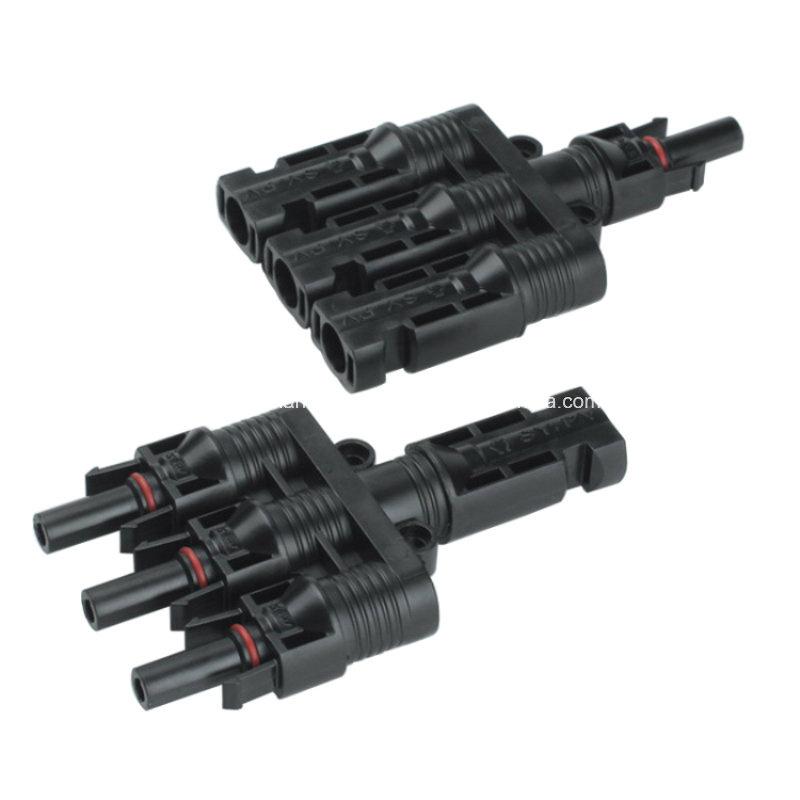

Come in pairs ( 1 pair = 1 pcs male connector + 1 pcs female connector)
Suitable to solar cable, 2.5mm, 4mm2, and 6mm2. Easy , quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
1.Auto-lock enable connection more easy and reliable.
2.Popular figure suit most of field installation.
3.Simple and quick parallel wiring solution for solar panels.
4.Waterproof, fireproof and dustproof.
5.Shell has strong anti-aging and anti-UV capability.
6.Excellent performance in high/low temperature.
7.Long life.

Insulation material:	PPO
Rated Voltage	TUV 1000 DC/ UL 600V DC
Test voltage	6KV(50Hz,1Min)
Contact material	copper, tin plated
Contact resistance	less than 0.5 m ohm
Degree of protection	IP68
Pollution Degree	2
Protection class	Class II
Flame calss	UL94-V0
Plug Force	less than 50N
Withdrawal force	more than 50N
Ambient temperature range	-40  ~ +  90.
Compatible cable cross sections  Solar cable	2.5mm² ,4.0 mm² and 6.0 mm² (14 awg,12awg,10awg)
Pin dimention	4.0mm

Our service:

We will give you a best service.
1) Reply inquiry in 24 hours.
2) Answer your questiong detailed.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which items you are interested & the reasonable price will be provided you upon.


FAQ:

Q: Is sample available and free?
A: Sample is avaible and free, but the freight cost should be pay by you.
The freight cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q: What's the delievery time?
A: It usually takes 4-27 days after confirming payment, but specific time should be based on the order quantity.
