MCB DC 2p 63A 250V 500V 1000V Curve C Miniature Circuit Breaker DC Breaker for Solar Panels PV System
| Price: |
US $ 5.56/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MRL7-63 |
| Product Name: |
MCB DC 2p 63A 250V 500V 1000V Curve C MCB |
| Votage: |
440V 550V 800V 1000V 1200V |
| Ampes: |
6,10,16,20,25,32,40,50,60A |
| Pole: |
1p,2p,3p,4p |
| Curve Type: |
C |
| Trip Type: |
Thermal-Magnetic |
| Installation Category: |
Class III |
| Pollution Level: |
3 |
| Installation Environment: |
No Obvious Shock and Vibration |
| Ambient Tempersture: |
-20--70 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
SAA |
| Poles Number: |
1/2/3/4p |
Product Description
MCB DC 2P 63A 250V 500V 1000V Curve C Miniature Circuit Breaker DC Breaker for Solar Panels PV SystemDC Circuit Breaker DescriptionMRL7 PV DC breaker supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protaction is already providedd or not required. Devices are designed for direct current(DC) control circuit applications.
DC Circuit Breaker Technical Parameter:| Item | DC MCB |
| Code | MRL7-63 |
| Pole | 1P | 2P | 3P | 4P |
| Voltage | 250VDC | 550VDC | 800VDC | 1000VDC |
| Current | 1A,3A,6A,10A,16A,20A,32A,40,50A,63A |
| Standard | IEC/EN60947 |
| Breaking Capacity | 6KA,10KA |
| Characteristic Curve | B,C,D |
| Working Temperature | "-5°"to +40° |
| Protection Degree | IP20 |
| Electrical life | More than 8000times |
| Mechanical life | More than 2000times |
| Dimension(W)X(H)X(D) | 18X80X71 | 36X80X71 | 54X80X71 | 72X80X71 |
| Installation | 35MM DIN RAIL |
| Accessory | YES |
| Installation Altitude | ≤2000M |

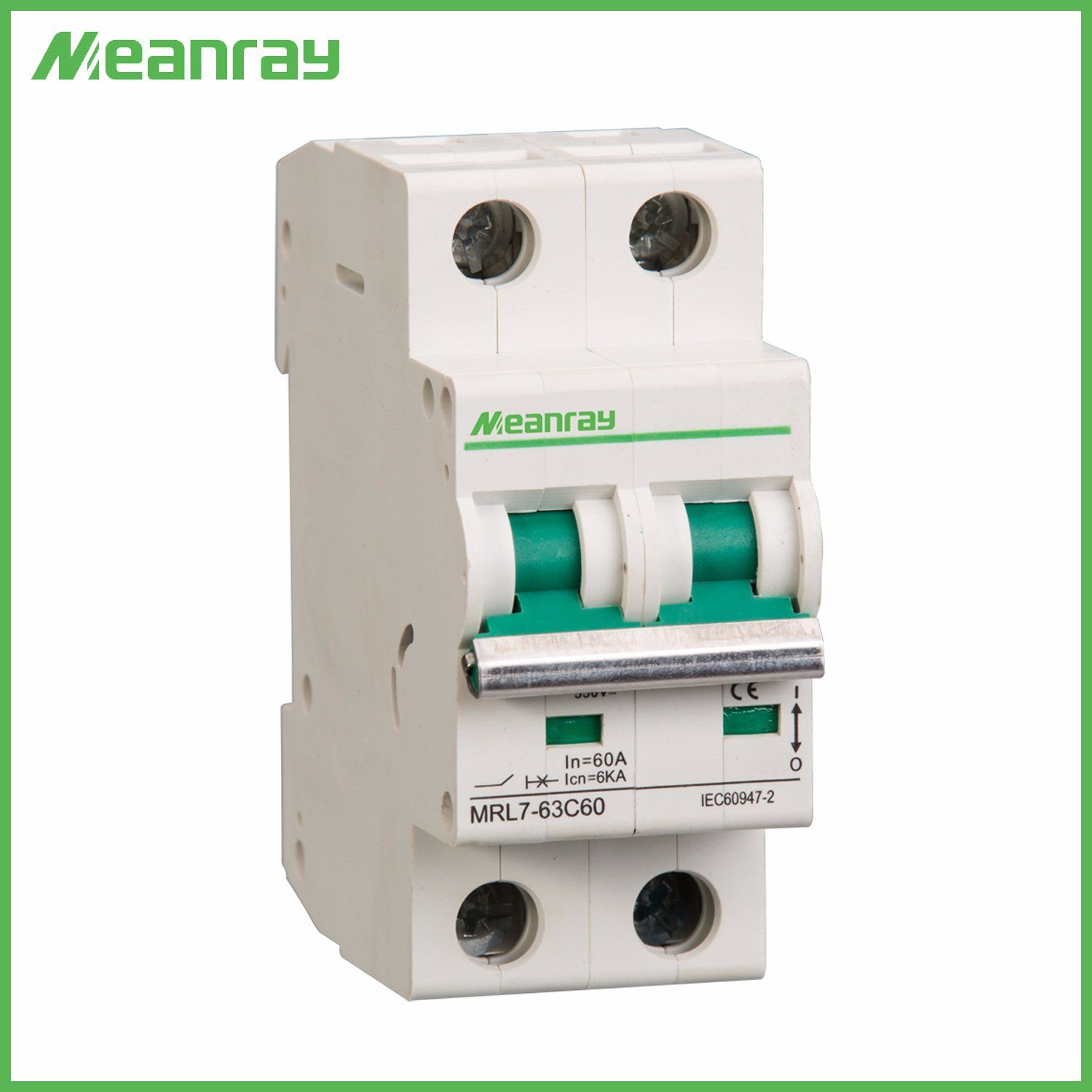

DC Circuit Breaker Detailed Image:

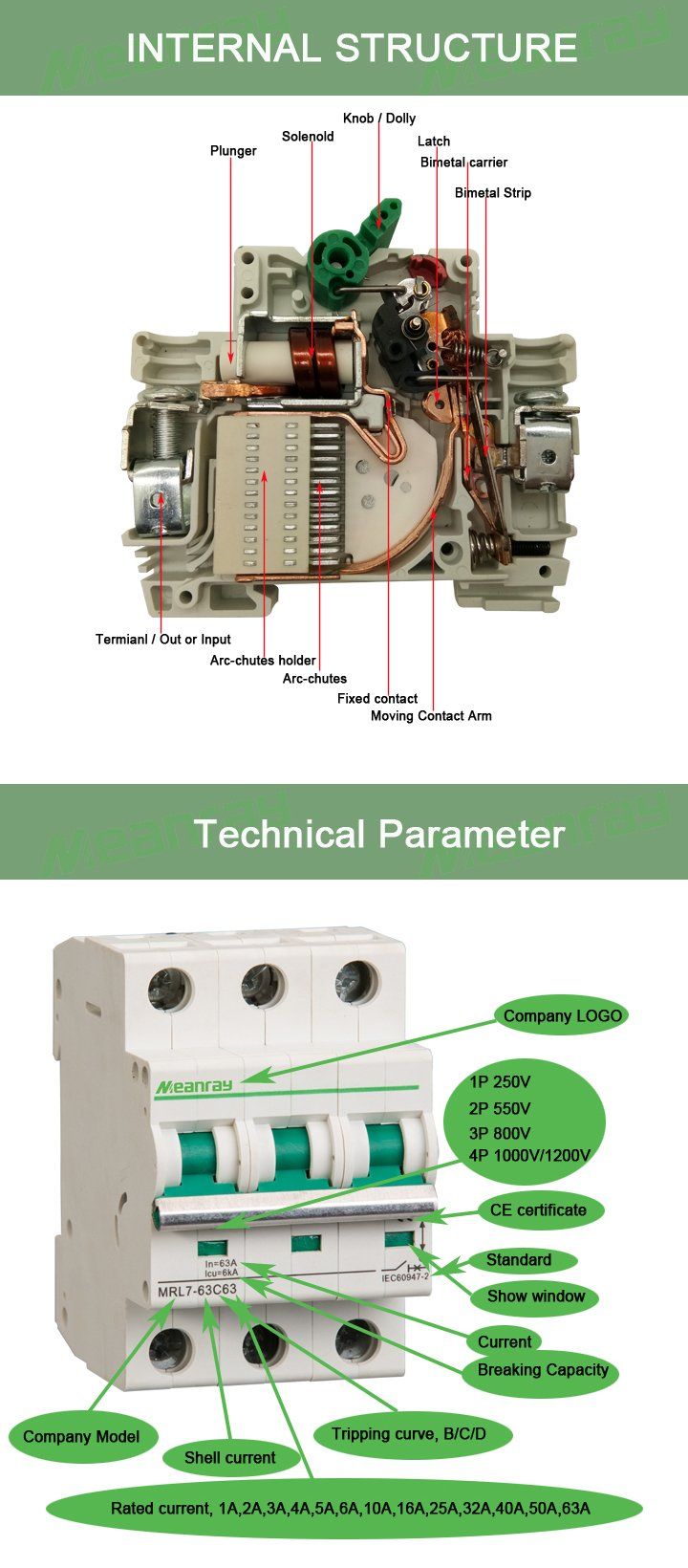

DC Circuit Breaker Internal structure:

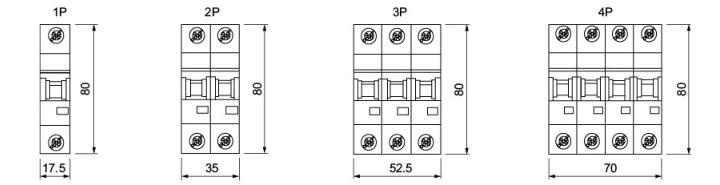

DC Circuit Breaker Dimensions:
DC Switch Workshop:
DC Switch Package:

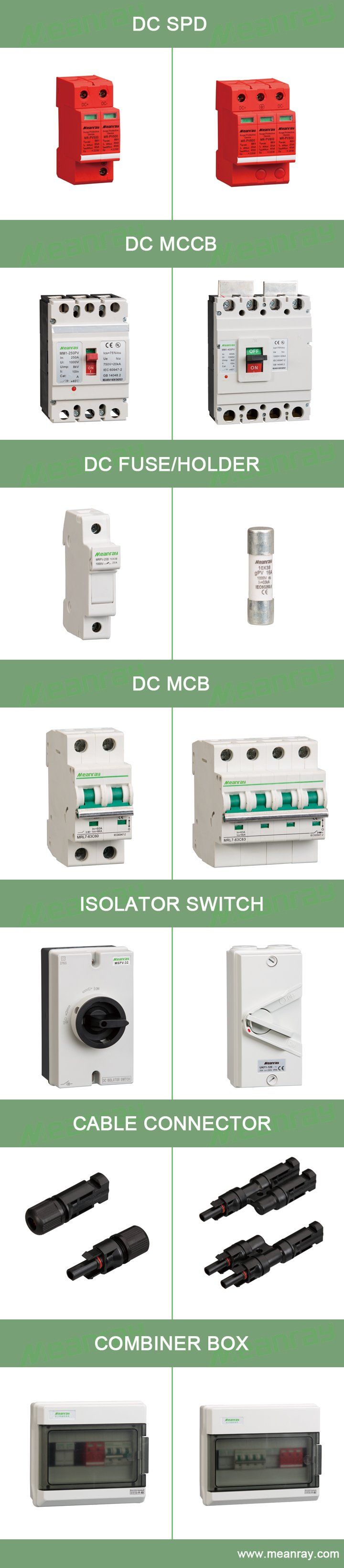

Related Products:
FAQ For MRL7-63:
Q: If I'm interested in your DC MCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your DC MCB seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: Our DC MCB is special for Solar system all the parts in the MCB are high quality customized.Not all the DC MCB are Solar MCB!
Q:Can I get a sample before the order because I really don't how is your DC MCB quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order we have stock.And for regular order we promise in 15days.
Q:How's the warranty period for your DC MCB?
A:We offer two year warranty for our customer.
Zhejiang MEANRAY is committed to the field of new energy, specializing in solar photovoltaic and wind power products. It is a company which engaged in research and development, production, sales and after-sales. After years of intensive development in the field of new energy and electrical industry, it has become the main manufacturer of new energy electrical appliances in China, and has become the international famous brand OEM partner.
The wide range products under our manufacturing covers DC Circuit Breaker, Surge Protector Device, DC MCCB, Fuse, Isolator switch, PV Combiner box, Solar Cable, MC4 Connector, Distribution Box and Switch. All products are in strict accordance with the international Electrotechnical Commission standards and national and industry standsard production. Products have passed CE, CB, SAA, NEMKO, VDE, CCC certificates. Products are widely used in solar power, wind power, metallurgy, electromechanical, railway, ship, port, petrochemical, iron and steel, coal mines, residential areas, shopping malls and other industries of power supply control system.
The company has a modem management team and scientific research personnel. In line with people-oriented, relying on new technology and new products, adhere to the excellent quality and advanced products performance to meet the constantly changing market demand. Now has exported to Europe Spain, Italy, Holland, Southeast Asia, Australia, the Middle East and other international markets.
In the face of a new future, the company will adhere to the purpose of "honesty, steadfast, quality and trust", relying on advanced modern enterprise management, deepening the internal management of enterprises, comprehensively promoting the quality assurance system, and developing the spirit of "serving customers". Adhering to the concept of "service and trust", the professional service team participates in the whole process. Strive to bring high quality shopping experience to each customer. Strive to create a new era of shopping.
Save limited energy, clean the world...MEANRAY together with you.
