MCB Good Quality Auxiliary Shunt Release (EKM1-MN+MV) Circuit Breaker Auxiliary

Name: MCB Good Quality Auxiliary Shunt Release (EKM1-MN+MV) Circuit Breaker Auxiliary
Brand: all-electronics-online.com
SKU: 746302355
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKM1-MN+MV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Frequency:	50/60Hz
Brand Name:	Chana
Export Market:	Global
Packing Type:	Box
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	TUV

Product Description

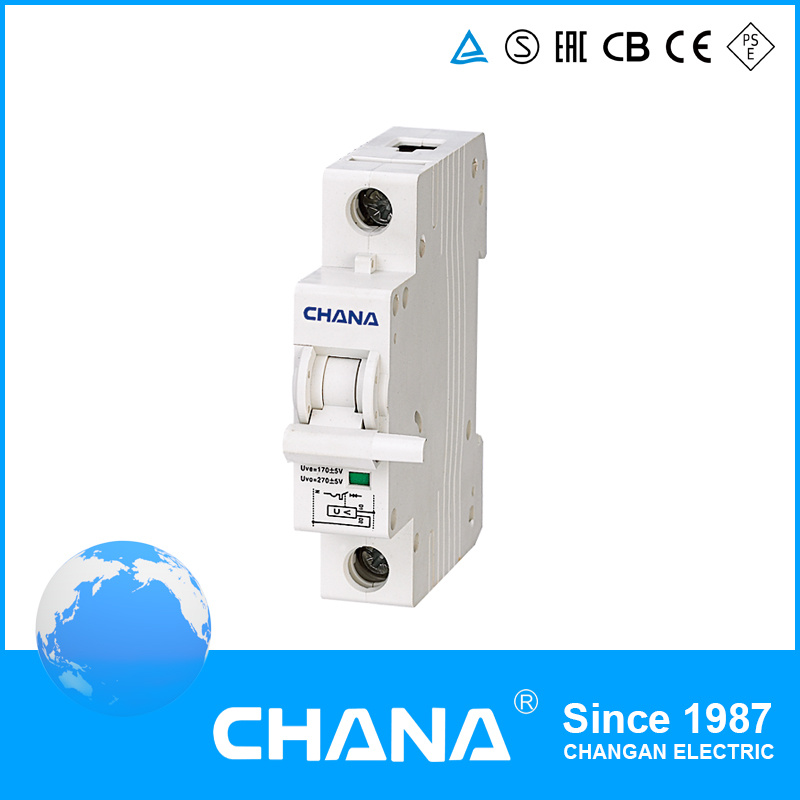

EKM1-MN+MV
Rated insulating voltage(Ui): 500V
Over-voltage tripping range: 280V± 5%
Under-voltage tripping range: 170V± 5%
Mounted on the right side of circuit breaker, actuate the combined
Device to trip in case of under-voltage or over-voltage, effectively
Prevent the device from closing operation under abnormal power
Voltage condition.
Mechanical Features
Electrical life: 4, 000
Mechanical life: 4, 000
Protection degree: I P20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation
Terminal connection type: Cable
Terminal size top/bottom for cable: 2.5mm2 18-13AWG
Tightening torque 0.8 N*m 7In-Ibs.

Item	Data
Contact operating	AC: Un=415V In=3A Un=240V In=6A
current	DC: Un=130V In=1A Un=48V In=2A Un=24V In=6A
Dielectric Properties	Auxiliary contact should bear 2000V,
Dielectric Properties	1 min frequency voltage withstand test.
Life	The operating life of auxiliary contact
Life	shall never be less than 5000 times.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
