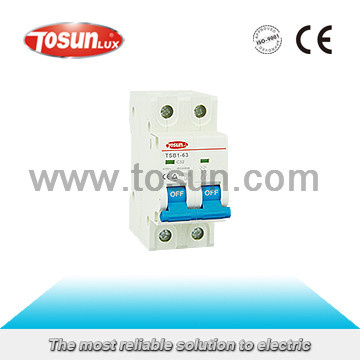

MCB Miniature Circuit Breaker with CB TUV Ce Certificate

Name: MCB Miniature Circuit Breaker with CB TUV Ce Certificate
Brand: all-electronics-online.com
SKU: 752315265
Availability: InStock
Rating: 4.8 (35 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSB1-63 2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Degree:	IP20
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Certification:	TUV, CB
Installation:	DIN Rail
Poles Number:	1,2,3,4
Function:	Overload and Short-Circuit Protection

Product Description

Application

TSB1-63 miniature circuit breaker is used for overload and short-circuit protection in lighting distribution system or motor distribution system. The product is neoteric in structure, light in weight, reliable and excellent in performance.
It has high breaking capacity which can trip quickly, also it adopts high fire-resistant and shockproof plastics. The products comply with IEC 60898 and have been certificated by CB, TUV and CE.

Specification

Number of Poles	1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated Current(A)	6,10,16,20,25,32,40,50,63
Breaking Capacity	6000A
Rated Voltage	1P: 240/415V 2P, 3P, 4P: 415V
Rated Frequency	50/60Hz
Endurance	>=4000
Circumstance Temperature	-5ºC~+40ºC
Electrical Life	No less than 6000 operations
Mechanical Life	(O-C) no less than 20000 operations
Protection Degree	IP20

Dimensions

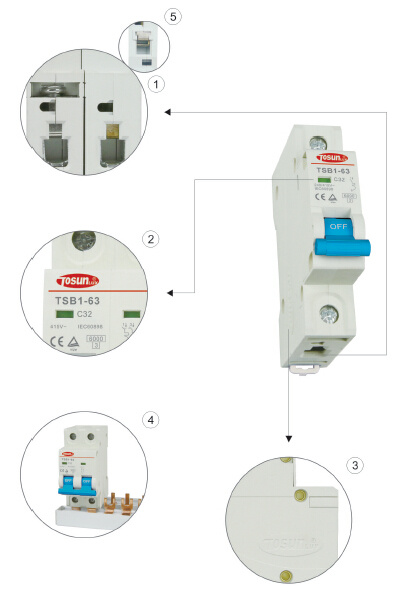

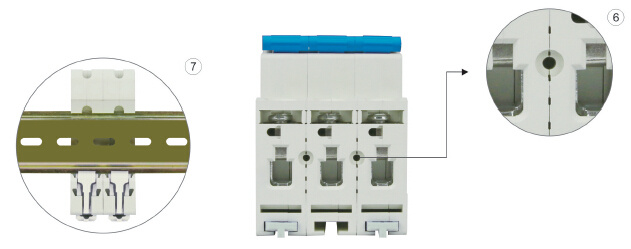

Features

1. Available three models for choice. TSB1-63
A: produced with pin type and fork type busbar jacks on both sides

B: produced with pin type and fork type busbar jacks on one side while only pin type busbar jack on the other side
C: produced with only pin type busbar jack on both sides

2. Indication of contacts' state Marking of circuits possibility

3. Clients' logo can be embossed on the case as per requirement

4. Type of busbar: Pin type and Fork type

5. Design of common MCB

6. Multi-polar cooling system to decrease temperature rising

7. Two methods of mounting: Din Rail and Screw
