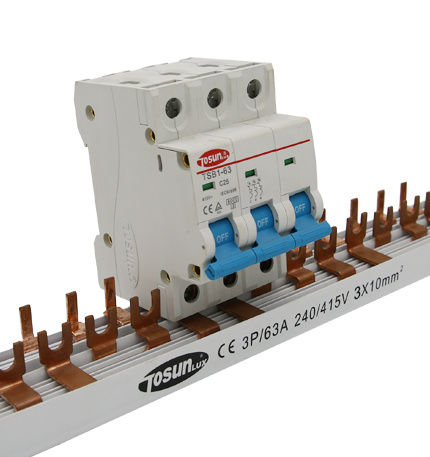

MCB Miniature Circuit Breaker with Fork Busbar Terminal

Name: MCB Miniature Circuit Breaker with Fork Busbar Terminal
Brand: all-electronics-online.com
SKU: 752163915
Availability: InStock
Rating: 5 (72 reviews)

Price:	US $ 1.7-3.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSB1-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Number Of Poles:	1p, P+N, 2p, 3p, 3p+N, 4p
Rated Current (a):	6, 10, 20, 25, 32, 40, 50, 63
Rated Voltage:	1p: 240/415V; 2p, 3p, 4p: 4115V
Rated Frequency:	50/60Hz
Endurance:	≥4000
Circumstance Temperature:	-5°c~+40°c
Electrical Life:	≥6000operations
Mechanical Life:	(O-C) ≥20000operations
Protection Degree:	IP20
Certificate:	CE
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Certification:	TUV
Poles Number:	1, 2, 3, 4

Product Description

Specification of TSB1-63 Miniature Circuit Breaker

Number of Poles	1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated Current (A)	6, 10, 16, 20, 25, 32, 40, 50, 63
Breaking Capacity	6,000A
Rated Voltage	1P:240/415V 2P, 3P, 4P: 415V
Rated Frequency	50/60Hz
Endurance	≥4,000
Circumstance Temperature	-5ºC~+40ºC
Electrical Life	No less than 6,000 operations
Mechanical Life	(O-C) No less than 20,000
Protection Degree	IP20

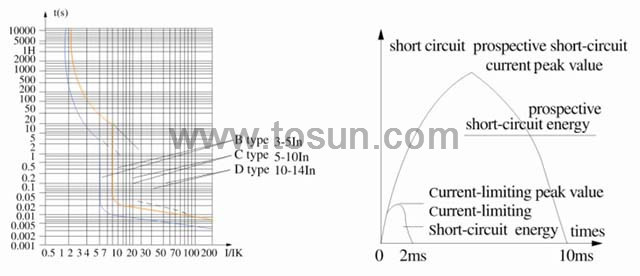

Characteristic Curve

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

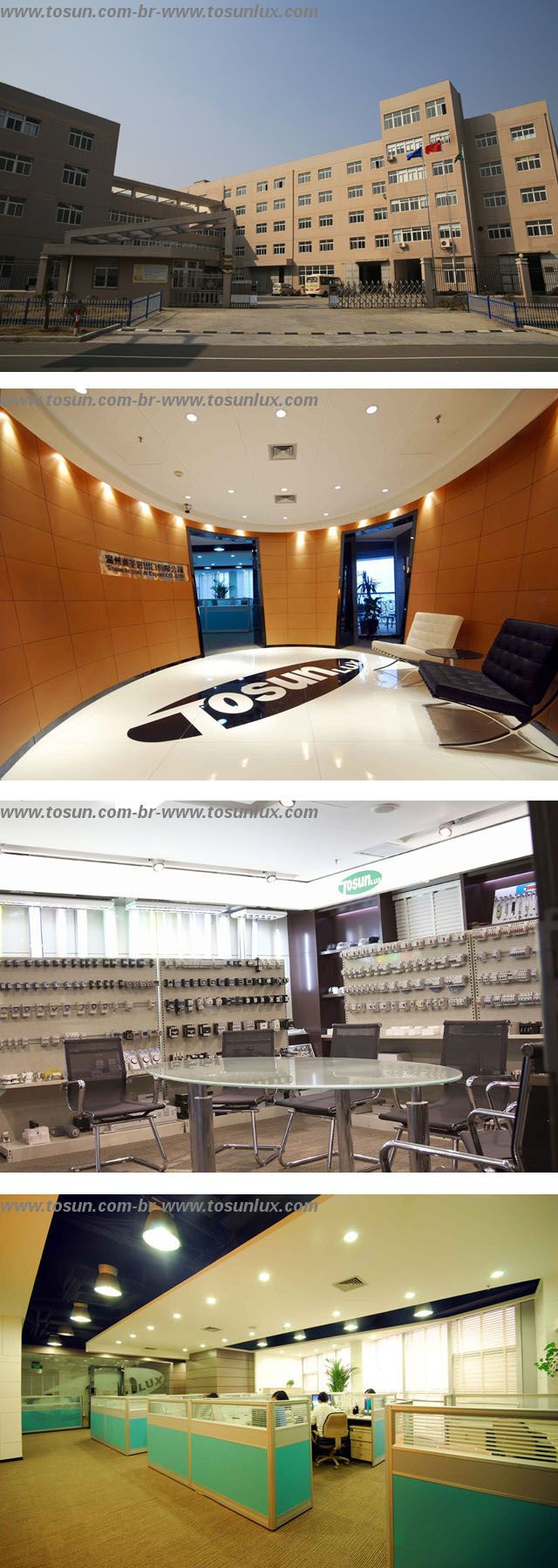

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
