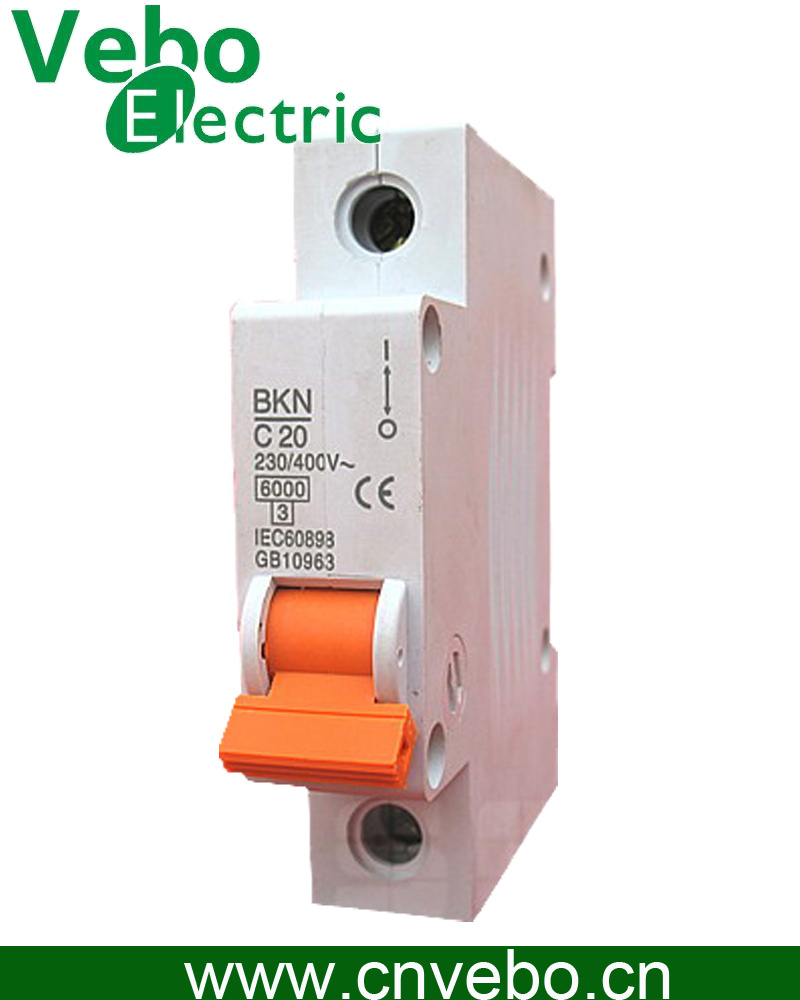

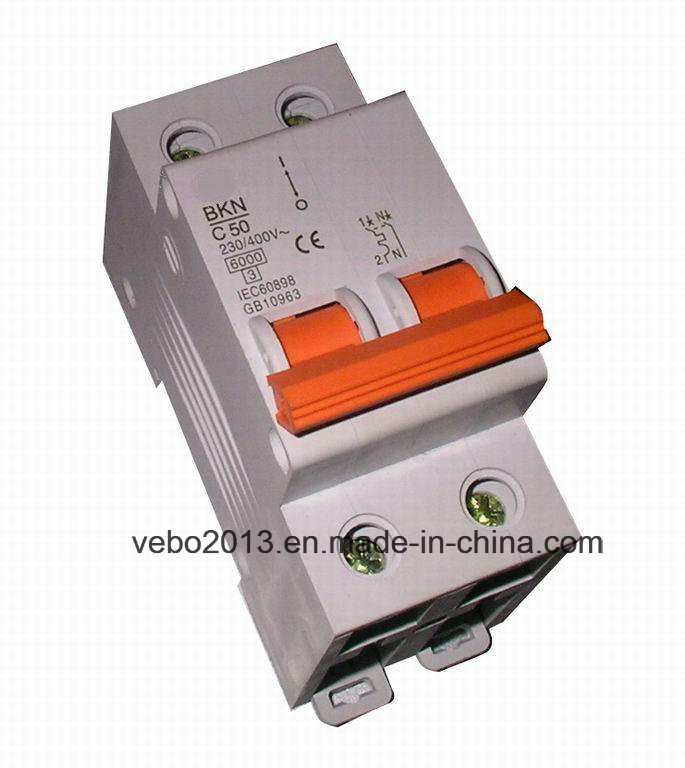

MCB Outlet Mini Circuit Breaker (BKN)

Name: MCB Outlet Mini Circuit Breaker (BKN)
Brand: all-electronics-online.com
SKU: 783414625
Availability: InStock
Rating: 4.3 (65 reviews)

Price:	US $ 2.60-2.90/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BKN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Good Quality:	All Good Materials
High Breaking Capacity:	6ka or 10ka
Inner Material:	Copper and Silver Point
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Poles Number:	2
Certification:	CCC

Product Description

Product Details
Basic Info.

Model NO.: BKN
Pole No.: 1P
Type: Miniature Circuit Breaker
Operation: Manual Type
Arc-extinguishing Medium: Air
Export Markets: Global

Rated Voltage : 230V
Rate frequency : 50/60 HZ
Rate current : 25A

Product Function:
1,Short circuit protection
2,Over current protection
3,Isolation function

Magnetic Tripping Characteristics: B(1-5ln), C (5-10ln), D (10-15ln)

Operation capacity of short circuit(ICS): 6000
Rated capacity of short circuit(ICU): 6000

Standard: IEC60898/GB10963
Product certification : ISO9001 , CCC , CE , CB , GMC , TUV , RoHs

Connection type : Tunnel style, Pin style , U style
Installation styles : Standard 35mm guide

Fiducial temperature : 30°C
Environment temperature : -35 °C ~+70 °C
Protection degree : IP20

Mechanical life : 10000
Electrical life : 6000

Additional Info.
Trademark: VIBBA or OEM
Packing:120PC/CTN
Origin: Wenzhou China
HS Code:853620000
Production Capacity: 50,000PCS/Week
Color: According to Customer Requirement
Inner Material: Copper or According Customer Need

Product Description

Application:
BKN series circuit breaker belong to the advanced level of the nineties in the world instead of the older generation of kl7. They are used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system.
The product is nineties in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics.
The product, with long life, is mainly used in AC 50Hz/60Hz single pole 230V or two, three, four poles 400V circuit for overload and short-circuit protection as well as for unfrequented on and-off switching electric equipment and lighting circuit in normal case.
The products Comply with IEC 60898. They are also used in industry,commerce and dwelling, and protect fractional electric motors.

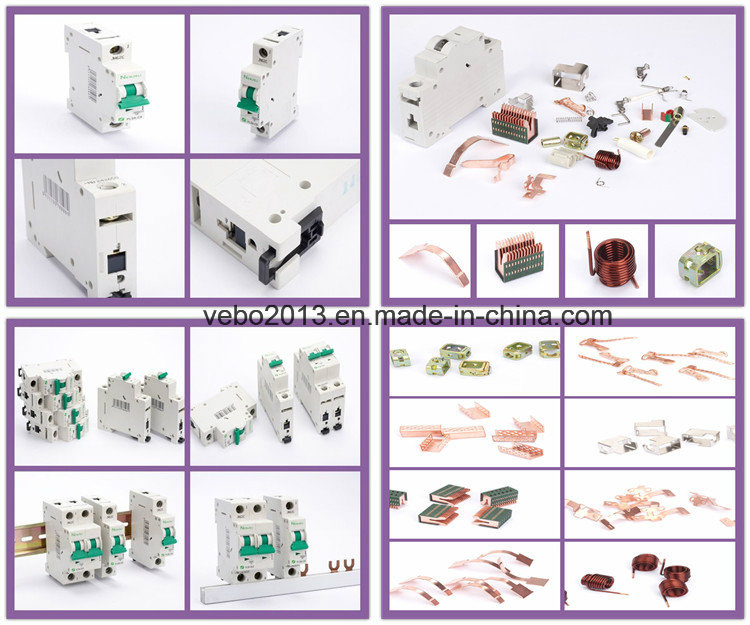

Product Pictures

Packing Detail:
1. Product Net weight: 105g/pole
2. Packing quantity& Weight: 12 pole /box, 10 box/carton, 120 pole/carton.
3. N. W: 13kg/carton
4. G. W: 15kg/carton
5. Packing Measurement: Inner box 22.5× 9× 8 cm, Carton 45× 23× 18cm ( ie.0.019 CBM)
6. 20 foot container (26 CBM): 156,000 pole 1,300 cartons
7. 40 foot container (54 CBM): 324,000 pole 2,700 cartons

About US:
Yueqing Vebo international Co.,Ltd specializing in the R&D, manufacture and sale of low voltage electric applicants, such as MCB, MCCB, RCCB, Indicators,AC contactors and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1.We already get the certificate of ISO9001, CE, SGS.
2.We have 5 years of manufacture and exporting experience.
3.We have completely sales service system, ensure every detail is going smooth.
4.We have new designed products each year by our R&D Department.
5.Perfect testing system ensure each product is qualified.
6.We have a good reputation in India, Pakistan, Bengal, Thailand, south American,Mid-east market and so on.

How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.

Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not
customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.

Warranty:
1.We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

Item Name	BKN
Standard	IEC60898/GB10963
Product Certifications	ISO9001 , CCC , CE , CB , GMC , TUV , RoHs
Product Function	Short circuit protection, Over current protection, Isolation function
Number of Poles	1P,2P,3P
Rated Current(A)	16,20,25,32,40,50,63
Breaking Capacity(A)	6KA or 10KA
Rated Voltage(V)	230/400
Rated Frequency	50/60HZ
Endurance	≥10000
Circumstance Temperature	-35 °C ~+70 °C
Electrical Life	No less than 6000 operations
Mechanical Life	no less than 10000 operations
Protection Degree	IP20

Warranty:

1.We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

IEC and CE Approved 6ka/10ka L7 Type Circuit Breaker

MCB BKN
In	Code			QTY/Box
In	B curve	C curve	D curve	QTY/Box
1P 6KA
1A	1M61B01	1M61C01	1M61D01	180
2A	1M61B02	1M61C02	1M61D02	180
3A	1M61B03	1M61C03	1M61D03	180
4A	1M61B04	1M61C04	1M61D04	180
5A	1M61B05	1M61C05	1M61D05	180
6A	1M61B06	1M61C06	1M61D06	180
10A	1M61B10	1M61C10	1M61D10	180
16A	1M61B16	1M61C16	1M61D16	180
20A	1M61B20	1M61C20	1M61D20	180
25A	1M61B25	1M61C25	1M61D25	180
32A	1M61B32	1M61C32	1M61D32	180
40A	1M61B40	1M61C40	1M61D40	180
50A	1M61B50	1M61C50	1M61D50	180
63A	1M61B63	1M61C63	1M61D63	180
In	Code			QTY/CTN
In	B curve	C curve	D curve	QTY/CTN
1P+N 6KA
1A	1M61NB01	1M61NC01	1M61ND01	90
2A	1M61NB02	1M61NC02	1M61ND02	90
3A	1M61NB03	1M61NC03	1M61ND03	90
4A	1M61NB04	1M61NC04	1M61ND04	90
5A	1M61NB05	1M61NC05	1M61ND05	90
6A	1M61NB06	1M61NC06	1M61ND06	90
10A	1M61NB10	1M61NC10	1M61ND10	90
16A	1M61NB16	1M61NC16	1M61ND16	90
20A	1M61NB20	1M61NC20	1M61ND20	90
25A	1M61NB25	1M61NC25	1M61ND25	90
32A	1M61NB32	1M61NC32	1M61ND32	90
40A	1M61NB40	1M61NC40	1M61ND40	90
50A	1M61NB50	1M61NC50	1M61ND50	90
63A	1M61NB63	1M61NC63	1M61ND63	90
In	Code			QTY/CTN
In	B curve	C curve	D curve	QTY/CTN
2P 6KA
1A	1M62B01	1M62C01	1M62D01	90
2A	1M62B02	1M62C02	1M62D02	90
3A	1M62B03	1M62C03	1M62D03	90
4A	1M62B04	1M62C04	1M62D04	90
5A	1M62B05	1M62C05	1M62D05	90
6A	1M62B06	1M62C06	1M62D06	90
10A	1M62B10	1M62C10	1M62D10	90
16A	1M62B16	1M62C16	1M62D16	90
20A	1M62B20	1M62C20	1M62D20	90
25A	1M62B25	1M62C25	1M62D25	90
32A	1M62B32	1M62C32	1M62D32	90
40A	1M62B40	1M62C40	1M62D40	90
50A	1M62B50	1M62C50	1M62D50	90
63A	1M62B63	1M62C63	1M62D63	90

In	Code			QTY/CTN
In	B curve	C curve	D curve	QTY/CTN
3P 6KA
1A	1M63B01	1M63C01	1M63D01	60
2A	1M63B02	1M63C02	1M63D02	60
3A	1M63B03	1M63C03	1M63D03	60
4A	1M63B04	1M63C04	1M63D04	60
5A	1M63B05	1M63C05	1M63D05	60
6A	1M63B06	1M63C06	1M63D06	60
10A	1M63B10	1M63C10	1M63D10	60
16A	1M63B16	1M63C16	1M63D16	60
20A	1M63B20	1M63C20	1M63D20	60
25A	1M63B25	1M63C25	1M63D25	60
32A	1M63B32	1M63C32	1M63D32	60
40A	1M63B40	1M63C40	1M63D40	60
50A	1M63B50	1M63C50	1M63D50	60
63A	1M63B63	1M63C63	1M63D63	60
In	Code			QTY/CTN
In	B curve	C curve	D curve	QTY/CTN
3P+N 6KA
1A	1M63NB01	1M63NC01	1M63ND01	45
2A	1M63NB02	1M63NC02	1M63ND02	45
3A	1M63NB03	1M63NC03	1M63ND03	45
4A	1M63NB04	1M63NC04	1M63ND04	45
5A	1M63NB05	1M63NC05	1M63ND05	45
6A	1M63NB06	1M63NC06	1M63ND06	45
10A	1M63NB10	1M63NC10	1M63ND10	45
16A	1M63NB16	1M63NC16	1M63ND16	45
20A	1M63NB20	1M63NC20	1M63ND20	45
25A	1M63NB25	1M63NC25	1M63ND25	45
32A	1M63NB32	1M63NC32	1M63ND32	45
40A	1M63NB40	1M63NC40	1M63ND40	45
50A	1M63NB50	1M63NC50	1M63ND50	45
63A	1M63NB63	1M63NC63	1M63ND63	45
In	Code			QTY/CTN
In	B curve	C curve	D curve	QTY/CTN
4P 6KA
1A	1M64B01	1M64C01	1M64D01	45
2A	1M64B02	1M64C02	1M64D02	45
3A	1M64B03	1M64C03	1M64D03	45
4A	1M64B04	1M64C04	1M64D04	45
5A	1M64B05	1M64C05	1M64D05	45
6A	1M64B06	1M64C06	1M64D06	45
10A	1M64B10	1M64C10	1M64D10	45
16A	1M64B16	1M64C16	1M64D16	45
20A	1M64B20	1M64C20	1M64D20	45
25A	1M64B25	1M64C25	1M64D25	45
32A	1M64B32	1M64C32	1M64D32	45
40A	1M64B40	1M64C40	1M64D40	45
50A	1M64B50	1M64C50	1M64D50	45
63A	1M64B63	1M64C63	1M64D63	45

You are warmly welcome into Yueqing Vebo International Co., Ltd.

Your presence is honoured & your any comments/enquiries/suggestions would be appreciated. Established in 2011, We are one younger company with new management and thinking. We are not a big company and never exaggerate, but we have enough conditions to do your works as well as you hope.

1. )never change the raw material or main parts once we agreed,

2. )full order 100% tested exactly according to standard,

3. )finish your order within the lead time,

4. )no any mistake happened on printing, packing, boxes, labels and cartons,

5. )we have regular skilled workers and can finish large quantity order easily.

6. )English communications is available in twenty-four hours.

We heartily hope to establish good relations with you in the coming days!
