| Prod Model: |
RDB2-125S |
| Brand Name: |
People |
| Rated Current: |
63~125A |
| Customized Design: |
Yes |
| Trip Type: |
C Type, D Type |
| Mechanical Life: |
10000 Times |
| Electrical Life: |
2000 Times |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Energy-storage Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CCC |
| Installation: |
DIN Rail |
| Poles Number: |
1p+N |
| Function: |
Shunt Trip, Overload & Shortcircuit Protection |
Product Description

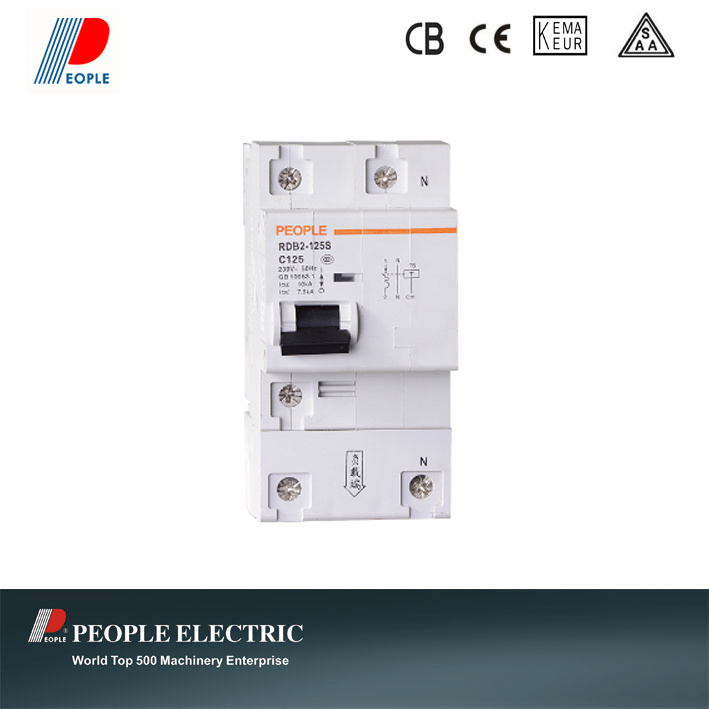

ApplicationRDB2-125s shunt trip miniature circuit breaker. The product is suitable for control circuit, AC50/60Hz, rated working voltage 230V/400V, rated current 125A, Can remotely control close & break of circuit & the automatical signal. Widely used in single phase/ three phases prepay power meter(IC card), can realize close & open of control circuit. With overload & shortcircuit protection for circuit.
It complies with IEC60947-2 standard.
Normal working & installment conditions1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.
Structure feature1. The operation mechanism is energy-storge type free tripping mechanism, with function of contacts quick close, to overcome the negative influence of manual operation speed of handle, can improve product service life obviously. In normal, contacts only stay at closed or open position.
2. High breaking capacity, up to 10KA.
3. Signal control tripper consists of signal input terminal, signal processing system & electromagnetic tripper. To realize remote control of signal via external signal wire.
4. DIN rail to mount, convenient & save time.
5. Small volume, light weight, special outline, modularization, fair use the effective space.
Specification| Rated voltage | 230V |
| Rated current | 63~125A |
| Case current class | 125A |
| Breaking capacity | 10KA |
| According to standands | GB10963.1, IEC60898-1 |
| Mechanical life | 10,000 times |
| Pole Width | 54mm |
| Power frequency withstand voltage(1 min) | 2000V |
Overcurrent delay action characteristic
| No | Setting current | Appointed time | Estimated result | Start |
| In≤63A | In>63A |
| 1 | 1.13In | ≤1h | ≤2h | no trip | cold |
| 2 | 1.45In | <1h | <2h | trip | hot |
| 3 | 5(10)In | T≤0.1s | no trip | cold |
| 4 | 10(14)In | T<0.1s | trip | cold |
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before lading.
