| Prod Model: |
RDX16-63GQ |
| Brand Name: |
People |
| Rated Current: |
6~63A |
| Materials: |
Fire-Resistance ABS, Sliver, Copper, Steel |
| Customized Design: |
Yes |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CCC |
| Function: |
Undervoltage, Overload & Shortcircuit Protection |
| Poles Number: |
1p, 2p, 3p, 4p |
| Installation: |
DIN Rail |
Product Description
Application

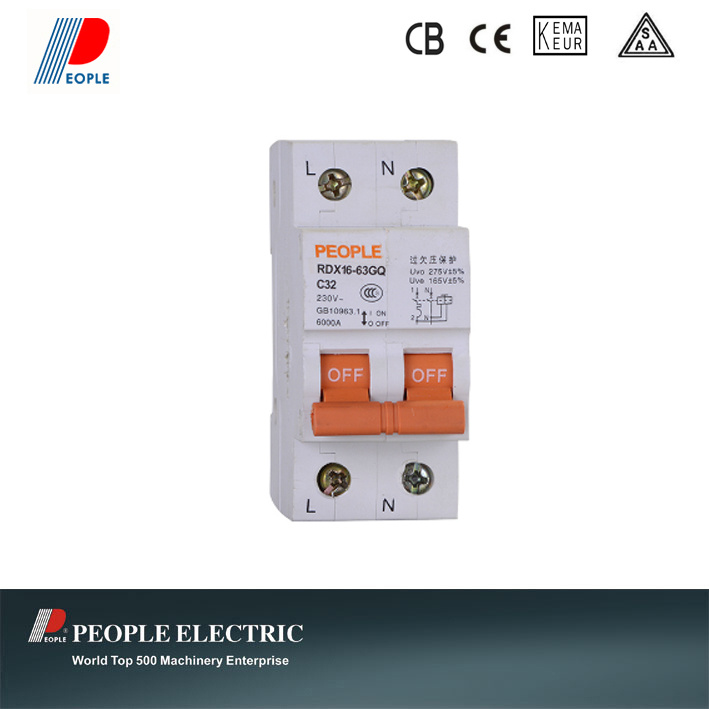

RDX16-63GQ undervoltage miniature circuit breaker. The product is suitable for the control circuit, AC50/60Hz, rated working voltage 230/400V, rated current 63A. With overvoltage, undervoltage, overload & shortcircuit protection for circuit. Unfrequent switching operation under normal conditions.
It complies with IEC60898-1standard.
Normal working & installment conditions
1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.
Specification
| Rated voltage | 230/400V |
| Rated current | 6~63A |
| Case current class | 63A |
| Enclosure protection class | IP20 |
| Breaking capacity | 4.5KA, 6KA |
| Width | 36mm |
| According to standands | IEC60898, GB10963.1 |
Overcurrent tripping feature
| No | Trip type | Rated current In | Setting current | Appointed time(h) | Estimated result | Start |
|
| 1 | C,D | ≤63A | 1.13In | t≤1h | No trip | Cold |
| 2 | ≤63A | 1.45In | Trip | after test 1 |
| 3 | ≤32A | 2.55In | 1s | Trip | Cold |
| 32A | 1s |
| 4 | C | all | 5In | t≤0.1s | No trip | Cold |
| D | 10In | No trip | Cold |
| 5 | C | all | 10In | t≤0.1s | Trip | Cold |
| D | 20In | Trip | Cold |
