| Prod Model: |
RDX2-125S |
| Brand Name: |
People |
| Rated Current: |
40~125A |
| Braeking Capacity: |
6ka |
| Materials: |
Fire-Resistance ABS, Sliver, Copper, Steel |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CCC |
| Poles Number: |
1p, 2p, 3p, 4p |
| Installation: |
DIN Rail |
Product Description
Application

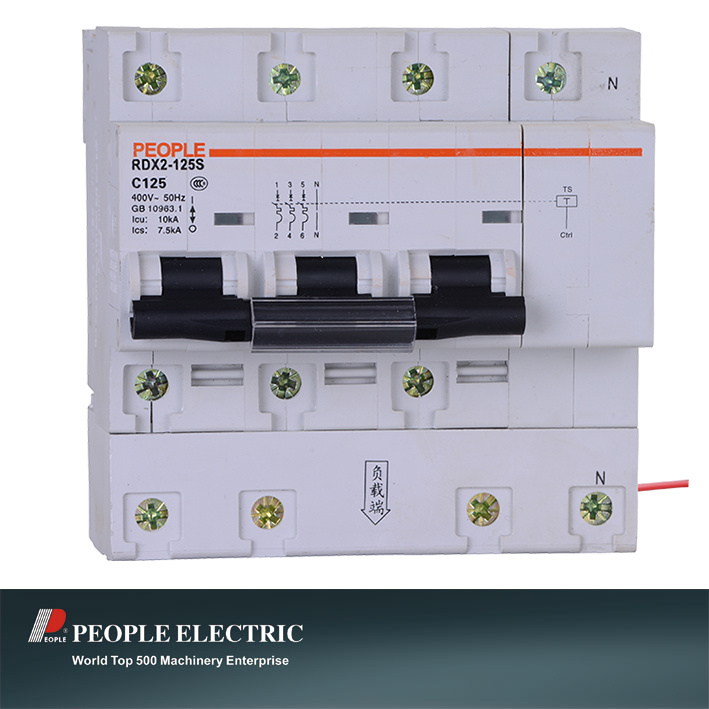

RDX2-125S high breaking capacity shunt release miniature circuit breaker. The product is suitable for the control circuit, AC50/60Hz, rated working voltage 230/400V, rated current 125A. Can remotely control break & automatic signal control break, as well with overload & shortcircuit protection for circuit. Unfrequent switching operation under normal conditions. Widely used in single-phase/three phases smart prepaid power meter(IC card), to realize close& open of control circuit.
It complies with IEC60898-1standard.
Normal working & installment conditions
1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.
Specification
1.Shortcircuit tripping feature: C type 5~10In; D type 10~14In
2.Rated control power source voltage Us: 230V
| Rated voltage | 230/400V |
| Rated current | 63, 80, 100,125A |
| Case class | 125A |
| Breaking capacity | 6KA |
| Signal control tripper action time | 0.5s ≤t<3s |
| Width pole | 54mm |
| According to standands | IEC60898, GB10963.1 |
Overcurrent delay acting feature
| No | Setting current | time(h) | Estimated result | Start |
| In≤63A | In>63A |
| 1 | 1.13In | ≤1 | ≤2 | No trip | Cold |
| 2 | 1.45In | <1 | <2 | Trip | Hot |
| 3 | 5(10)In | T≤0.1s | No trip | Cold |
| 4 | 10(14)In | T<0.1s | Trip | Cold |
