| Prod Model: |
CM1L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
6-3200A |
| Frequency: |
50/60Hz |
| Voltage: |
400V |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description

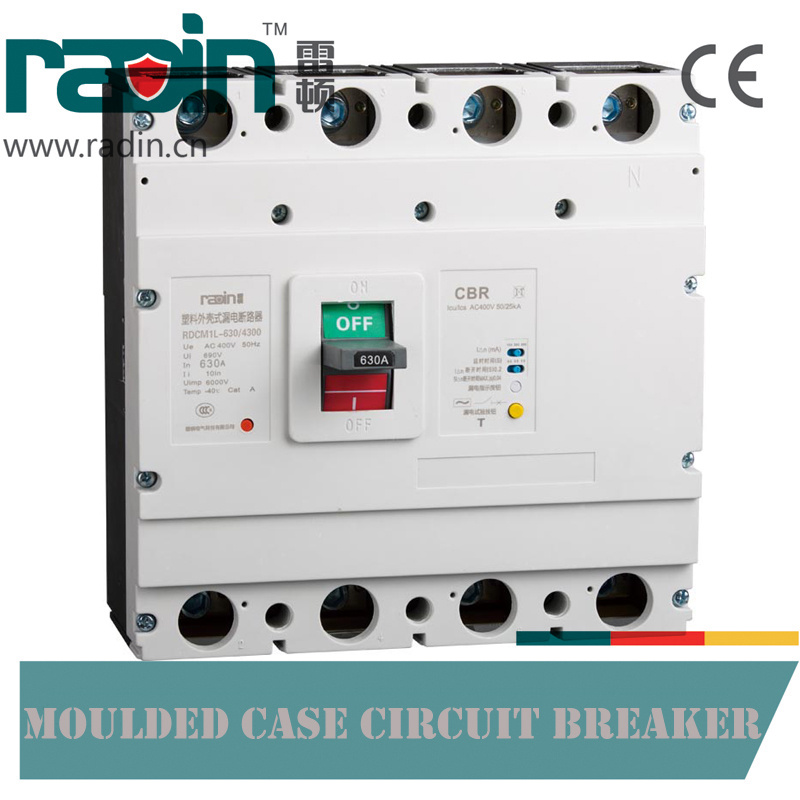

MCCB Circuit Breaker With Earth Leakage Protection

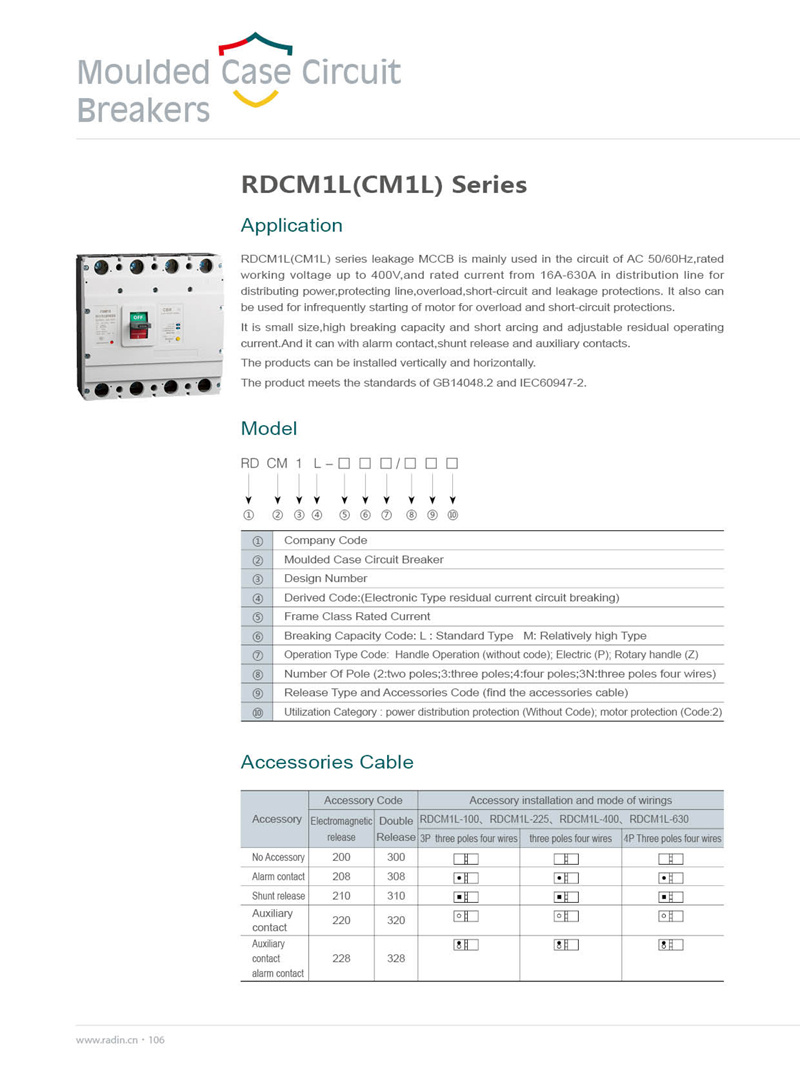

Application
RDCM1L(CM1L) series leakage MCCB is mainly used in the circuit of AC 50/60Hz,rated working voltage up to 400V,and rated current from 16A-630A in distribution line for distributing power,protecting line,overload,short-circuit and leakage protections. It also can be used for infrequently starting of motor for overload and short-circuit protections.
It is small size,high breaking capacity and short arcing and adjustable residual operating current.And it can with alarm contact,shunt release and auxiliary contacts.
The products can be installed vertically and horizontally.
The product meets the standards of GB14048.2 and IEC60947-2.

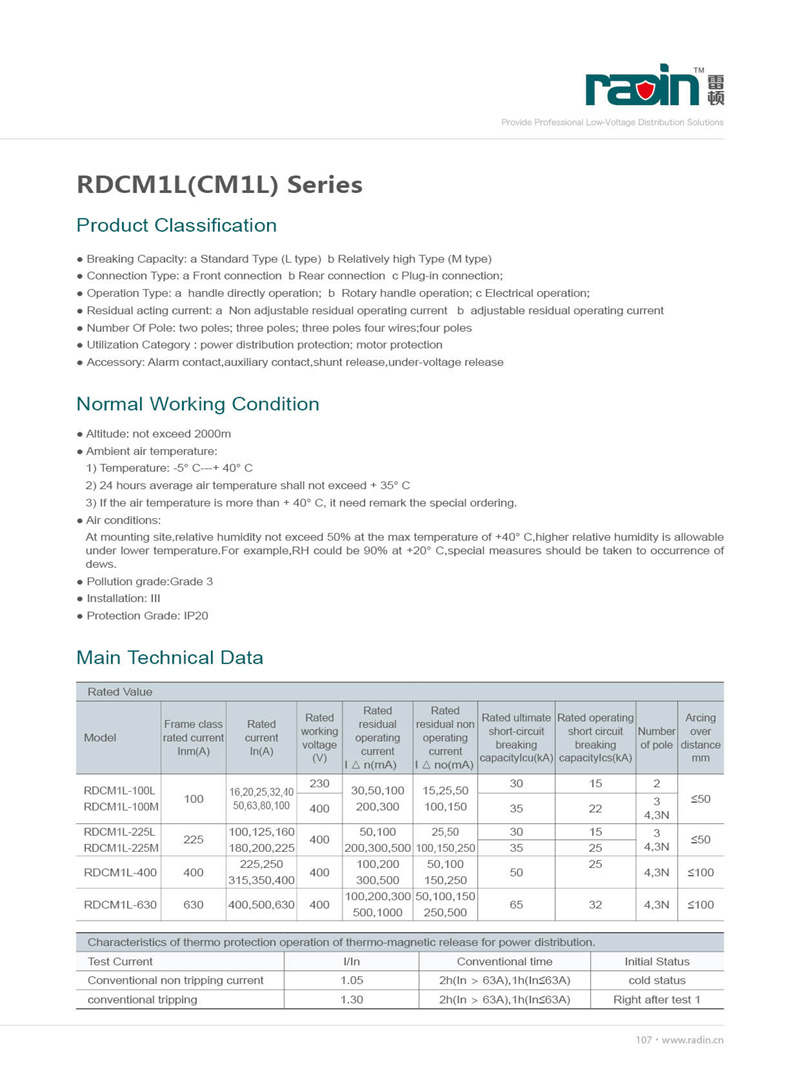

Normal Working Condition
Altitude: not exceed 2000m
Ambient air temperature:
1) Temperature: -5° C---+ 40° C
2) 24 hours average air temperature shall not exceed + 35° C
3) If the air temperature is more than + 40° C, it need remark the special ordering.
Air conditions:
At mounting site,relative humidity not exceed 50% at the max temperature of +40° C,higher relative humidity is allowable under lower temperature.For example,RH could be 90% at +20° C,special measures should be taken to occurrence of dews.
Pollution grade:Grade 3
Protection Grade: IP20
