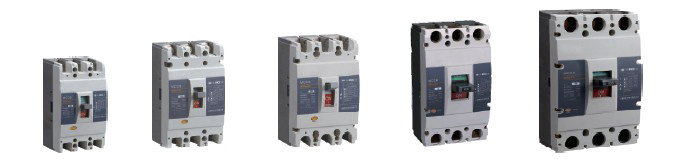

MCCB Moulded Case Circuit Breaker Wina Series

Name: MCCB Moulded Case Circuit Breaker Wina Series
Brand: all-electronics-online.com
SKU: 800001865
Availability: InStock
Rating: 5 (124 reviews)

Price:	US $ 30/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WINa Series
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

1. Application
Molded Case Circuit Breakers WINa series (hereinafter called as WINa MCCB) is a new designed MCCB, developed and manufactured adopting international advanced technology. WINa MCCB rated insulating voltage AC 800V is suitable for using in the circuit of AC 50Hz /60Hz, rated voltage up to 690V (and below DC250V). Rated working current 10A-1600A, It can be used for infrequently switch and starting of motor , protect the line and the equipment from being damaged due to overload, short current and under-voltage
Internal accessory:shunt release, under voltage release, auxiliary contact, alarm contacts and open-phase protection release
Eternal accessory:power-driven operation mechanism, turning handle operation mechanismThe wiring Method has four ways: wiring in front of the board, wiringon back of the board, insertion type in front of the board and insertion type on back of the board.
Installation method:vertically installed and horizontal installed
Breaking capacity:Basic type( C ) , standard type (L), middle type (M) , high type(H)
Arc distance:short arc , long arc
Outside:small volume, white and black outside, pleasing shape
Poles:2, 3, 4
Frame current:63,100,225,400,630,800,1250,1600
Products current:6,10,16,20,25,32,40,50,63,80,100,125,140,160,180,200,225,250,315,400,500,630,700,800, 1000,1250,1400,1600A
Standard:ICE60947-2 GB14048.2
2. Main Technical Performance Index

Yueqing Geshiman Electric, which specializes in manufacturing series of circuit breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, Mould case circuit breakers Push botton switches, isolator etc...Our products apply into high end of market in the world. The qualification of products reaches a MID and high level in China markets, and the quality is accepted by high end of market.

Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

We have more than 500 workers for production 8 engineers for quality control and technics. All of our product line are according the CE certficates and test reports.

For Business. We have experience to serve the famous brand in OEM. Our company is not very big but with the quality goods forever. We only make the quality parts. Welcome all of our customers or new friends feel free to visit our company.
