| Prod Model: |
QW360-020-L |
| Input Voltage: |
AC100-240V 50/60Hz |
| Use For Battery Type: |
Li-ion Battery |
| Voltage: |
42V |
| Desktop Type: |
Yes |
| Delivery Date: |
15days |
| Warranty: |
One Year |
| Type: |
Lithium Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
42V |
| Socket Type: |
Can Be Customized |
Product Description

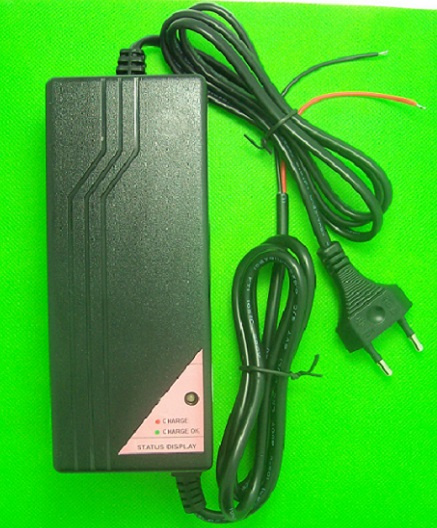

MCU Control 36V 42V 2A Li-Ion Battery Charger
Technical data:Max. Output power: 90W
Input voltage: 100-240V AC
Norminal output voltage: 36V
Max. output voltage: 42V
Max. output current: 2A
Line frequency: 50-60Hz
Efficiency(at 100% load): >=80%
Ripple: <=1%*Vo
Temperature range: <65%
Protection:Short circuit protection
Over voltage protection
Over current protection
Reverse polarity connect protection
General specification:3-step charging control (pre-charge-CC-CV)
Option: a) NTC inside
b) 100% cut off when battery fully charged
Dual color LED indicator:(Charging:Red; Fully charged or no load:Green)
Light weight and compact
High efficiency and low power consumption
Environmental specification:Operating temperature:0C ~ 45C
Storage temperature:-20C ~ 70C
Humidity < 65%
Recommended Charging Rates for Electric Scooter Battery PacK:12 Volt
5-8 Ah
Pack | 12 Volt
9-12 Ah Pack | 12 Volt
17-20 AhPack | 24 Volt
5-8 AhPack | 24 Volt
9-12 AhPack | 24 Volt
17-20 AhPack |
slow rate:
12V 1A
quick rate:
12V 2A | slow rate:
12V 1.5A
quick rate:
12V 3A | slow rate:
12V 3A
quick rate:
12V 6A | slow rate:
24V 1A
quick rate:
24V 2A | slow rate:
24V 1.5A
quick rate:
24V 3A | slow rate:
24V 3A
quick rate:
24V 6A |
36 Volt
5-8 Ah Pack | 36 Volt
9-12 AhPack | 36 Volt
17-20 AhPack | 48 Volt
5-8 AhPack | 48 Volt
9-12 AhPack | 48 Volt
17-20 AhPack |
slow rate:
36V 1A
quick rate:
36V 2A | slow rate:
36V 1.5A
quick rate:
36V 3A | slow rate:
36V 3A
quick rate:
36V 6A | slow rate:
48V 1A
quick rate:
48V 2A | slow rate:
48V 1.5A
quick rate:
48V 3A | slow rate:
48V 3A
quick rate:
48V 6A |
