Product Description

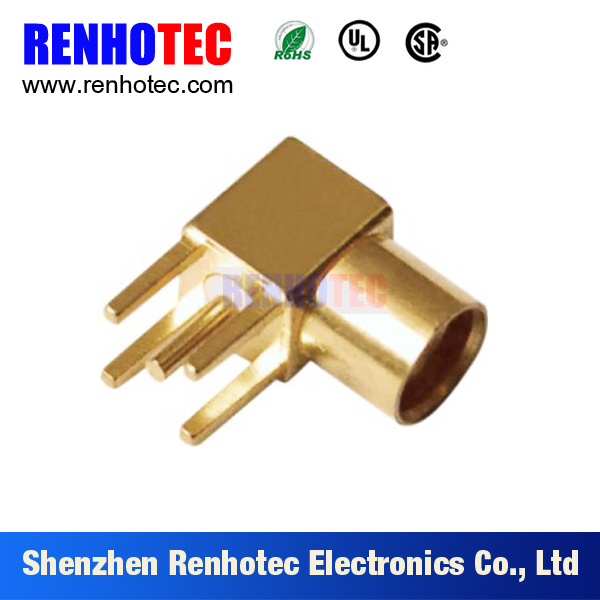

MCX connector RF Connector for PCB, 90/180degree
1. MCX Connector
2. High quality, RoHS
3. Widely used in many fied
4. Various types for choice
1. Features & Benefits
1)Broadband performance with low reflection DC to 6 GHz. Low cost combined with high quality.
2)Quick connect/disconnect snap-on mating reduces installation time.
3)Accommodates a wide range of miniature RG flexible coaxial cables, including semi-rigid cable. This provides customer flexibility in their design and manufacturing.
2. Electrical
1)Impedance: 50 ohms
2)Frequency Range: DC - 6 GHz
3)VSWR: 1.06 max. @ DC - 2.5 GHz (straight)
1.1 max. @ DC - 2.5 GHz (right angle)
4)RF-Leakage: 60 dB minimum @ 1 GHz (flexible cable) (CECC 22000-4.4.8)
70 dB minimum @ 1 GHz (semi-rigid cable)
5)Voltage Rating (at sea level): ≥ 335 Vrms (depending on cable)
6)Contact Resistance: Center Contact: ≤ 5 mohms (CECC 22000-4.4.2)
Outer Contact: ≤ 2.5 mohms (CECC 22000-4.4.3)
7)Insulation Resistance: 10, 000 Mohms minimum (CECC 22000-4.4.4)
8)Insertion Loss Maximum: 0.10 dB @ 1 GHz
9)Dielectric Withstanding Voltage: 1, 000 Vrms (at sea level) (CECC 22000-4.4.5)
3. Applications:
Automotive, Base, Station, Components
GPS, Head End EquipmentIn, strumentation
PC/LAN, Radios, Telecom
WLAN, Wireless/Networks Antenna
4: Shipping ways:
1. EMS, DHL, UPS, FedEx by air, for big orders we Suggest shipment by sea.
2. Delivery time: Sample order within 3 days; Bulk order within 7 days after receipt of the payment.
3. Evaluate the customs-clearance risk and choose safest shipping company during different period.
5: After-sale service:
1: One year warranty policy after the shipment.
2: We will replace the defective parts with new parts in the next order.
3: Choose the cheapest and safest shipping company.
4: Track the order until you get the goods.
5. Certificates available: CE, RoHS, FCC
