MCX Male Connector

Name: MCX Male Connector
Brand: all-electronics-online.com
SKU: 666082255
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	US $ 0.1-0.5/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Computer
Environmental Protection:	General
Connection Mode:	Card Lock Connection
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Antenk

Product Description

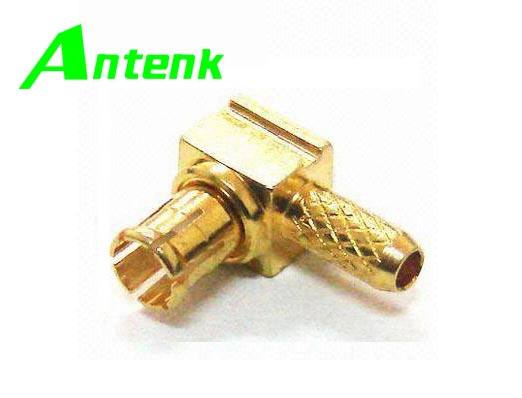

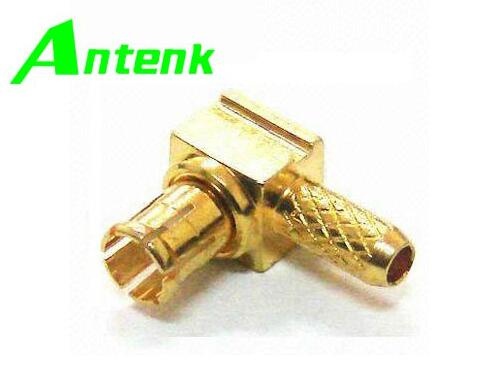

MCX Male R/A with RG 179 Cable and 500V Voltage Rating
Key Specifications/Special Features:

With RG 179 cable
Temperature range: -65 - +165c
Characteristic impedance: 50 ohms/75 ohms
Frequency range:
0 - 6GHz (50 ohms)
0 - 1.5GHz (75 ohms)
Contact resistance:
Center conductor: ≤ 5m ohms
Outer conductor: ≤ 2.5m ohms
Voltage rating: 500V (RMS)
VSWR:
≤ 1.20 (50 ohms)
≤ 1.35 (75 ohms)
Insertion loss: 0.1dB at 1GHz
Voltage rating: 335V (RMS)
Dielectric withstanding voltage: 1, 500V (RMS)
Durability: 500 times

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
