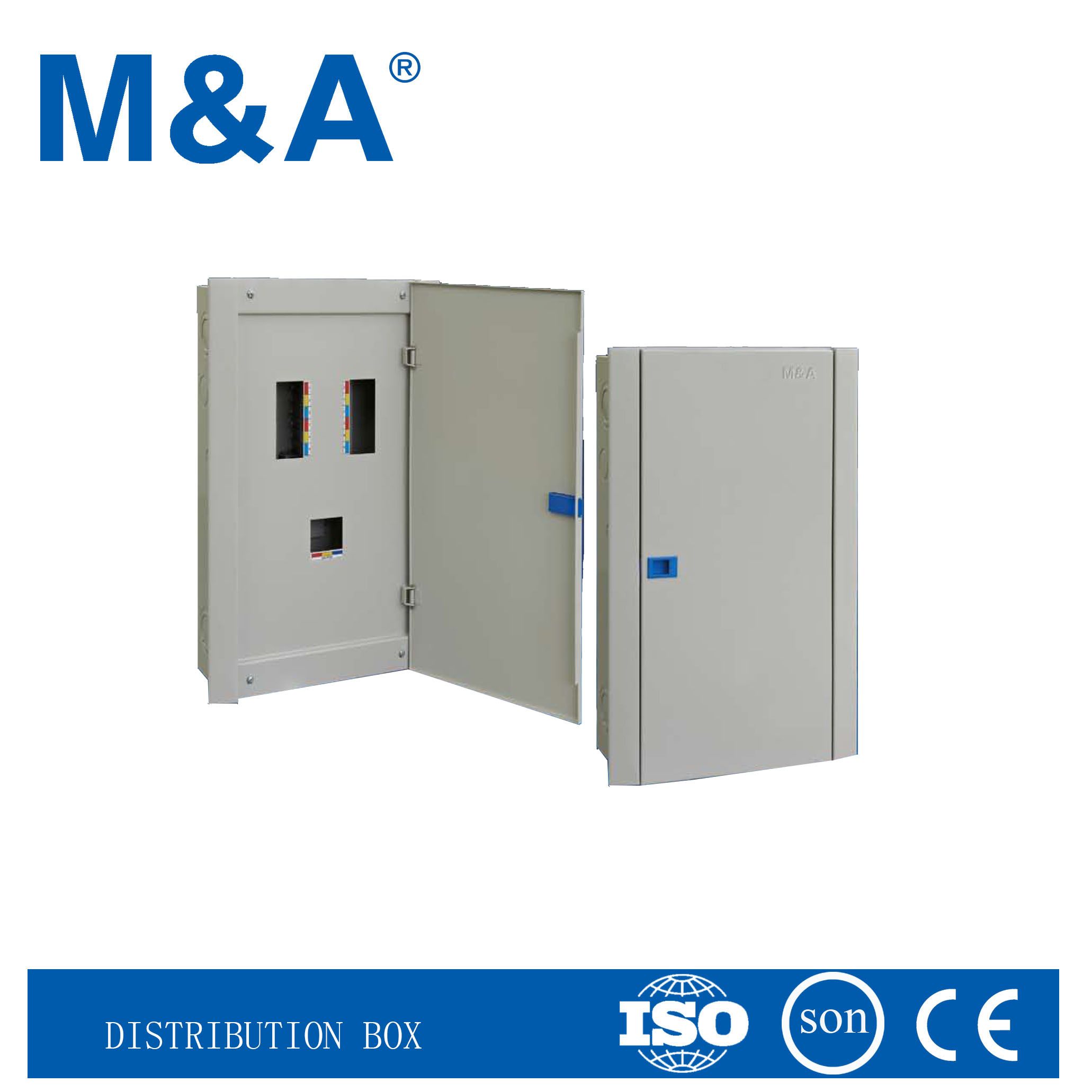

Mdb-E Series 3 Phase Metal Box for Circuit Breaker (DISTRIBUTION BOX)
Price: |
US $ 10-11/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Prod Model: |
MDB-E 4WAYS TPN |
Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
Material: |
High Quality Electro-Galvanized Steel Sheet |
Busbar: |
ETP Copper Busbar Tin Plated Without Any Joints |
Ample Netral Terminals: |
Copper |
Ample Earth Terminals: |
Copper |
Spray Paint: |
Coated in Ral-7035 Light Colour |
Packaging Details: |
Standard Export Carton or According |
Delivery Detail: |
Within 30days |
Type: |
Power |
Structure: |
Protection |
Certification: |
Ce Son |
Brand: |
M&a |
Product Description

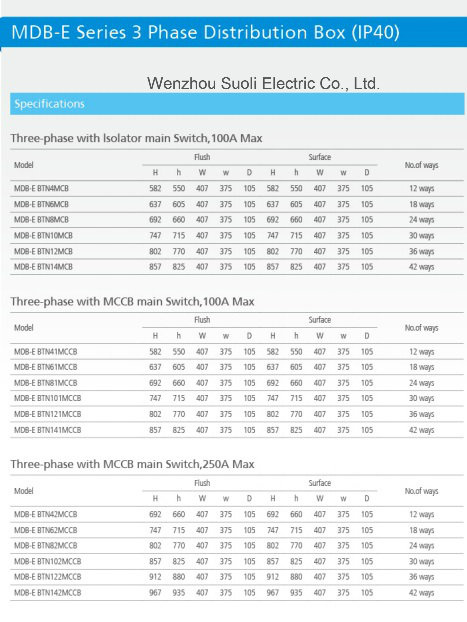

MDB-E Series 3 Phase Distribution Box(New type)MDB-E Series 3 Phase distribution box is designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial installations. They are available in plug in, din rail designs for indoor and outdoor applications and also available with main as MCB, isolator MCCB or MCB.Material:1.Steel sheet and copper fittings inside;2.Paint finish: both externally and internally;3.Protected with epoxy polyester coating;4.Textured finish RAL7032 or RAL7035.Lifetime:More than 20 years;Our products are accord with IEC60947-3 standard.MDB-E Series 3 Phase Distribution Box ( IP40)SpecificationsThree-phase with isolator main switch, 100A MaxModel | Flush | Surface | No.of ways |
H | h | W | w | D | H | h | W | w | D |
MDB-E BIT4MCB | 582 | 550 | 407 | 375 | 105 | 582 | 550 | 407 | 375 | 105 | 12 ways |
MDB-E BIT6MCB | 637 | 605 | 407 | 375 | 105 | 637 | 605 | 407 | 375 | 105 | 18 ways |
MDB-E BIT8MCB | 692 | 660 | 407 | 375 | 105 | 692 | 660 | 407 | 375 | 105 | 24 ways |
MDB-E BIT10MCB | 747 | 715 | 407 | 375 | 105 | 747 | 715 | 407 | 375 | 105 | 30 ways |
MDB-E BIT12MCB | 802 | 770 | 407 | 375 | 105 | 802 | 770 | 407 | 375 | 105 | 36 ways |
MDB-E BIT14MCB | 857 | 825 | 407 | 375 | 105 | 857 | 825 | 407 | 375 | 105 | 42 ways |
Three-phase with MCCB main switch, 100A MaxModel | Flush | Surface | No.of ways |
H | h | W | w | D | H | h | W | w | D |
MDB-E BIT41MCCB | 582 | 550 | 407 | 375 | 105 | 582 | 550 | 407 | 375 | 105 | 12 ways |
MDB-E BIT61MCCB | 637 | 605 | 407 | 375 | 105 | 637 | 605 | 407 | 375 | 105 | 18 ways |
MDB-E BIT81MCCB | 692 | 660 | 407 | 375 | 105 | 692 | 660 | 407 | 375 | 105 | 24 ways |
MDB-E BIT101MCCB | 747 | 715 | 407 | 375 | 105 | 747 | 715 | 407 | 375 | 105 | 30 ways |
MDB-E BIT121MCCB | 802 | 770 | 407 | 375 | 105 | 802 | 770 | 407 | 375 | 105 | 36 ways |
MDB-E BIT141MCCB | 857 | 825 | 407 | 375 | 105 | 857 | 825 | 407 | 375 | 105 | 42 ways |
Three-phase with MCCB main switch, 100A MaxModel | Flush | Surface | No.of ways |
H | h | W | w | D | H | h | W | w | D |
MDB-E BIT42MCCB | 692 | 660 | 407 | 375 | 105 | 692 | 660 | 407 | 375 | 105 | 12 ways |
MDB-E BIT62MCCB | 747 | 715 | 407 | 375 | 105 | 747 | 715 | 407 | 375 | 105 | 18 ways |
MDB-E BIT82MCCB | 802 | 770 | 407 | 375 | 105 | 802 | 770 | 407 | 375 | 105 | 24 ways |
MDB-E BIT102MCCB | 857 | 825 | 407 | 375 | 105 | 857 | 825 | 407 | 375 | 105 | 30 ways |
MDB-E BIT122MCCB | 912 | 880 | 407 | 375 | 105 | 912 | 880 | 407 | 375 | 105 | 36 ways |
MDB-E BIT142MCCB | 967 | 935 | 407 | 375 | 105 | 967 | 935 | 407 | 375 | 105 | 42 ways |

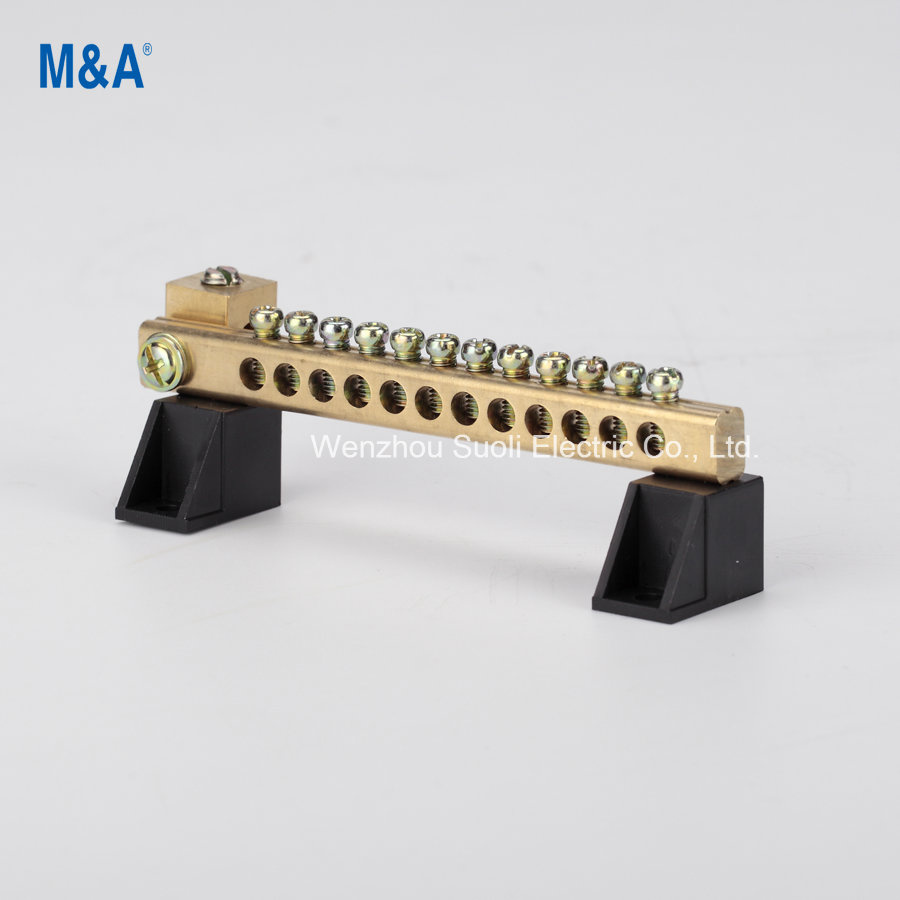

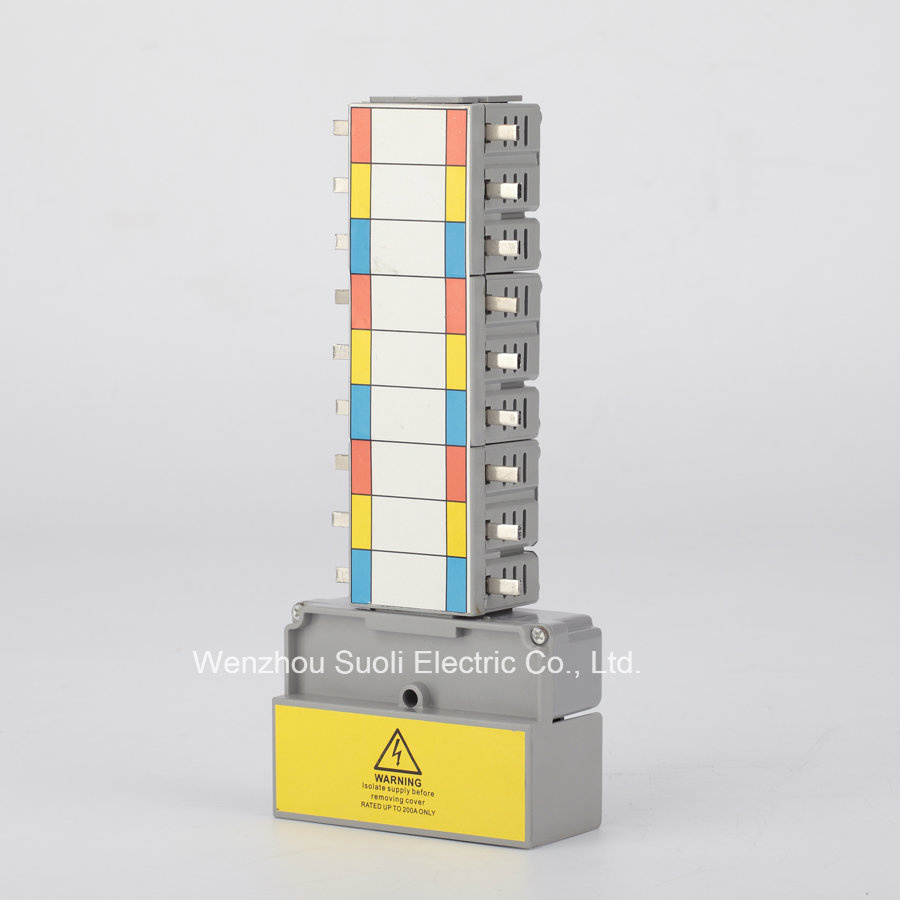

Parts Figure
