Mdx Series Miniature Limit Switch with Boasting Rigid Construction

Prod Model:	MDX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	5A
Pressing Type:	Push-Button
Protection:	Dust-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Application:	Industrial
Brand:	Mockwell

Product Description

Miniature Limit Switch Boasting Rigid Construction
The Head, Box, and Cover mate with ridged surfaces to maintain strength.
A unique Head structure provides a large OT for smooth operation.
Easy-to-wire conduit opening design.
Ideal for application in printing machines, forming machines, and light machines.

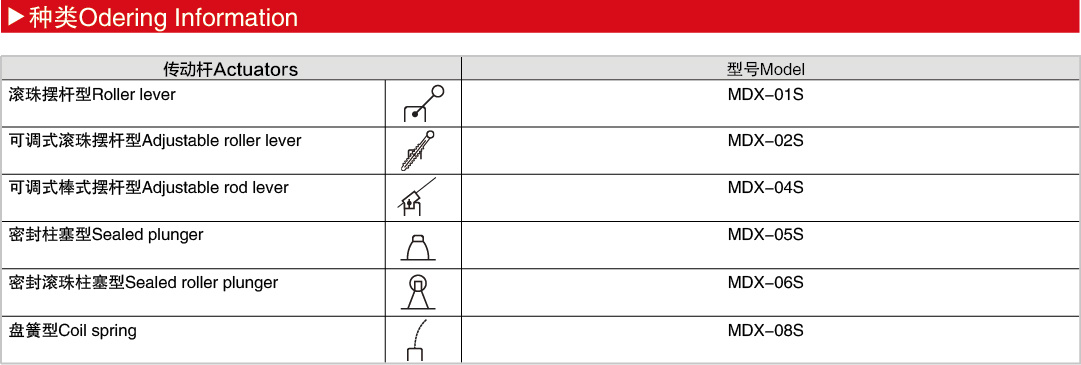

Ordering information:

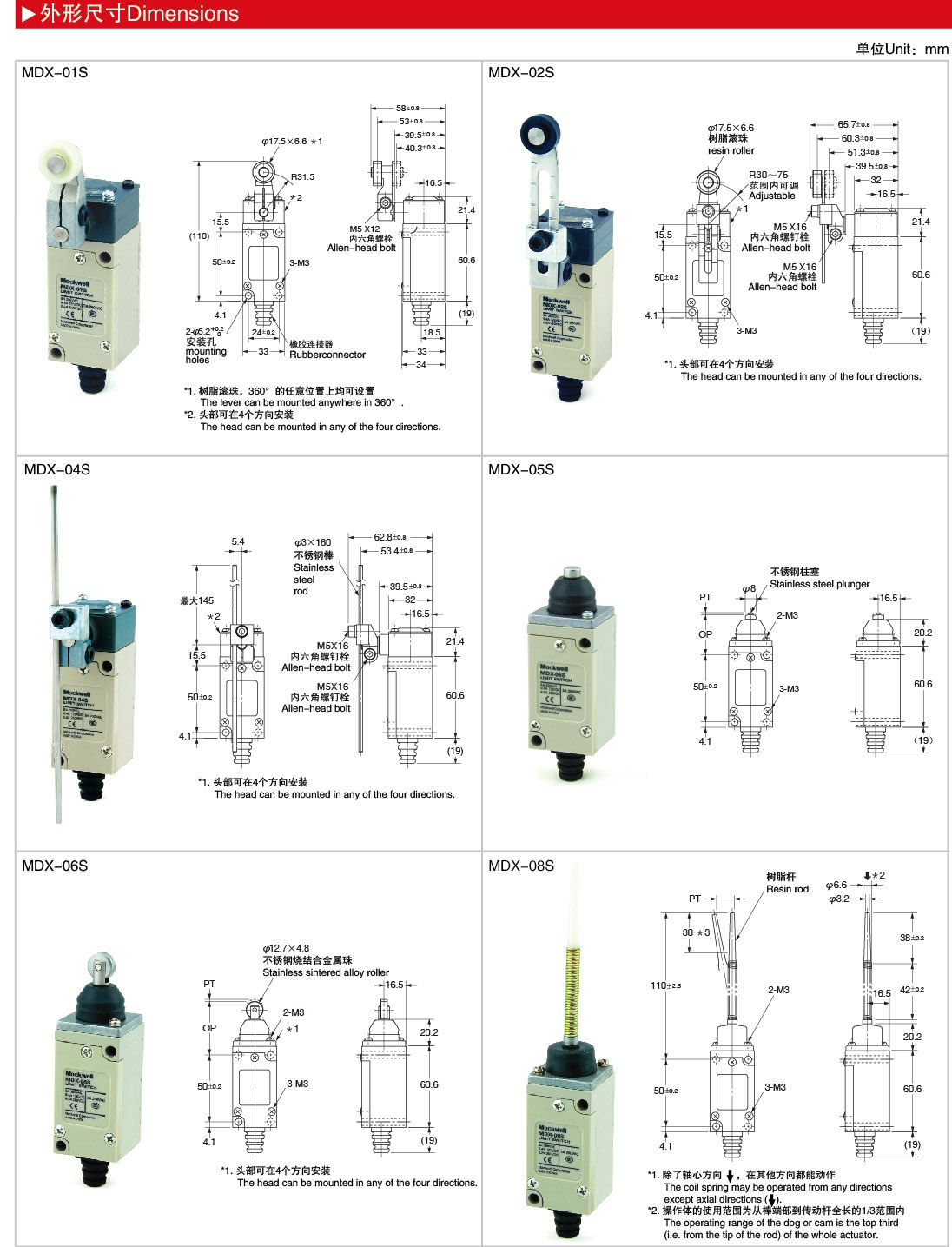

Model	Actuators	can be replacement of
MDX-01S	Roller lever	HL-5000
MDX-02S	Ajustable roller lever	HL-5030
MDX-04S	Ajustable rod lever	HL-5050
MDX-05S	Sealed plunger	HL-5100
MDX-06S	Sealed roller plunger	HL-5200
MDX-08S	Coil spring	HL-5300

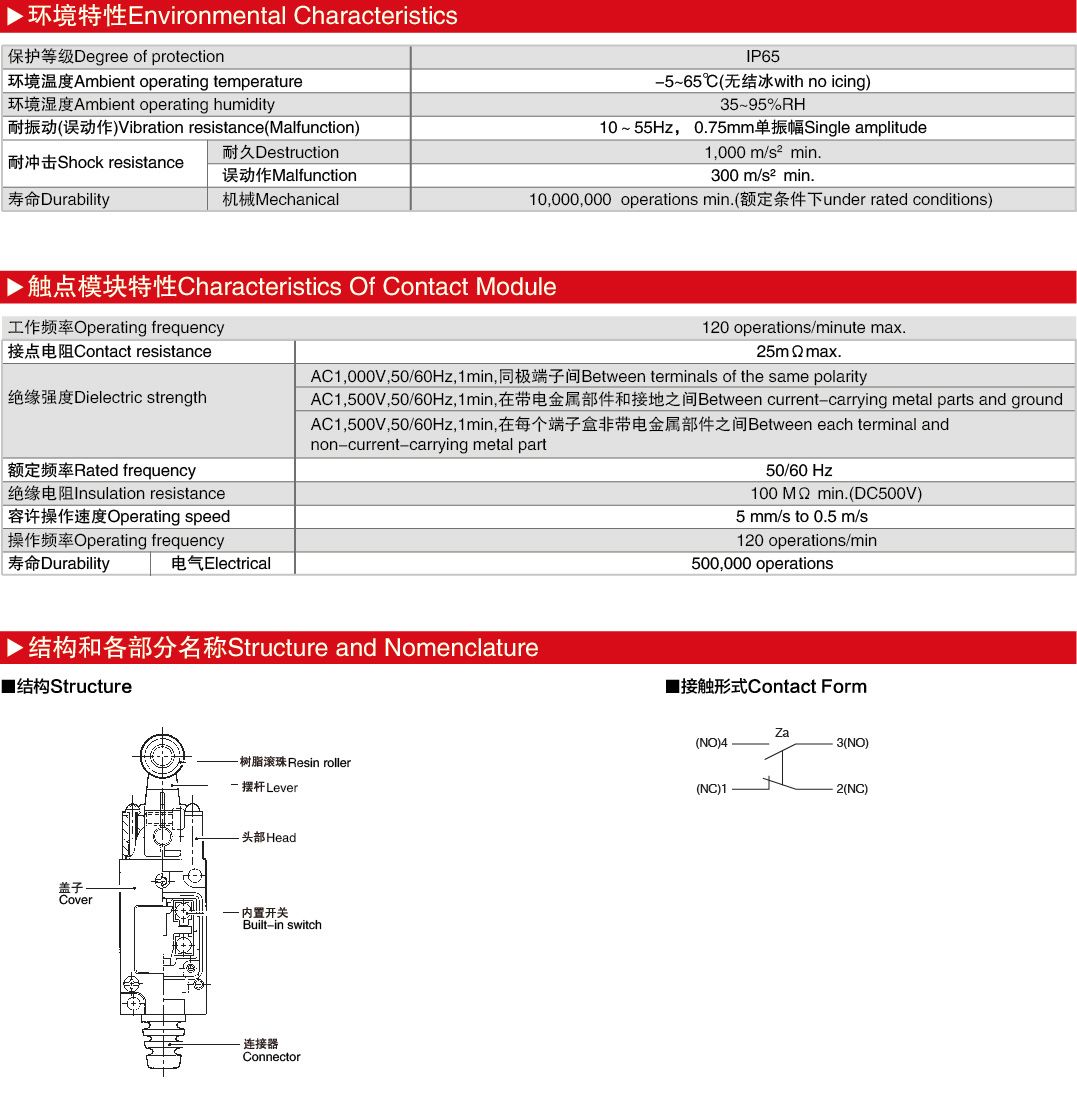

Technical parameter:

Ambient operating temperature	-5-65ºC
Ambient operating humidity	35-95%RH
Virbration resistance	10-55Hz,
Operating frequency	120times/minute max
Rated voltage	250V
Mechanical life	10,000,000times
Electrical Life	500,000times

Dongguan Mockwell industrial control Co., Ltd specialized in the research and develop, manufacturing of Proximity sensor, Photo sensor, Micro switch, Limit switch, Pushbutton switch, indicator, optical fiber, relays and counter, etc-Mockwell is one of the largest industrial control products with the most complete products ranges in China. Our products have found domestic market and oversea marke, including Europe, Asia, Middle East, Africa, Central and South America of more than 30 countries and regions.

Mockwell passed the ISO9001 Quality System Certification, and our products with China Compulsory Certification(CCC), and Europe CE Safety Certification approval. With more than ten years of development, we always supply the best quality products which our clients satisfy with.

Abiding to "Innovation, Professionalism, Internationzation", we provide the best products and service for our clients with strongest management group, strict production system, most united staff team, and a good after sale service.
