Meanwell EPS-15-36 36V 15W Open Frame Mean Well Power Supply

Meanwell EPS-15-36 36V 15W Open Frame Mean Well Power Supply
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: EPS-15-36
Output Voltage: 36V
Output Current: 0.42A
Output Power1: 15W
Output Type: Single
Warranty: 1 Year
Output Power: 1 - 50W
Input Voltage: 220V
Starting Mode: Separate-excited Switching Power Supply
Power Supplying System: Level 1 Power Distribution Equipment
Certification: FCC
Connection Mode: Switching Power Supply
Voltage Regulating Mode: Switch Power Supply
Brand: Meanwell

Product Description

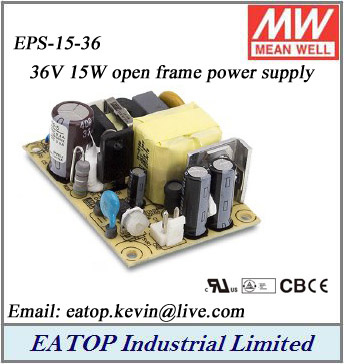

Meanwell EPS-15-36 36V 15W open frame Mean well power supply

EPS-15-36 Short Brief:

Meanwell EPS-15-36 is a 36V 15W ac dc power supply

Mean well EPS-15-36 Features:

  • Meanwell PCB Power Supply
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 1.8" ×2.5" compact size
  • No load power consumption<0.3W
  • 3 years warranty





Meanwell EPS-15-36 Specification:

MODELEPS-15-24EPS-15-27EPS-15-36EPS-15-48
OUTPUTDC VOLTAGE24V27V36V48V
RATED CURRENT0.625A0.56A0.42A0.313A
CURRENT RANGE0 ~ 0.69A0 ~ 615A0 ~ 0.46A0 ~ 0.344A
RATED POWER15W15.12W15.12W15.02W
PEAK LOAD (10sec.)          16.56W16.6W16.56W16.56W
RIPPLE & NOISE (max.)     150mVp-p180mVp-p200mVp-p200mVp-p
VOLTAGE ADJ. RANGE21.6 ~ 27V24.3 ~ 29.7V32.4 ~ 39.6V43.2 ~ 52.8V
VOLTAGE TOLERANCE   ±1.0%±1.0%±1.0%±1.0%
LINE REGULATION    ±0.5%±0.5%±0.5%±0.5%
LOAD REGULATION    ±0.5%±0.5%±0.5%±0.5%
SETUP, RISE TIME1000ms, 30ms/230VAC   2000ms, 30ms/115VAC at full load
HOLD UP TIME50ms/230VAC  16ms/115VAC at full load
INPUTVOLTAGE RANGE                85 ~ 264VAC         120 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY83%84%84%85%
AC CURRENT0.4A/115VAC         0.2A/230VAC
INRUSH CURRENTCOLD START 45A/230VAC
LEAKAGE CURRENT<1mA / 240VAC
PROTECTIONOVER LOAD115 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE27.6 ~ 33V31.05 ~ 36.45V39.7 ~ 46.8V55.2 ~ 65.8V
Protection type : Shut down o/p voltage, clamping by zener diode
ENVIRONMENTWORKING TEMP.-30~+70°C (Refer to derating curve)
WORKING HUMIDITY20~90% RH non-condensing
STORAGE TEMP., HUMIDITY-40~+85°C, 10~95%RH
TEMP. COEFFICIENT±0.03%/°C(0~50°C)
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes
SAFETY&EMCSAFETY STANDARDSU60950-1, TUV EN60950-1 Approved
WITHSTAND VOLTAGEI/P-O/P:3KVAC   I/P-FG:2KVAC    O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70%
EMCEMISSIONCompliance to EN55022 (CISPR22) Class B, EN61000-3-2, -3
EMC IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
OTHERSMTBF824.6Khrs min.    MIL-HDBK-217F (25°C)
DIMENSION63.5*45.7*24mm (L*W*H)
PACKING0.057Kg; 120pcs/7.84Kg/0.97CUFT



Mechanical Specification:

EPS-15-36 Weight: 0.057kg
Dimensions: 63.5 x 45.7 x 24 mm

EPS-15-36
Meanwell EPS-15-36 36V 15W open frame Mean well power supply



Notes:
1. We will ship the item in 3-5 work days after the payment arrive.
2. We will usually ship the item to Worldwide by FedEx/ UPS/DHL.
3. Buyer's responsibility to pay customs fees, duties, import taxes, shipping charge
And related charges.
4. We accept the payment through T/T, Paypal, and Western Union.
5. The pictures show you one of the items in stock. But the exact one may be sold before your bidding. So it may not the exact one which you will recieve.
EATOP Industrial Limited offers a high quality and high reliability AC/DC and DC/DC power supplies. We specialize in low to MID-range power (1 - 600 watts), also Industrial, Telecom, Rectifier Module and Healthcare Power Supplies from 1W-4000 Watts.

Our Switch Mode AC/DC line consists of Desktop and Wall mount adaptors, as well as Metal Enclosed and Open Frame type power supplies with wide range Universal inputs of 85VAC to 264VAC.

Our DC/DC line consists of Output Power Range of 5 watts to 600 watts with input ranges of wide Range input (2: 1) as well as Ultra Wide Range Input (4: 1)

If you have any projects that are in need for AC/DC switching power supplies and/or DC/DC converters, we would be happy to supply you with a quote.
