| Prod Model: |
EPS-35-12 |
| Output Voltage: |
12V |
| Output Current: |
3A |
| Output Power1: |
36W |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
220V |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
FCC |
| Connection Mode: |
Switching Power Supply |
| Voltage Regulating Mode: |
Switch Power Supply |
| Brand: |
Meanwell |
Product Description

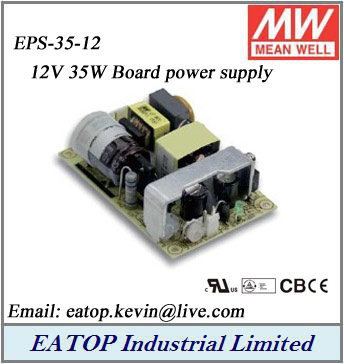

Meanwell Mean well EPS-35-12 12V 35W open frame power supply
EPS-35-12 Short Brief:
Meanwell EPS-35-12 is a 12V 35W ac dc power supply
Mean well EPS-35-12 Features:
- Meanwell PCB Power Supply
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 1.8" ×2.5" compact size
- No load power consumption<0.3W
- 3 years warranty
Meanwell EPS-35-12 Specification:
| MODEL | EPS-15-3.3 | EPS-15-5 | EPS-15-7.5 | EPS-15-12 | EPS-15-15 |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V |
| RATED CURRENT | 6A | 6A | 4.7A | 3A | 2.4A |
| CURRENT RANGE | 0 ~ 6.6A | 0 ~ 6.6A | 0 ~ 4.7A | 0 ~ 3A | 0 ~ 2.4A |
| RATED POWER | 19.8W | 30W | 35.25W | 36W | 36W |
| PEAK LOAD (10sec.) | 21.78W | 33W | 39W | 39.6W | 39.75W |
| RIPPLE & NOISE (max.) | 60mVp-p | 70mVp-p | 80mVp-p | 100mVp-p | 100mVp-p |
| VOLTAGE ADJ. RANGE | 3.1 ~ 3.6V | 4.75 ~ 5.5V | 7.13 ~ 8.25V | 10.8 ~ 13.5V | 13.5 ~ 16.5V |
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load |
| HOLD UP TIME | 50ms/230VAC 16ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY | 80% | 82% | 84% | 87% | 88% |
| AC CURRENT | 0.75A/115VAC 0.5A/230VAC |
| INRUSH CURRENT | COLD START 45A/230VAC |
| LEAKAGE CURRENT | <1mA / 240VAC |
| PROTECTION | OVER LOAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 3.8 ~ 4.6V | 5.6 ~ 6.75V | 8.63 ~ 10.5V | 14 ~ 17V | 17.25 ~ 20.25V |
| Protection type : Shut down o/p voltage, clamping by zener diode |
| ENVIRONMENT | WORKING TEMP. | -30~+70°C (Refer to derating curve) |
| WORKING HUMIDITY | 20~90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40~+85°C, 10~95%RH |
| TEMP. COEFFICIENT | ±0.03%/°C(0~50°C) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes |
| SAFETY&EMC | SAFETY STANDARDS | U60950-1, TUV EN60950-1 Approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70% |
| EMCEMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2, -3 |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A |
| OTHERS | MTBF | 649.1Khrs min. MIL-HDBK-217F (25°C) |
| DIMENSION | 76.2*50.8*24mm (L*W*H) |
| PACKING | 0.085Kg; 120pcs/11.20Kg/0.97CUFT |
Mechanical Specification:
EPS-35-12 Weight: 0.085kg
Dimensions: 76.2 x 50.8 x 24 mmEPS-35-12Meanwell Mean well EPS-35-12 12V 35W open frame power supply
