Product Description

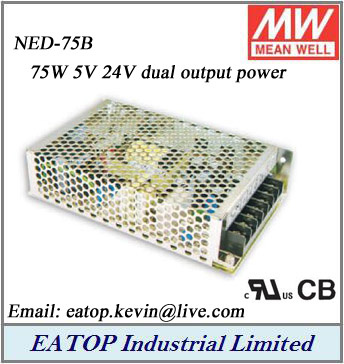

Meanwell Mean well NED-75B 75W 5V 24V dual output power supply
NED-75B Short Brief:
Meanwell NED-75B is a 24V 5V 75W dual output power supply
Mean well NED-75B Features:
- Meanwell NED-75A
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- 2 years warranty
Meanwell NED-75B Specification:
| MODEL | NED-75B |
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 5V | 24V |
| RATED CURRENT | 5A | 2A |
| CURRENT RANGE Note.6 | 1 ~ 6A | 0.2 - 3A |
| RATED POWER | 73W |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 200mVp-p |
| VOLTAGE ADJ. RANGE | CH1:4.75-5.5V |
| VOLTAGE TOLERANCE Note.3 | ±2,0% | ±6.0% |
| LINE REGULATION NotM | ±0.5% | ±1.0% |
| LOAD REGULATION Nota.5 | ±1.5% | ±3.0% |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load |
| HOLD UP TIME (typ.) | 50ms/230VAC 10ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120-370VDC |
| FREQUENCY RANGE | 47 - 63Hz |
| EFFICIENCY (Typ.) | 81% |
| AC CURRENT (Typ.) | 0.75A/115VAC Q.5A/230VAC |
| INRUSH CURRENT (Typ.) | COLD START 45A |
| LEAKAGE CURRENT | <2mA/240VAC |
| PROTECTION | OVERLOAD | 110 - 150% rated output power |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| OVERVOLTAGE | CH1:575 - 6.75V |
| Protection type: Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT | WORKING TEMP. | -20 - +60ºC (Refer to 'Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.03%/"C (0 - 45°C) |
| VIBRATION | 10-500Hz, 2G10min./1 cycle, period for 60m in. each along X, Y, Z axes |
| SAFETY &EMC NOTE.7 | SAFETY STANDARDS | U60950-1, CB(IEC60950-1) approved |
| WITHSTAND VOLTAGE | l/P-0/P:3KVAC l/P-FG:2KVAC 0/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms/ 500VDC125°C/70% RH |
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN81000-3-2,-3 |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A |
| OTHERS | MTBF | 381.3Khrs min. MIL-HDBK-217F (25°C) |
| DIMENSION | 159*97*38mm (L*W*H) |
| PACKING | 0.52Kg; 30pcs/16.6Kg/0.97CUFT |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input; rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured tram 20% to 100% rated load, and other output at 60% rated load. 6. Each output can work wtthln current range. But total output power canl exceed rated output power. 7. The power supply is considered a component which will be installed into a final equipment The final equipment must be re-confirmed that it still meets EMC drectives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies. |
Mechanical Specification:
NED-75B Weight: 0.52kg
Dimensions: 159 x 97 x 38 mmNED-75BMeanwell Mean well NED-75B 75W 5V 24V dual output power supply
Notes:
1. We will ship the item in 3-5 work days after the payment arrive.
2. We will usually ship the item to Worldwide by FedEx/ UPS/DHL.
3. Buyer's responsibility to pay customs fees, duties, import taxes, shipping charge
And related charges.
4. We accept the payment through T/T, Paypal, and Western Union.
5. The pictures show you one of the items in stock. But the exact one may be sold before your bidding. So it may not the exact one which you will recieve.
EATOP Industrial Limited offers a high quality and high reliability AC/DC and DC/DC power supplies. We specialize in low to MID-range power (1 - 600 watts), also Industrial, Telecom, Rectifier Module and Healthcare Power Supplies from 1W-4000 Watts.
Our Switch Mode AC/DC line consists of Desktop and Wall mount adaptors, as well as Metal Enclosed and Open Frame type power supplies with wide range Universal inputs of 85VAC to 264VAC.
Our DC/DC line consists of Output Power Range of 5 watts to 600 watts with input ranges of wide Range input (2: 1) as well as Ultra Wide Range Input (4: 1)
If you have any projects that are in need for AC/DC switching power supplies and/or DC/DC converters, we would be happy to supply you with a quote.
