| Prod Model: |
NES-15-15 |
| Output Voltage: |
15V |
| Output Current: |
1A |
| Output Power1: |
15W |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
51 - 100W |
| Input Voltage: |
220V |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
FCC |
| Connection Mode: |
Switching Power Supply |
| Voltage Regulating Mode: |
Switch Power Supply |
| Brand: |
Meanwell |
Product Description

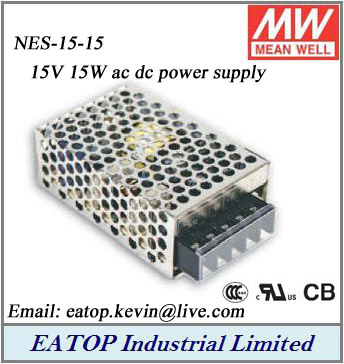

Meanwell Mean well NES-15-15 15V 1A 15W switching power supply
NES-15-15 Short Brief:
Meanwell NES-15-15 is a 15V 15W din rail power supply
Meanwell NES-15-48 Specification:
- Mean Well ac dc power supply 15W
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage / Over Temperature
- Cooling by free air convection
- 100% full load burn-in test
- 3 years warranty
NES-15-15 Mechanical Specification:
| MODEL | NES-15-15 | NES-15-12 | NES-15-24 | NES-15-48 |
| OUTPUT | DC VOLTAGE | 15V | 12V | 24V | 48V |
| RATED CURRENT | 1A | 1.3A | 0.7A | 0.35A |
| CURRENT RANGE | 0 ~ 1A | 0 ~ 1.3A | 0 ~ 0.7A | 0 ~ 1.35A |
| RATEDPOWER | 15W | 15.6W | 16.8W | 16.8W |
| RIPPLE & NOISE | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
| LINEREGULATION | ±1.5% | ±0.5% | ±0.5% | ±0.5% |
| LOADREGULATION | ±1.5% | ±0.5% | ±0.5% | ±0.5% |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load |
| HOLD UP TIME | 100ms/230VAC 20ms/115VAC at full load |
| INPUT | VOLTAGERANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCYRANGE | 47 ~ 63HZ |
| EFFICIENCY | 79% | 81% | 85% | 82% |
| AC CURRENT | 1.8A/115VAC 1A/230VAC |
| INRUSH CURRENT | COLD START 30A/115VAC 60A/230VAC |
| LEAKAGE CURRENT | <2mA / 240VAC |
| PROTECTION | OVERLOAD | Above 105% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 17.25~ 20.25V | 13.8 ~ 16/2V | 27.4 ~ 32.4V | 55.2 ~ 64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| FUNCTION | DC OK SIGNAL | Relay contact rating(max.): 30V/1A resistive |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70°C (Refer to "Derating Curve") |
| WORKINGHUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP HUMIDITY | -40 ~+85°C 10~95% RH |
| TEMPCOEFFICIENT | ±0.03%/°C (0~50°C) |
| VIBRATION | Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6 |
| SAFETY & EMC | SAFETY STANDARDS | U508, U60950-1, TUV EN60950-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| ISOLATIONRESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 |
| EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A |
| QTHERS | MTBF | 299.2K hrs min. MIL-HDBK-217F(25°C) |
| DIMENSION | 78*51*28mm (W*H*D) |
| PACKING | 0.18Kg; 60pcs/14.8Kg/0.82CUFT |
NES-15-15 Weight: 0.18kg
Dimensions: 78 x 51 x 28 mmNES-15-15
Meanwell Mean well NES-15-15 15V 1A 15W switching power supply
