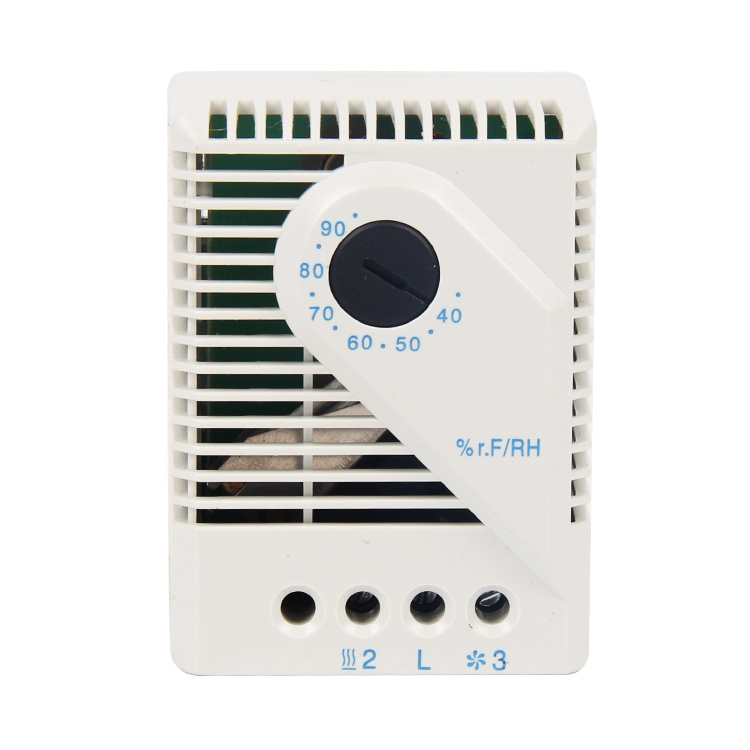

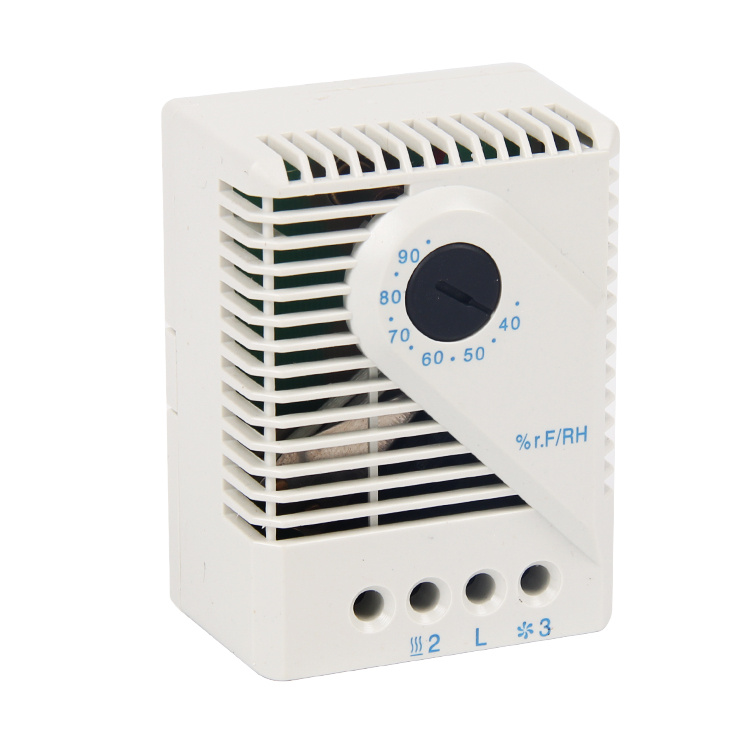

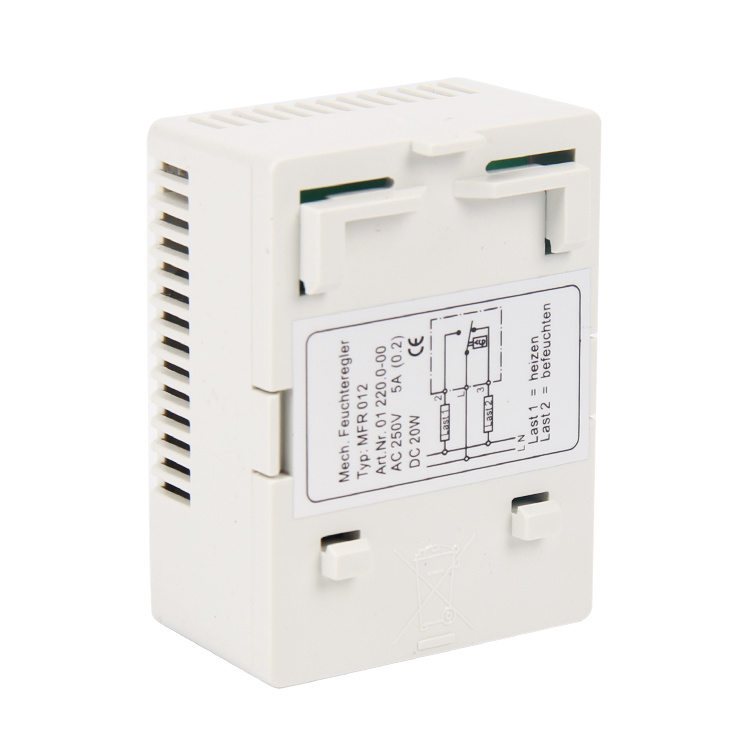

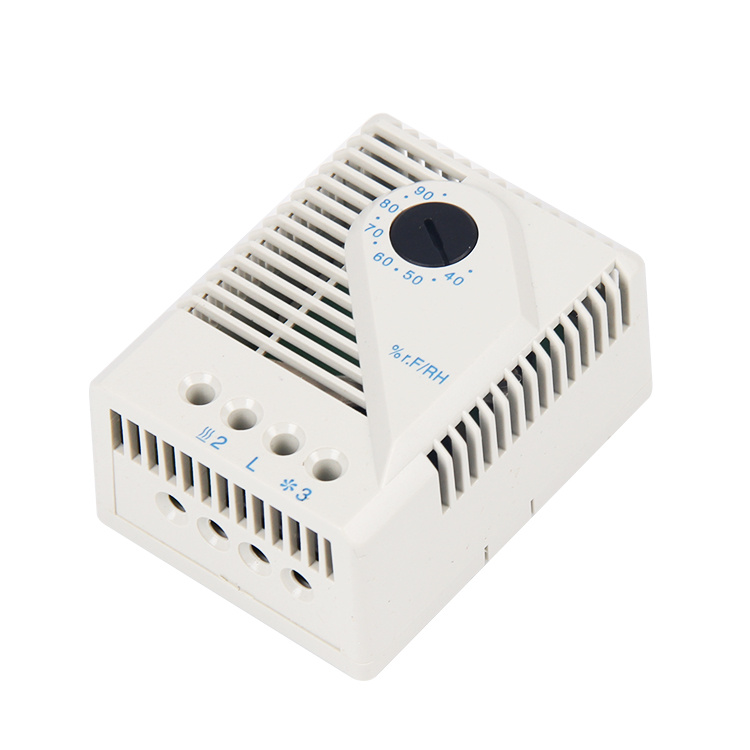

Mechanical Cabinet Hygrostat Humidity Controller Mfr 012

Mechanical Cabinet Hygrostat Humidity Controller Mfr 012
Price: US $ 10-12/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: MFR 012
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensor Element: Thermostatic Bimetal
Contactor: Normally Open Closed
Range: 35%-95%Rh
Mounting: 35mm DIN Rail
Size: 67X50X38mm
Weight: 60g

Product Description

Mechanical Cabinet Hygrostat Humidity Controller MFR 012

Industrial Hygrostat Humidity Controller

1.Adjustable relative humidity
2.Change-Over contact
3.High Switching Capacity
4.Terminals easy accessible
5.CE , LVD approved
6.2 years warranty


Switch difference4%RH (± 3% tolerance)

Permissible air velocity

15ms/sec

Contact Type

Change over contact

Max. Switching capacity

250VAC, 5 (1) A

DC 20W

Connection

3-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire  (with wire end ferrule) 1.5mm²

Mounting

clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)

Casing

plastic according to UL94 V-0, light grey

Dimensions

Weight

Protection type

67 x 50 x 38mm

approx. 60g

IP20

Operating / Storage

-45 to +80°C (-49 to +176°F)

max. 90 % RH (non-condensing)

Fitting position





variable


Details Show








Releated Products

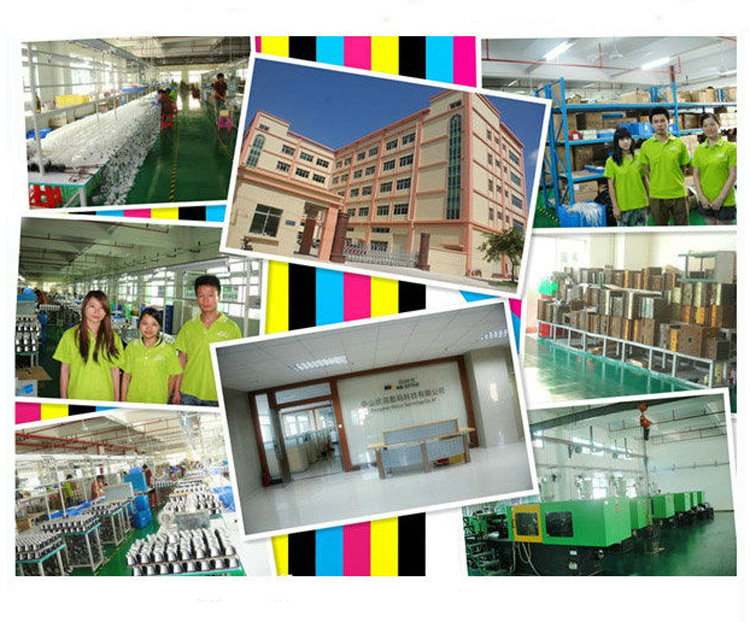

Certificates & Factory
