| Prod Model: |
GT04 |
| Max. Current: |
0.02A |
| Max. Voltage: |
12 VAC/DC |
| Electrical Life: |
Min 20, 000, 000 Cycles |
| Mechanical Life: |
Min 20, 000, 000 Cycles |
| Company Assurance System: |
ISO9001 & Ts16949 |
| Lever Type: |
No Lever |
| Storage Humidity: |
85%Rh Max |
| Pressing Type: |
Push-Button |
| Protection: |
Waterproof |
| Size: |
Normal Size |
| Environment: |
≧250℃﹤400℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Application: |
Computer Keyboards, Cash Registers, etc... |
| Brand: |
Zing Ear |
| Certification: |
cUL ENEC CQC |

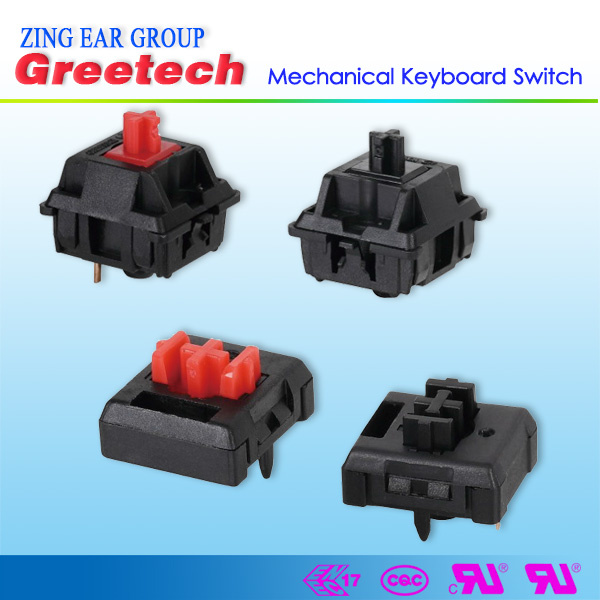

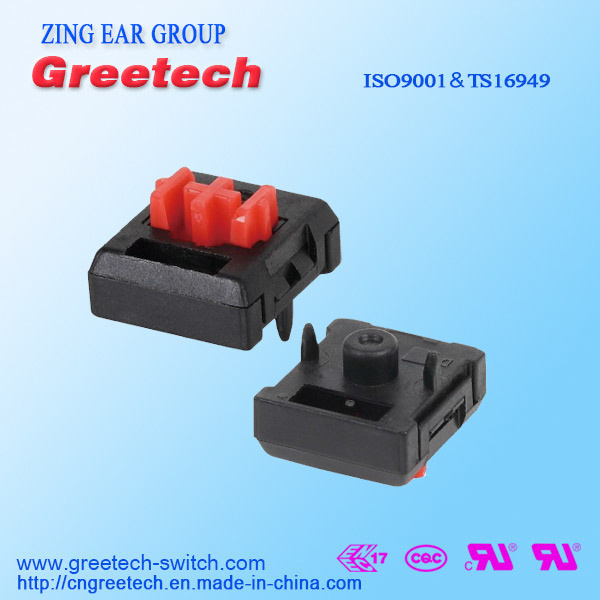

Product Description
Key Specifications/Special Features:
. ULtra-thin profile .0.31 inch (7.8mm) measuring from PCB(no keycap)
.Choice of feel :Linear , Soft tactile
.PCB pin
.Long Life to 20 Million operation cycles
. Insultion Resistance
Parameters:
| Rating | 12VDC /AC max . 10mA AC/DC |
| Insualtion Resistance(Initiative) | <100mΩ |
| Voltage Resistance | AC 100v (50-60Hz) 1 Minute |
| Bounce Time | 5 msec (operation speed at 400mm/sec) |
| Electrical life | over 20,000,000 cycles (Load) |
| Pre - travel | 1.25+0.5mm |
| Total - travel | 2.5+0.4mm |
| Mechanical life | over 20,000,000 cycles (Load) |
| Solder Ability | 260ºC+5ºC 3s+0.5s |
| Solder Heat Resistance | 260ºC+5ºC 3s+1s |
| Solder by Hand | Use a 30 watts soldering iron for about 3s at 350ºC while soldering |
| Storage Temperature | -40ºC-+80ºC |
| Storage Humidity | 85% RH Max |
Packaging & Delivery:
. Pack out : 1000pcs/ctn
. Gross Weight : about 2.5/kgs per master carton
. Production lead time : 2-4 weeks against order issue
. Sample lead time : 2-5days
Packaging Details:| NO. | Greetech Product | Inner Box | Shipper Carton | MPQ |
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) |
| (pcs) | (pcs) | (pcs) | (Days) |
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Application:
.Computer keyboards
.Cash registers
.Industrial equipment
.Man - Machine interfaces
Greetech Advantages:
. ISO9001 & TS16949 qualified
. Most products are produced & tested by automatics
. Automatic machines are designed and assembled by our own team
. Awarded as National Innovative Technology Company
. Strong R&D team, authorized over 30 patents
. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Business Partners:
Certifications:
FAQ:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What's the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5, What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What's the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.

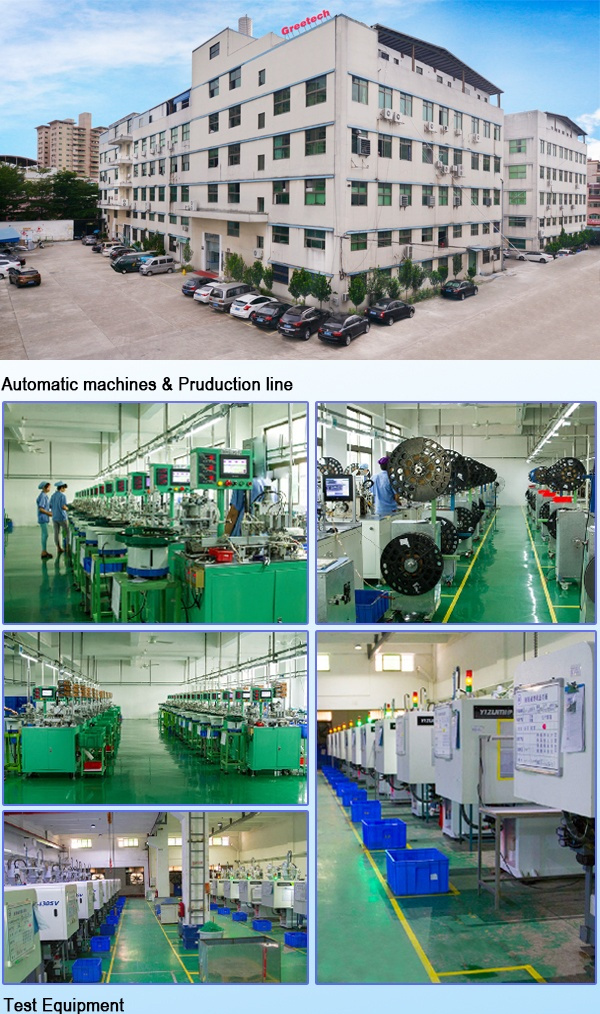

Huizhou Greetech Electronics Co., Ltd. Which focuses on R&D and manufacturing of various micro switches, auto switches, waterproof switches, air pressure switches, mechanical keyboard switches, precise auto parts, mobile phone connectors, and various kinds of contact modules and terminal components. The annual output of switches & connectors is about 160 millions pieces.
GREETECH belongs to Zing Ear Group, and started to run independently since 2007 year. Now we have about 500 staffs working at about 10, 000 factory buildings. Our main engineers have professional R&D experiences in the lines of switches & connectors for 8 to 20 years. All of our products are safety approved by UL, cUL, ENEC & CQC. Our products are certified with ISO9001 and ISO/TS16949 quality assurance system. We have our own team to research and develop automatic assembly & testing equipments. Presently over 80% of our products are produced & tested by automatic equipments, aiming to ensure the consistency of quality.
Nowadays, Greetech set up a complete one-stop R&D and Production System including: Products & process R&D, precise tooling, molding injection, stamping and automation equipment R&D, finish goods assembly & testing.
Dedication, Passion, Integrity, Embracing Change, Team Cooperation, Customer First are our core values.
Serving our customers well, Developing our people for growth, Return on capital and Contribution to Society are always our mission.
Contace us today for more information.
