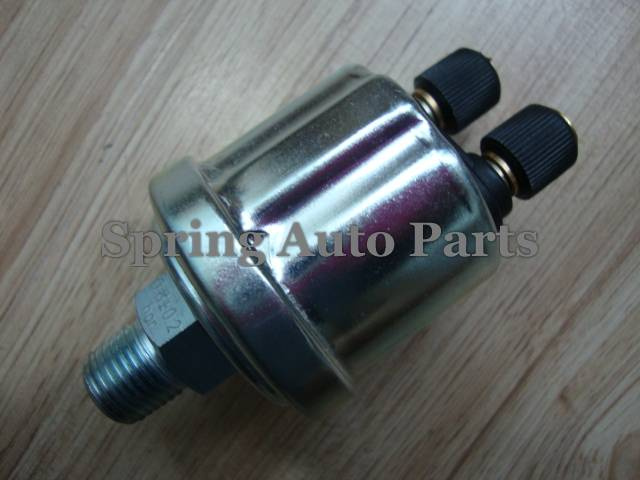

Mechanical Oil Pressure Sensor

Name: Mechanical Oil Pressure Sensor
Brand: all-electronics-online.com
SKU: 780033135
Availability: InStock
Rating: 4.6 (48 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Voltage:	6-24V
Output Signal:	10-184ohm
Thread:	NPT-1/8, NPT-1/4, M10, M10X
Alarm:	0.8bar 1.4bar
Warranty Period:	One Year

Product Description

Product Information

Operating voltage:6~24V
Conducting power: < 5W
Operating temperature: -25 ~120°C(120°C MAX 1H)
Measuring range: 0~5Bar or 0~10Bar
Alarm: 0.8Bar or 1.4Bar
Output signal: Standard resistance value: 10~184Ω

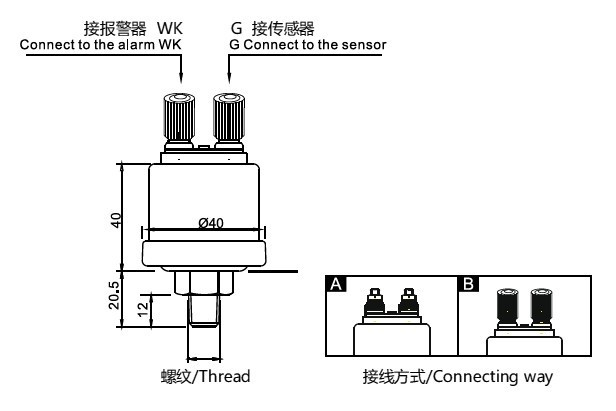

Thread fitting: NPT-1/4,NPT-1/8,M10,M10X1 or customized as requires.

Warranty Time: Within one year after shipment, except for improper installation and operations by user

Product Features

It combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature, etc.
It is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project, etc.
Protection rank: IP67

C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.

Our production scope:

Butt weld Fittings:

Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312

Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc

Forged fittings: THREADED/SOCKET WELD

ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83

ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT

Flanges: ASME/ANSI/API JIS, DIN, EN/BS

Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,

We are also offering our customer a total soluation for the whole piping material packages

Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.

For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
