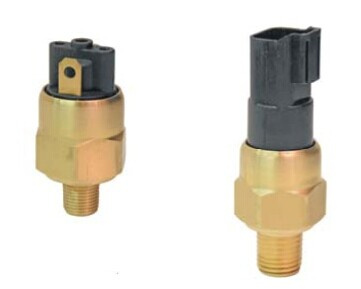

Mechanical Pressure Switch P Series

Mechanical Pressure Switch P Series
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: T/T,Western Union
Prod Model: P series
Adjustment Range: 2..150 Psi
Average Differential: Less Than 5% of Actuation Point
Repeatability: ±2% of Full Set Point Range at 21ºC
Temperature Range: Material Based
Maximum Overpressure: 350 Psi (24 Bar)
Switch Type: Creep Action
Protection: IP69 Except Exposed Terminal – IP00
Diaphragm Material: Buna-N(EPDM, Kapton®, HNBR, Viton®)
Housing Material: Brass (Other Options)
Mechanical Life: 1,000,000 Cycles
Type: Mechanical
Application: Industrial
Contact: No/Nc
Certification: RoHS

Product Description

Specifications

Adjustment range2..150 PSI (bar and MPa available)
Average differentialLess than 5% of Actuation Point
Repeatability±2% of full set point range at 21ºC Ambient Temperature
Temperature rangeBuna-N:-15°..230ºF(-26°..110ºC)
EPDM: -10°..250ºF (-23°..121ºC)
KAPTON ® : -40°..230ºF(-40°..110ºC)
VITON®: 0°..250ºF(-18°..121ºC)
(® Registered Trademark of DuPont)
HNBR: -36ºC to 293ºF(-38°..145ºC)
Maximum overpressure350 PSI (24 Bar)
Electrical100 VA Max Voltage 42 VDC | Gold contacts may be required for less than 12 VDC and 20 milliamp
Switch typeCreep Action
ProtectionIP69 except exposed terminal - IP00
Wetted materialDiaphragm: Buna-N (standard) | (Optional EPDM, KAPTON®, HNBR, VITON®)
Housing: Brass | (Optional Steel - Electroless Nickel Plated, 316 Stainless Steel or Zinc Plated Steel)
Mechanical life1,000,000 cycles
Weight0.15 LBS(0.07 kg)

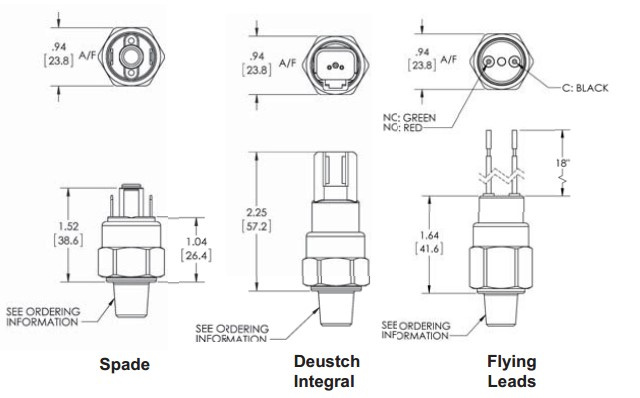

Electrical Connector

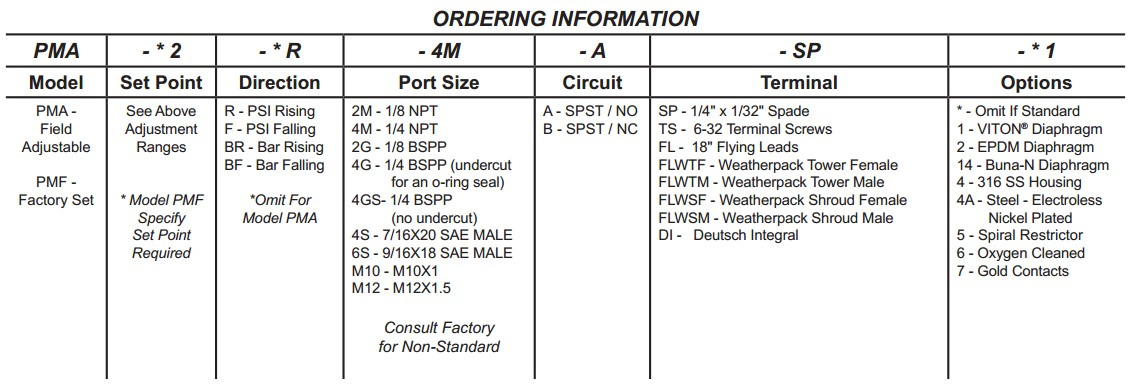

How to order
