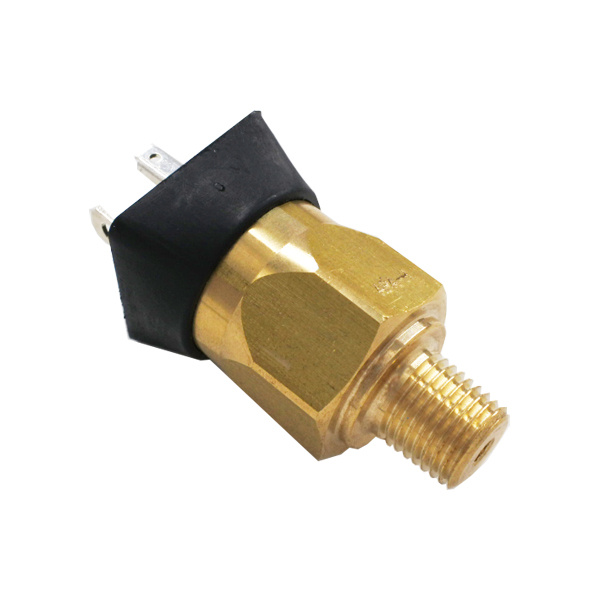

Mechanical Pressure Switch

Mechanical Pressure Switch
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: T/T,Western Union
Prod Model: A series
Adjustment Range: 3..150 Psi
Average Differential: 2..15 Psi
Accuracy: ±2% of Full Set Point Range at 21ºC
Repeatability: ±2% of Full Set Point Range at 21ºC
Maximum Overpressure: 350 Psi (24 Bar)
Switch Type: Snap Action
Mechanical Life: 1,000,000 Cycles
Diaphragm Material: Buna-N (EPDM, Kapton ®, Viton®)
Housing Material: Brass (Steel - Electroless Nickel Plated, 316L)
Type: Mechanical
Application: Industrial
Contact: No/Nc
Certification: RoHS

Product Description

Parameters

Adjustment range3..150 PSI (bar and MPa available)
Average differential2..15 PSI (bar and MPa available)
Accuracy±2% of full set point range at 21ºC
Repeatability±2% of full set point range at 21ºC Ambient Temperature
Temperature rangeBuna-N:-15°..230ºF(-26°..110ºC)
EPDM: -10°..250ºF (-23°..121ºC)
KAPTON ® : -40°..230ºF(-40°..110ºC)
VITON®: 0°..250ºF(-18°..121ºC)
Low temp Nitrile: -40°..230ºF(-40°..110ºC)
Maximum overpressure350 PSI (24 Bar)
ElectricalStandard: 5A, 125V/250VAC - U.L. Recognized*
Option - 7: 0.2A,60VDC - U.L. Recognized* | 5A,12/24VDC - U.L. Recognized*
Switch typeSnap Action
ProtectionExposed terminal - IP00
DIN HC - IP65 | Flying leads, M12, Deutsch Integral - IP69
Wetted materialDiaphragm: Buna-N (standard) | (Optional EPDM, KAPTON ®, VITON®)
Housing:   Brass | (Optional Steel - Electroless Nickel Plated Steel) | (Optional 316 Stainless Steel)
Mechanical life1,000,000 cycles
Weight0.15 LBS(0.07 kg)

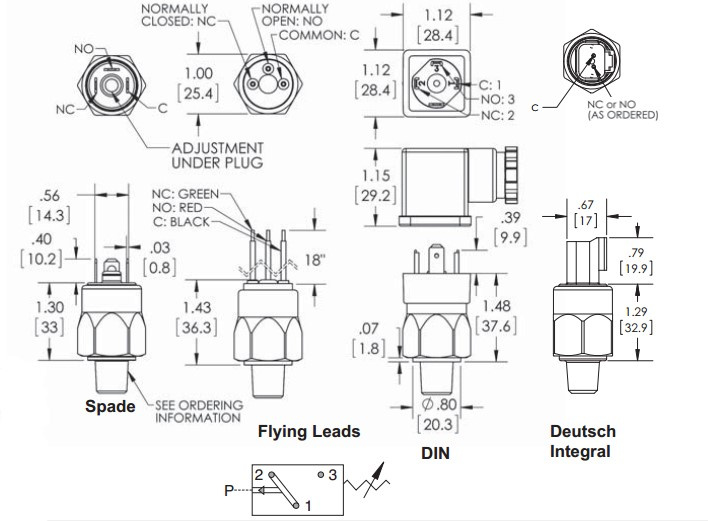

Electrical Connector

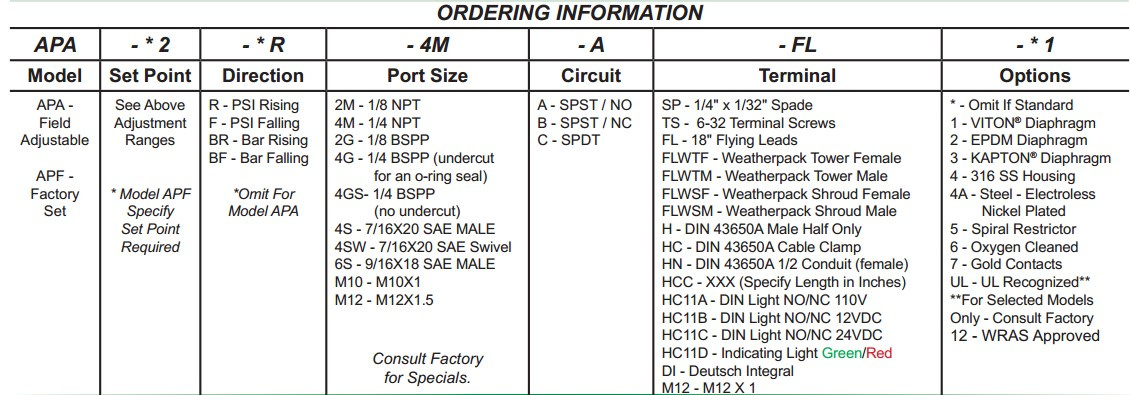

How to order
