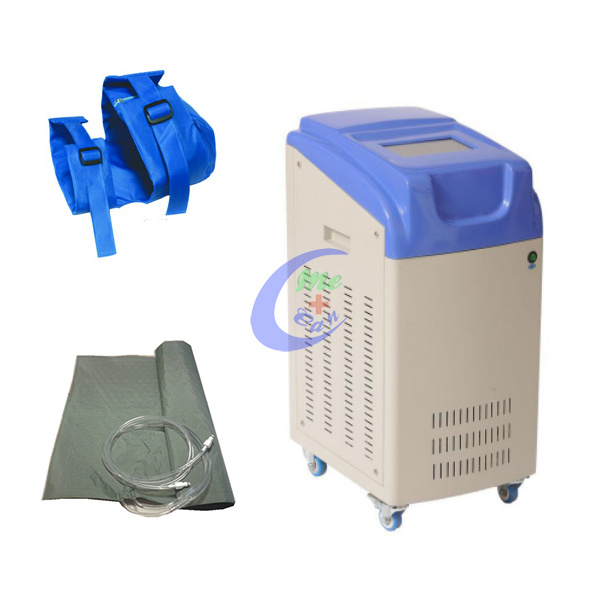

Medical Semiconductor Temperature Management System

Product Description

medical semiconductor temperature management system

Model: MC-TMS-I

Features

Temperature range from 4°C-42°C
Peltier technology: very precise temperature control
Connection available for 2 blankets or 1 cap 1 blanket or 2 caps
Tilt-resistant and robust castor wheel stand
Product self-checking diagnose: warning function
Low noise
Power: 500W
Power supply 100-240VAC, 500VA, 50Hz,
Working Noise: <48dB
Current leakage: < 300uA
Weight:30kgs
Dimension:430*330*700mm(L*W*H)

Description:

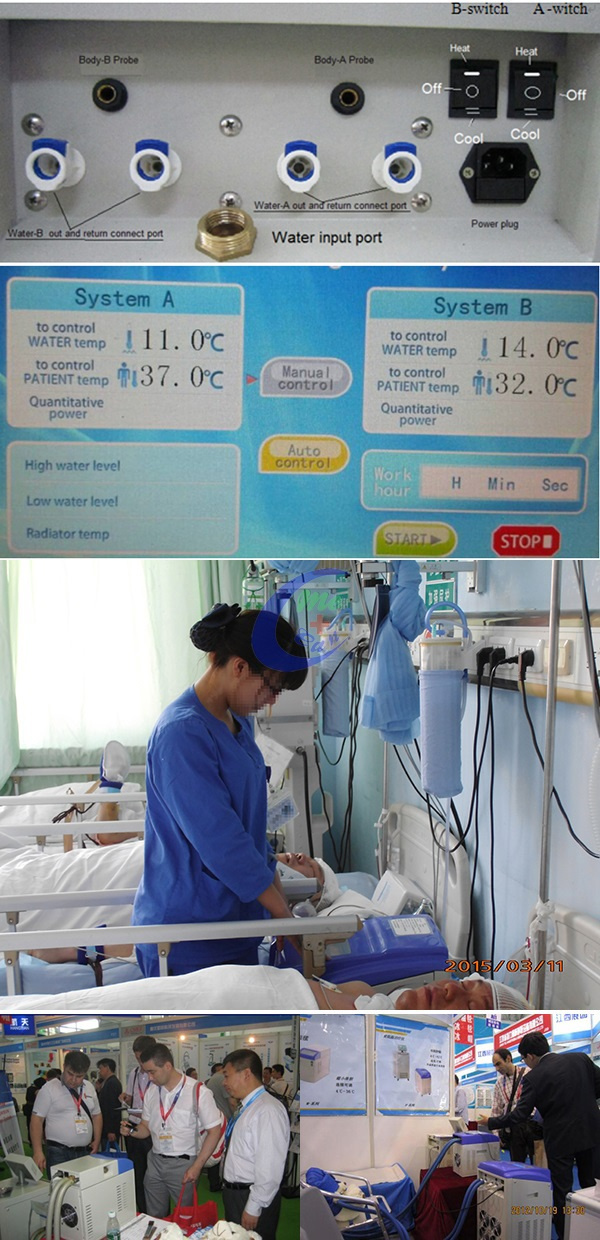

Our MC-TMS-I temperature management system adopts that micro-processer controlled Peltier Technology, to ensure smooth operation and accuracy, high control accuracy about ±0.1°C. It owns two sets of independent Peltier temperature control unit, it has safety high heating and refrigeration capability. Dual model function: manual operation and automatic operation. It has 7 inch LCD touch screen, human-machine interface and easy to operate. The MC-TMS-I system can automatically check the patient's temperature and very accurately reach target temperature. Small volume and light weight. The Peltier working voltage is DC24V. It is safe voltage. Any temperature range can control between 4 and 42°C, high safety for clinical. The water blanket under the patient enable a free operating area for the medical team and prevent upward emission of heat.

Fields of application: Anesthesia, surgery, intensive care medicine, neonatology, neurosurgery, emergency medicine, oncology, pediatrics, stroke units.


Accessories: Blanket, Cap, Temperature probes

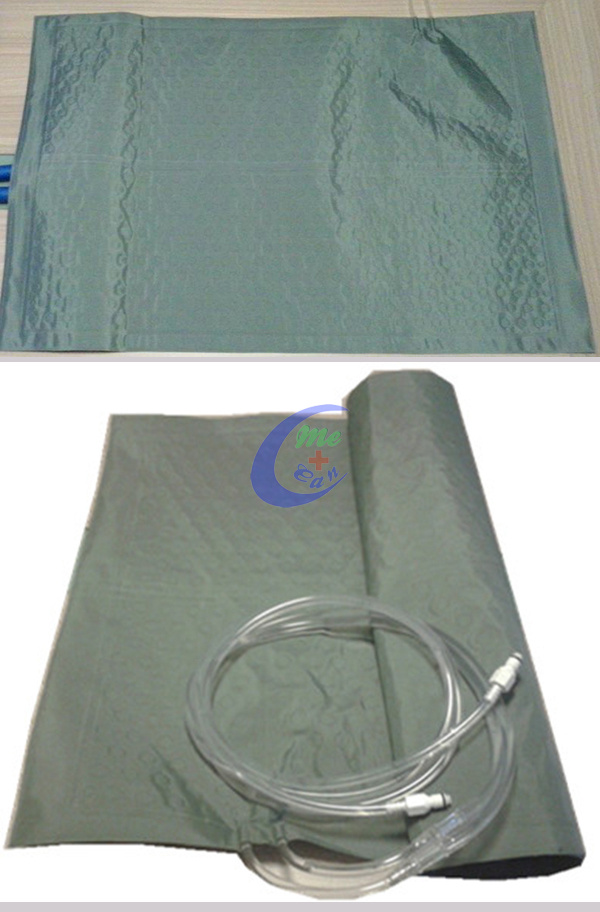

Blanket

The blanket adopts thermoplastic polyurethanes and temperature uniformity. Blanket surface adopts alveolate of unique design, soft, prevent bedscore. It is easy to curl ,clean and disinfect.


Put the blanket under the body. There is the same effect you wear clothes or not.


Adjustable soft cap

Adopt thermoplastic polyurethanes and temperature uniformity

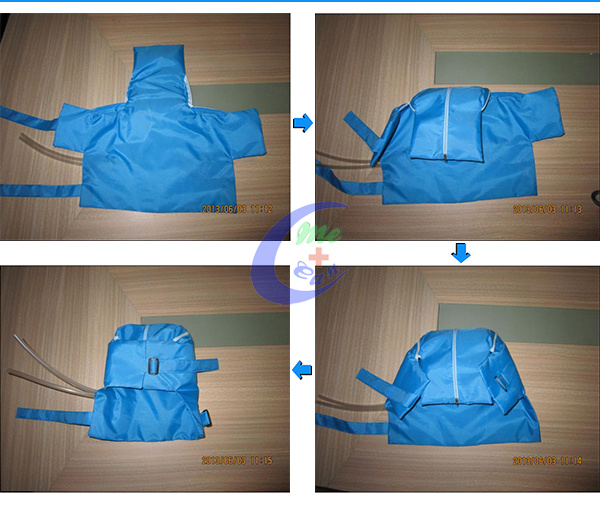

Use the steps description of the cap

Temperature probes

Based on the space temperature control technology, we communicate with foreign counterparts and keep the same pace with foreign levels. According to the international standard, we design and manufacture the first unit hyper-hypothermia system in domestic "dicaryon temperature management unit, dual model temperature management, dual continuous circulation output". We are the unique realization 0.1 high temperature management accuracy of hyper-hypothermia system in domestic. We possess two patents "adjustable soft cap" "semiconductor high effective temperature management model".

Since 1993, we researched and developed the first hard helmet cap, compressor type blanket and cap and semiconductor hyper-hypothermia system. In 2011, we researched and developed the smallest volume hyper-hypothermia system of the forth generation in domestic, products always be in leading level. We cooperate with hundreds of dealers, and establish partnership with big hospitals of provinces and cities in domestic. We often defeat strong opponent and win the biddings.


More details of temperature management system
