Medicine and Food Temperature Sensor
| Price: |
US $ 15/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
CX-WZ/WR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: |
-200-1800c |
| Fixing: |
Thread/Flange/None |
| Connection: |
Terminal Box/Compensation Cable/Plug |
| Cable/Plug Thermowell Material: |
Ss340/310/316,Inconel 600,Ceramic |
| Probe Length: |
Custom |
| Thermocouple Wire Element: |
Simplex/Duplex |
| Accuracy: |
I ,II,III |
| Certification: |
ISO |
| Type: |
Temperature Sensor |
| Usage: |
Air Purifier |
| Control Type: |
Digital |
| Display Type: |
LED |
| Material: |
Stainless Steel |
| Brand: |
Gn |
Product Description
Medicine and Food Temperature SensorIt was used in food and pharmaceutical industries, generally used in food processing industry, pharmaceutical processing industry.

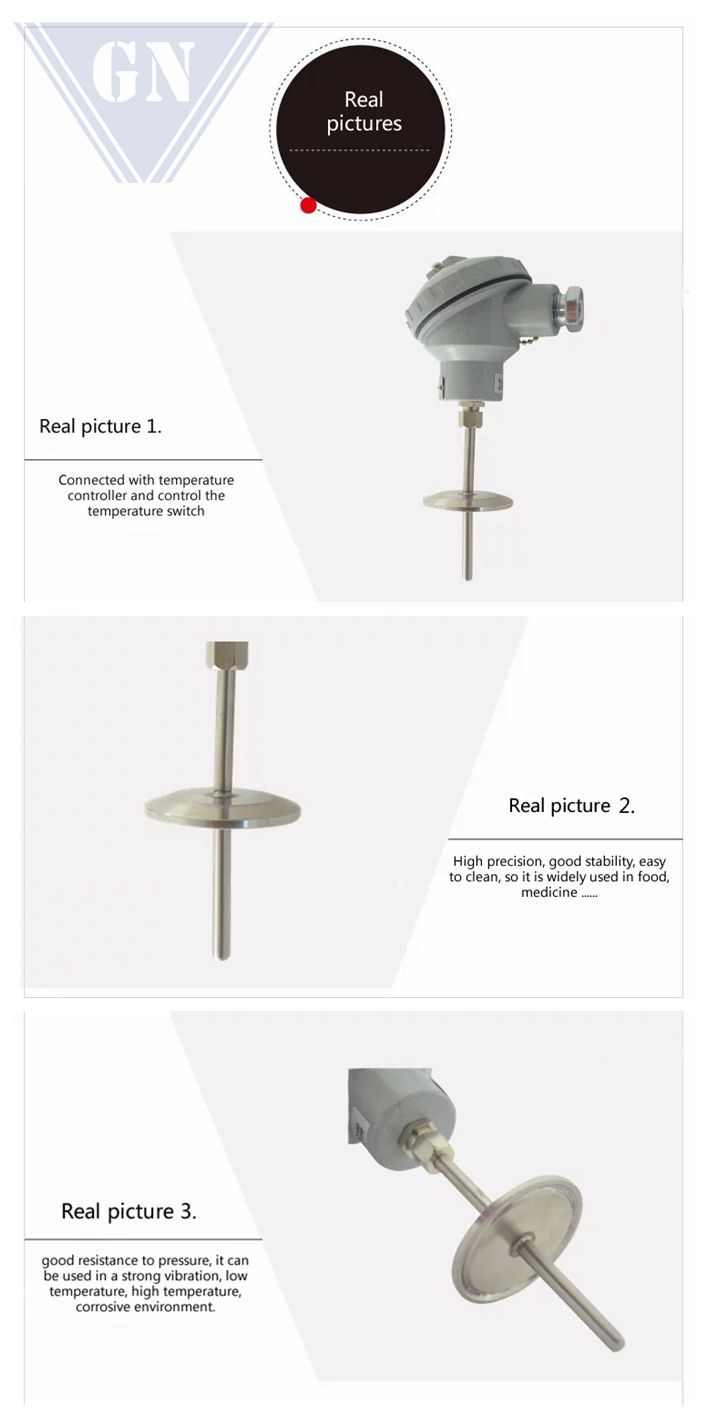

Product details:
How to choose?
1. Diameter and length: Can be customized as customer's requirements
2. Junction box: Water-proof type, splash-proof type, anti-explosion type, connector type, import type.
3. Fixed device: Flange/none/screw.
4. Temperature Range: 0-1800 centigrade.
5. Terminal blocks: Terminals box
WORKING PRINCIPLE:
Thermocouple is composed of temperature sensor and signal converter, signal converter is installed in the junction box of temperature sensor, temperature sensor produce resistance or potential effects made by the temperature affect, via transformation to create a differential voltage signal. The signal via the amplifier amplification, then through voltage and current transformation, output 4-20 mA current signal corresponding to the range.
Application:
Plastic injection molding machinery; Food processing equipment; Engine and turbine exhaust gas; Semiconductor processing; Heating treating and metals processing; Medical equipment; Aerospace industries; Packaging equipment; Test standards.

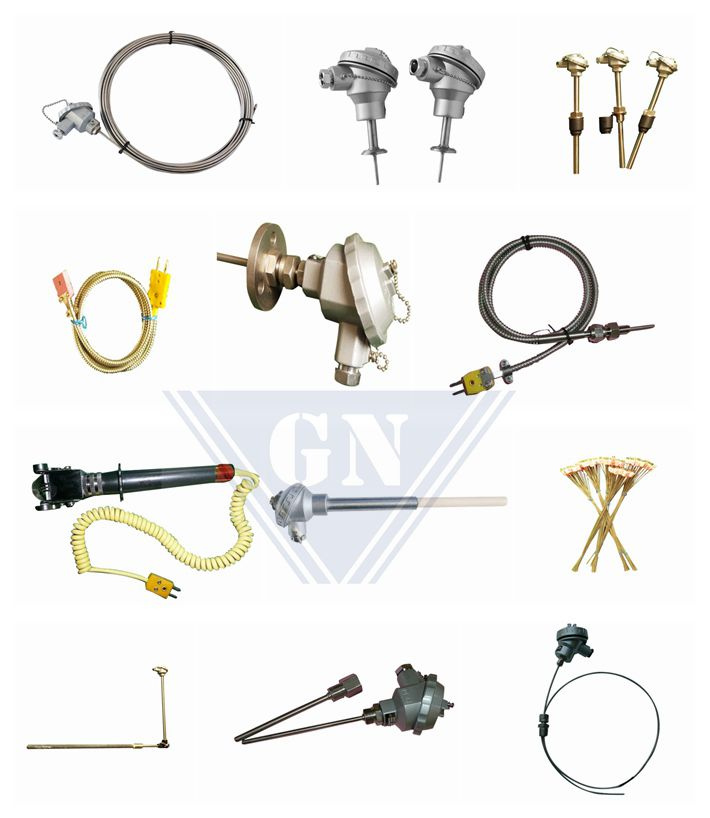

Product list:
After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Payment Terms:
1. Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4. Payment: T/T, Western Union, Paypal
|
Thermocouple & rtd |
|
Ref No. |
WR |
Temp |
|
Thermal element materials |
B: PtRh30-Pt6
R: PtRh13-Pt
S: PtRh10-Pt
N: NiCrSi-NiSi
K: NiCr-NiSi
E: NiCr-CuNi
J: Fe-CuNi
T: Cu-CuNi |
0~1600C
0~1300C
0~1300C
0~1000C
0~900C
0~600C
0~500C
0~350C |
|
Ref No. |
WZP |
Temp |
|
|
PT100
PT1000
CU50 |
-200~+650C
-200~+650C
-200~+650C |
|
Pairs quantity of sensor wire |
Simplex
Duplex |
|
Ways of Mounting & Fixing |
1: without fixing device
2: fixed thread
3: movable flange
4: fixed flange
5: right-angle movable flange
6: fixed thread in wimble shape protection tube |
|
Types of connections box |
2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55) |
|
Types of sensor end |
G: variable section
K: sheathed elements
T: flexible sheathed elements |
|
Diameter of protection tube |
0: ¢16
1: ¢20
2: ¢16 high aluminum material
3: ¢20 high aluminum material |
|
Measuring range |
0~1600 degree Celsius |
|
Shipping |
By air, sea, express |
|
Sample time |
2~7 days |
|
Manufacture time |
7~30 days depending on order quantity |
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
