| Prod Model: |
WP421A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Type: |
Gauge Pressure(G), Absolute Pressure(a), Sealed Pr |
| Process Connection: |
G1/2,M20*1.5,1/4NPT,1/2NPT, Customized |
| Electrical Connector: |
Terminal Block, Cable |
| Output Signal: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
| Compensation Range: |
: 0~150 Celsius, 250 Celsius, 350 Celsius |
| Power Supply: |
24V DC |
| Name: |
Medium-High Temperature Pressure Transmitter |
| Measuring Medium: |
Gas, Oil, Liquids, Steam |
| Pressure Range: |
0_(-0.2kpa)~100kpa, 0-0.2kpa~100MPa. |
Product Description

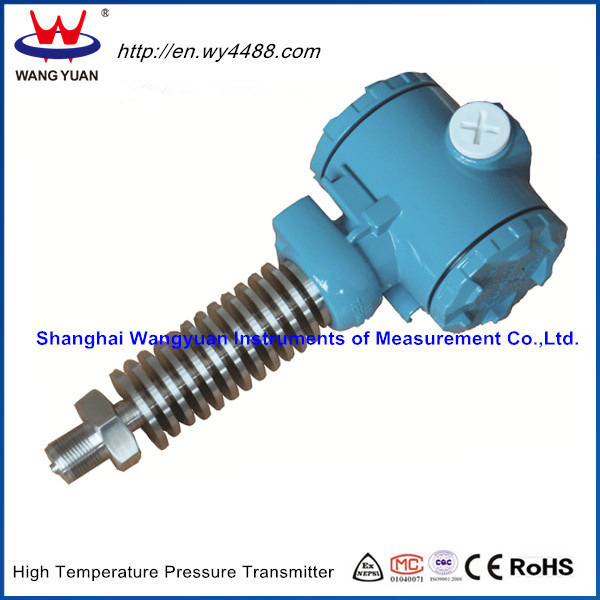

Medium-high temperature Pressure Transmitters
Model: WP421A
ApplicationThis high temperature pressure transmitter can be used to measure & control the pressure of oil, gas, liquids in the fields:
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
Petroleum, Chemical industry
Ocean and Oil & Gas
DescriptionWP421A medium-high temperature pressure transmitter with adopt advanced imported sensor component and anti-high temperature sensitive element. This pressure transmitter's probe can work stably for a long time under 350Celsius operation environment. Laser welding technology is used between sensor and stainless steel house, which melts the 2 parts into one, and ensures pressure transmitter's safety usage at high temperature state. Between pressure core parts of pressure transmitter and circuit board, there is a PTFE(Teflon) gasket for heat insulation.
FeaturesVarious signal outputs
HART protocol is available
With Heatsink construct
High precision 0.1%FS, 0.2%FS, 0.5%FS
Compact dimension design, strong construct
Operating temperature: 150Celsius, 250Celsius, 350Celsius
Light weight, easy to install, maintenance-free
100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
Explosion-proof type: Ex iaIICT6, Ex dIIBT4
SpecificationPressure range: 0--0.2kPa~100kPa, 0-0.2kPa~100MPa.
Pressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Electrical connection: Cable, Terminal block
Compensation range: 0~150 Celsius, 250 Celsius, 350 Celsius
Operation temperature: Probe: 150 Celsius, 250 Celsius, 350 Celsius, Circuit board: -30~70 Celsius.
Overload pressure: 150%FS
Pressure connection: M20*1.5, G1/2,
Accuracy: 0.5%FS, 1.0 %FS,
Wetted part: Stainless steel 304 or 316L
Ordering guide: WP421A-1.0MPa-M20*1.5-Terminal block-4-20mA-24VDC-0.5%FS
